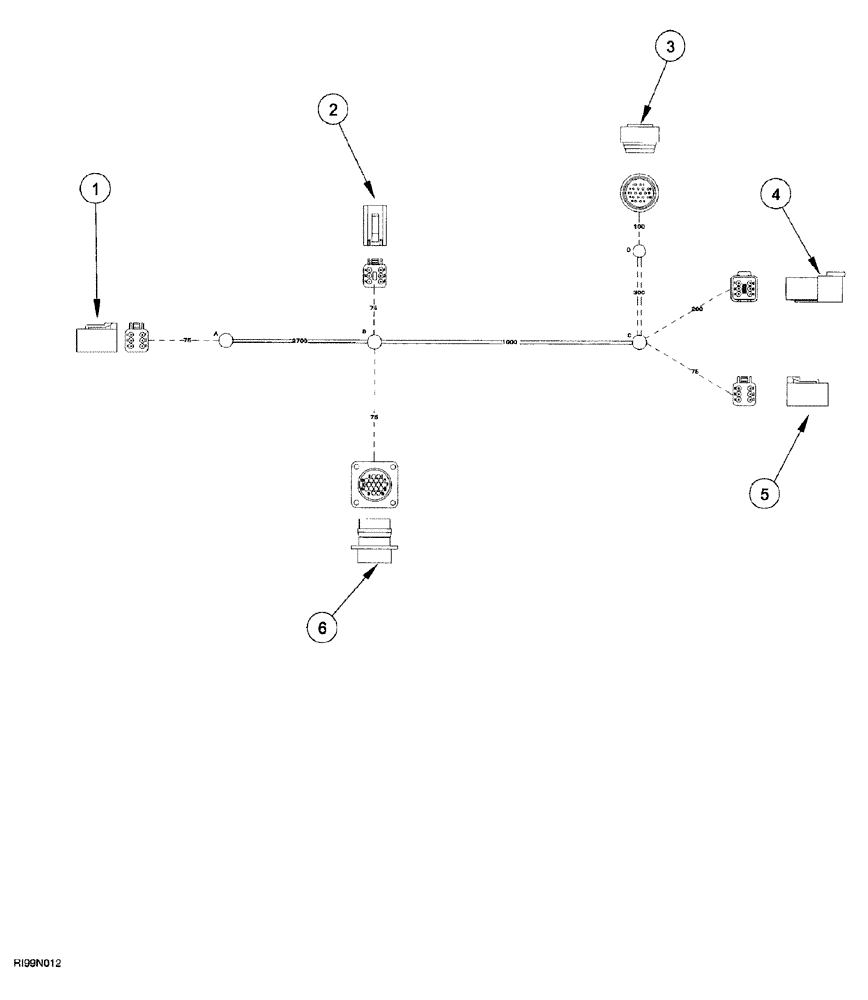

Запчасти Case IH AFS (02-54) - HARNESS - MOISTURE SENSOR EXTENSION (55) - ELECTRICAL SYSTEMS

377032A1

HARNESS

bypass moisture sensor extension, 6 connectors, Includes Ref: 1-6

1шт.

Required when relocating moisture sensor from inclined delivery auger to bypass.

1шт.

1

225351C1

ELEC CONNECTOR,Female, 6 Pin

electrical, 6 pin, to bypass

1шт.

2

225351C1

ELEC CONNECTOR,Female, 6 Pin

electrical, 6 pin, to moisture sensor

1шт.

3

225135C1

CONNECTOR, ELEC

CONNECTOR 14 pin, to moisture sensor

1шт.

4

225350C1

ELEC CONNECTOR,Male, 6 Pin

electrical, type LY, to moisture sensor

1шт.

5

225351C1

ELEC CONNECTOR,Female, 6 Pin

electrical, 6 pin, to bypass

1шт.

6

225418C1

ELEC CONNECTOR,Female, 14 Pin

14 pin, to moisture sensor

1шт.
