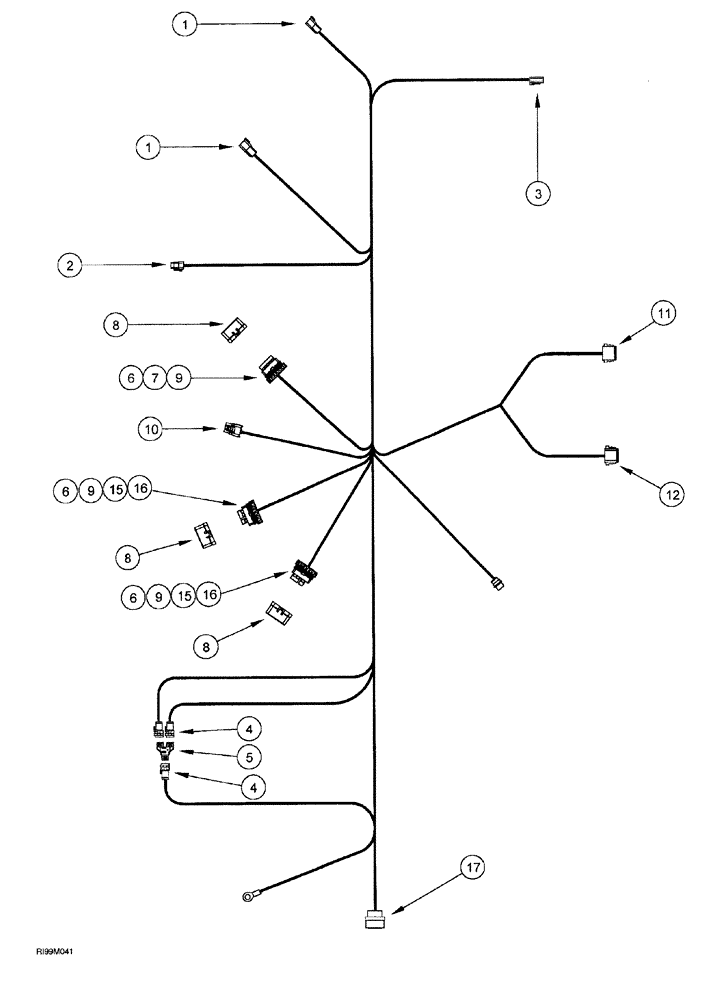

Запчасти Case IH AFS (02-37) - HARNESS - YIELD MONITOR INTERFACE UNIT - EXTERIOR (2100 & 2300 WITH 2000 MONITOR SYSTEM) (55) - ELECTRICAL SYSTEMS

365513A1

WIRE HARNESS

main yield monitor interface unit exterior, Includes Ref: 1-17

1шт.

1

225350C1

ELEC CONNECTOR,Male, 6 Pin

electrical, type LY

2шт.

2

225351C1

ELEC CONNECTOR,Female, 6 Pin

electrical, 6 pin

1шт.

3

239451A1

MULTIPOLE CONNECTOR,Female, 4 Pin

4-cav plug DT series

1шт.

4

298496A1

ELEC CONNECTOR,4 Pin

plug, 4 Pin

3шт.

5

298495A1

ELEC CONNECTOR,4 Pin

electrical

1шт.

6

182083A1

CONNECTOR, ELEC,Female, 6 Cavities

CONNECTOR electrical

3шт.

7

187309A1

BAR

buss, 6 terminal

1шт.

8

187308A1

CAP

splice connector

3шт.

9

182084A1

CONNECTOR, ELEC,Locking, Blue

CONNECTOR lock

3шт.

10

245484C1

ELEC CONNECTOR,3 Pin

plug 3 Pin

1шт.

11

225389C1

CONNECTOR, ELEC

CONNECTOR electrical

1шт.

12

225402C1

CONNECTOR, ELEC

CONNECTOR electrical

1шт.

15

194976A1

BAR

buss, 3 terminal

2шт.

16

356509A1

TERMINAL STRIP,2 Pin

BAR buss, 2 terminal

1шт.

17

321699A1

CONNECTOR, ELEC

CONNECTOR electrical

1шт.
