Запчасти Case IH AFS (02-34) - YIELD MONITOR INTERFACE UNIT PACKAGE (55) - ELECTRICAL SYSTEMS

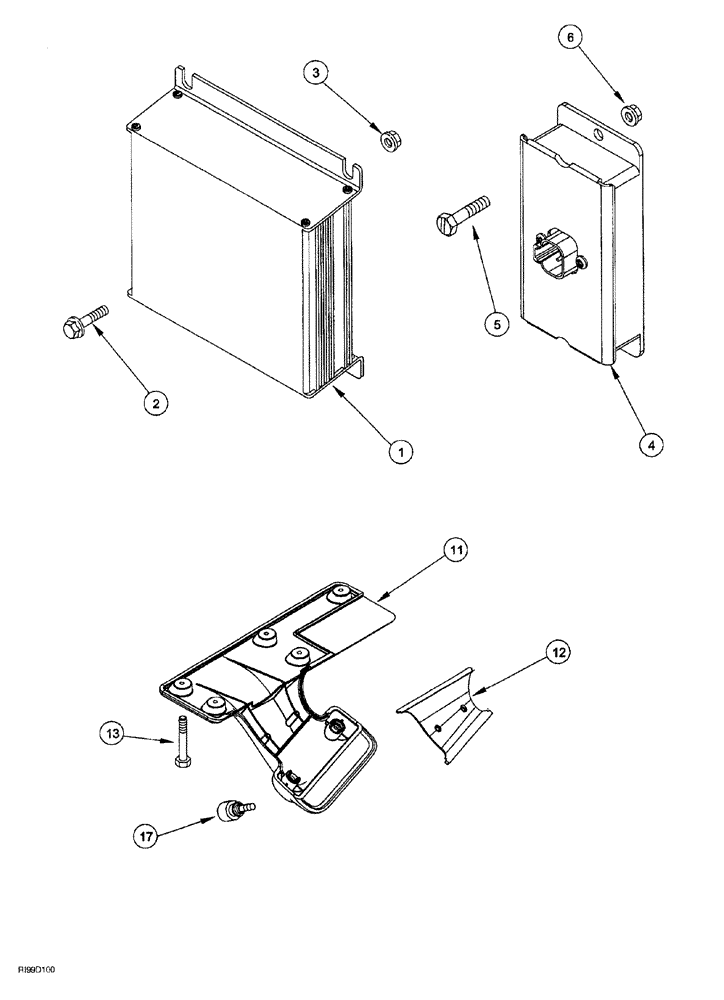

Схема запчастей Case IH AFS - (02-34) - YIELD MONITOR INTERFACE UNIT PACKAGE (55) - ELECTRICAL SYSTEMS
17
4
3
1
2
12
11
6
5
13

Артикул

Название

Примечание

Количество

336469A2

PACKAGE

Yield Monitor Interface Unit, Includes Ref: 1-24

1шт.

1

348084A2

CONTROL

MONITOR Yield Monitor Interface Unit, without software

1шт.

1

86976394R

REMAN ELECT CONTROL

AFS ADVANCED FARMING SYSTEM (NORTH AMERICA), MONITOR Yield Monitor Interface Unit, without software (5/99-), Reman for New PN 348084A2

1шт.

1

86976394C

CORE-ELECTRONIC CONT

Return Number

1шт.

2

409-748

BOLT,Hex Flg, 1/4" - 20 x 1/2", Spcl

3шт.

3

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

3шт.

4

284638A1

CONNECTOR, ELEC

CONNECTOR terminator

1шт.

5

363-31012

SCREW,Hex Wash Hd, #10-24 x 3/4"

machine, hex washer head, No. 10 NC x 3/4 inch

2шт.

6

231-51409

SERRATED NUT,Flg, USR, #10-24

2шт.

7

318573A2

HARNESS

main YMIU exterior, prior to Model year 2000, see Figure 02-36

1шт.

7

365513A1

WIRE HARNESS

main yield monitor interface unit exterior, model year 2000, see figure 02-37A

1шт.

8

318568A1

HARNESS

yield monitor cab display, prior to model year 2000, see Figure 02-38

1шт.

8

365512A1

WIRE HARNESS

yield monitor cab display, model year 2000, see Figure 02-39A

1шт.

9

105849A1

RELAY

continuous duty, 20 amp., not shown

1шт.

10

121412A1

FUSE,10A, Mini, Red

Not shown

2шт.

11

351004A1

SUPPORT

Includes: Ref. 17

1шт.

12

327387A1

COVER

display mounting

1шт.

13

276-14520

SELF-TAP SCREW,Hex Hd, #10 x 1 1/4"

hex head, No. 10 x 1-1/4

5шт.

14

131-893

CLIP,#10 - 24

No. 10, not shown

2шт.

15

231-51409

SERRATED NUT,Flg, USR, #10-24

Not Shown

3шт.

16

495-31022

WASHER,#10

Not shown

5шт.

17

319731A1

SCREW

retractable, M5

2шт.

18

1327506C1

SELF-TAP SCREW,Cross Pan Hd, M4.8 x 19mm, Coated

Not Shown

2шт.

19

318575A1

WIRE HARNESS

yield sensor, not shown

1шт.

20

473321C1

CABLE TIE,8" OAL x 0.098" W

CABLE STRAP Not Shown

1шт.

21

232801A1

DOOR SEAL

door, 1016 mm (40 inch) long, not shown

1шт.

22

6-5951

MANUAL, OPERATORS

Universal Display and Universal Display Plus Yield Monitor, order direct from DMC, not shown

1шт.

23

7-88591

INSTRUCTION

CARD quick reference, AFS Display operation, order direct from DMC, not shown

1шт.

24

7-89241

INSTRUCTION

yield monitor interface installation, 2000 series combines, order direct from DMC, not shown

1шт.

Выбрано товаров: 29
