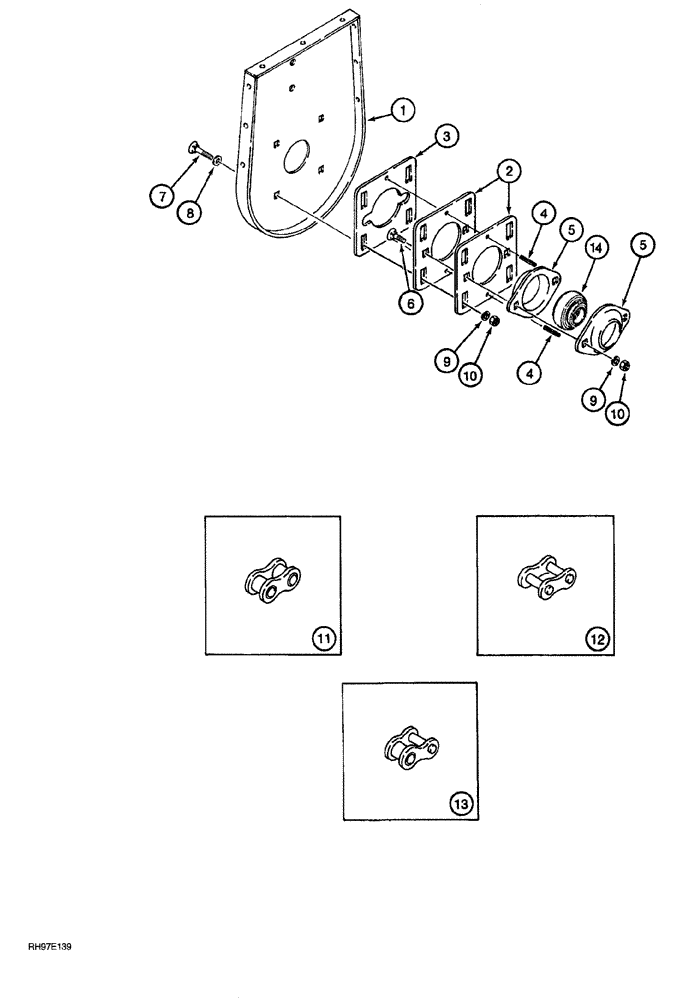

Запчасти Case IH AFS (02-30) - GRAIN ELEVATOR - OUTER BOOT AND ELEVATOR SLIDE ADJUSTER (2188, 2388 COMBINES) (55) - ELECTRICAL SYSTEMS

1

223237A1

SIDE PLATE

boot, outer

1шт.

224768A1

ADJUSTING PLATE

KIT elevator slide adjuster, Includes Ref: 2-10

1шт.

252686A1

ADJUSTING PLATE

ASSEMBLY elevator adjuster, Includes Ref: 2-4

1шт.

2

224769A1

SUPPORT

slide adjuster, outer

2шт.

3

224770A1

SUPPORT

slide adjuster, inner

1шт.

4

38-11608

LOCK PIN,1/4" x 1/2", Slotted

2шт.

5

599382R1

FLANGED BEARING

bearing, retaining

2шт.

6

434-620

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

2шт.

7

434-620

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

4шт.

8

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Flat, (13/32 x 13/16 x 1/16")

4шт.

9

492-11038

LOCK WASHER,3/8"

6шт.

10

425-106

NUT,3/8"-16, Cl 5

6шт.

11

241-1115

LINK,Chain, 15.87mm Pitch

roller, single pitch, No. 50, 5/8 inch pitch, use to extend the elevator drive chain, if required

3шт.

12

241-1315

LINK, CONNECTING

connecting, single pitch, No. 50, 5/8 inch pitch, use to extend the elevator drive chain, if required

3шт.

13

241-18113

LINK,41.4mm Pitch

offset, single pitch, No. C550, 1-5/8 inch pitch, if required

2шт.

14

473093R92

BEARING ASSY,34.92mm ID x 72mm OD x 19mm W

ball

1шт.
