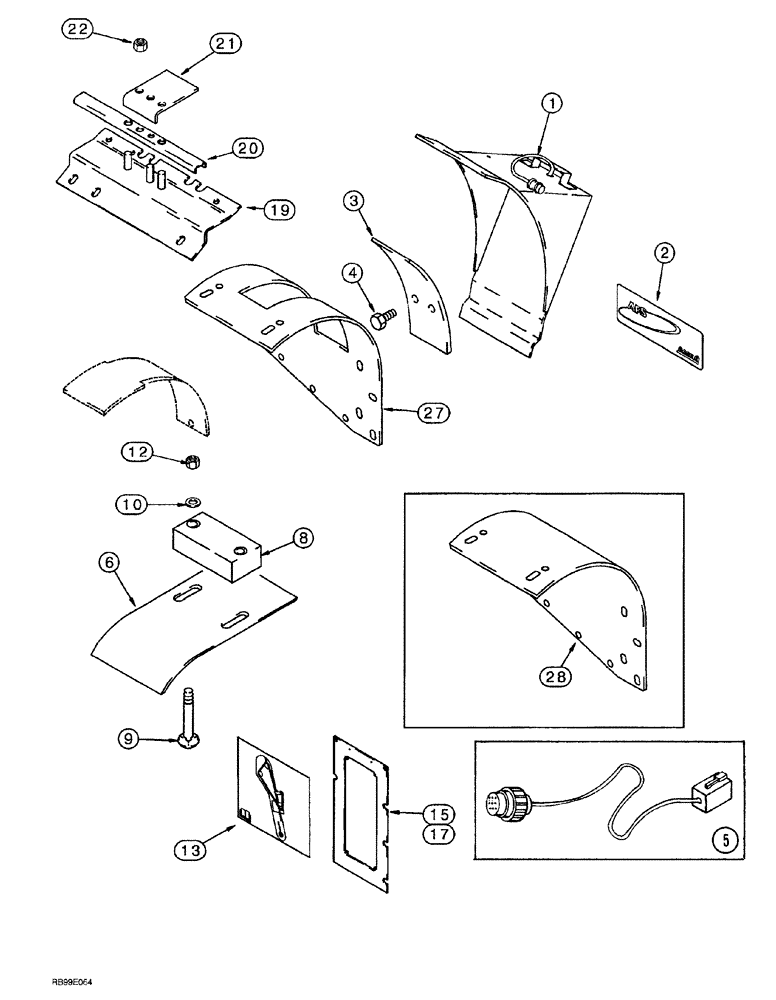

Запчасти Case IH AFS (02-24) - GRAIN FLOW SENSOR MOUNTING (1644, 1666, 1688 AND 2100 SERIES COMBINES PRIOR TO 1996) (55) - ELECTRICAL SYSTEMS

224597A3

SENSOR

ASSEMBLY grain flow, Includes Ref: 1-4

1шт.

1

NSS

NOT SOLD SEPARAT

COVER includes grain flow sensor, not available as a separate component, order 224597A3 sensor assembly

1шт.

2

NSS

NOT SOLD SEPARAT

DECAL AFS/Case lH

1шт.

282249A1

PACKAGE

coated impact plate, Includes Ref: 3, 4

1шт.

3

249820A1

LARGE PLATE

PLATE, LARGE yield monitor impact

1шт.

4

61-3258

HEX SOC SCREW,1/4"-20 x 1/2"

BOLT hex socket, 1/4 NC x 1/2 inch

2шт.

5

234483A1

CABLE

flow sensor, 1600 series combines, not shown

1шт.

5

224717A1

HARNESS

CABLE flow sensor, 2100 series combines, not shown

1шт.

5

318575A1

WIRE HARNESS

yield sensor, for use with AFS Display System

1шт.

5a

362666R1

CLIP

CLAMP retaining, flow sensor cable, not shown

2шт.

6

224602A1

LARGE PLATE

PLATE, LARGE DEFLECTOR stainless steel, 1644, 1666, 2144, 2166 combines

1шт.

6

224603A1

LARGE PLATE

PLATE, LARGE DEFLECTOR stainless steel, 1688, 2188 combines

1шт.

7

224606A1

SHEET

TEMPLATE drill, deflector bolt holes, 1/2 inch, not shown

1шт.

8

224605A1

BLOCK

SUPPORT deflector mounting

1шт.

9

433-844

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2 3/4", Gr 5

2шт.

10

495-71053

WASHER,13.49mm ID x 44.45mm OD x 2.54mm Thk

flat, 17/32 x 1-3/4 x 3/32 inch

2шт.

12

231-1448

NUT,1/2"-13, GB

hex, self-locking, NC

2шт.

13

REF

INSTRUCTION

DECAL elevator delivery GPS/AFS, See Figure 2-44, Ref. 5 and 6, for correct decal

1шт.

224586A1

PACKAGE

flow sensor cutout, 1644, 1666, 2144, and 2166 combines with inclined delivery or horizontal, Includes Ref: 15

1шт.

15

236013A1

GUIDE

flow sensor template

1шт.

224981A1

PACKAGE

flow sensor cutout, 1688, 2188 combines, Includes Ref: 17

1шт.

17

236014A1

GUIDE

flow sensor template

1шт.

19

198581A2

STIFFENER

ANCHOR chain tightener, conveyer, with three studs

1шт.

20

1317474C2

CHANNEL

lock, tightener

1шт.

21

197877A1

SUPPORT

hole cover, front elevator head, combines with inclined delivery or horizontal delivery

1шт.

22

231-4116

NUT,3/8"-16, GB

hex, self-locking, 3/8 inch NC

3шт.

27

238647A1

COVER

head, front, with cutout, 2144, and 2166 combines with inclined delivery

1шт.

27

238646A1

COVER

head, front, with cutout, 1688, 2188 combines with inclined delivery

1шт.

28

1321128C1

COVER

head, front, without cutout, 1644, 1666, 2144, and 2166 combines with horizontal delivery

1шт.

These parts are not available in an AFS kit. They are factory installed on the combines and must be purchased separately. Refer to your combine catalog for further information.

1шт.
