Запчасти Case IH AFS (02-19) - GROUND SPEED SENSOR (55) - ELECTRICAL SYSTEMS

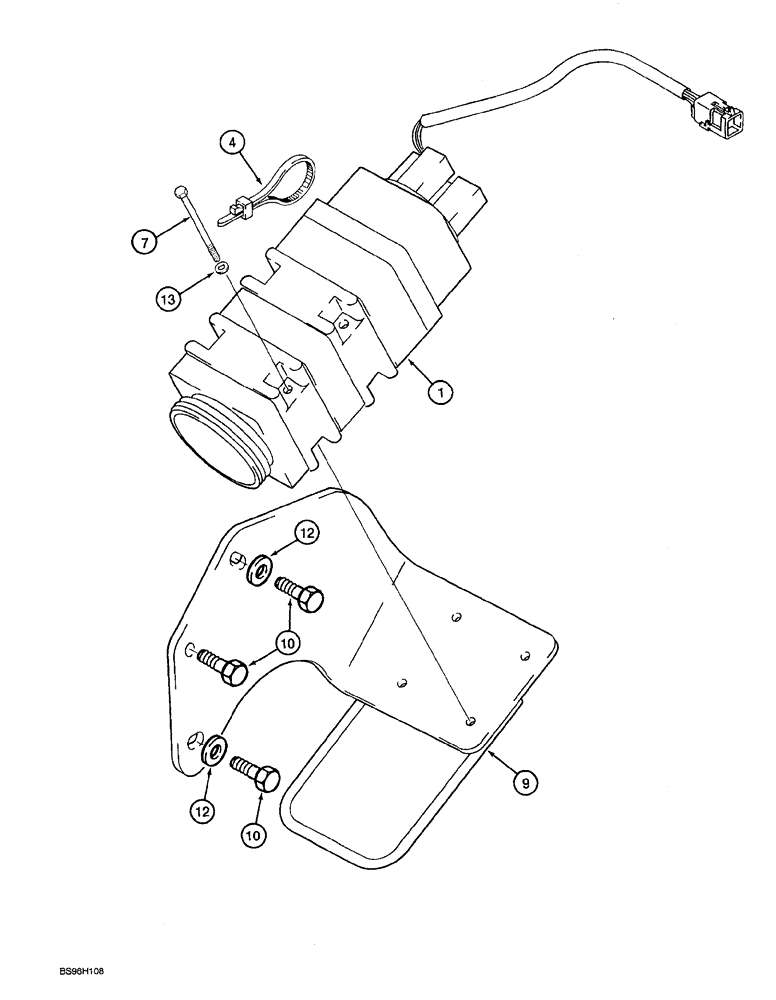

Схема запчастей Case IH AFS - (02-19) - GROUND SPEED SENSOR (55) - ELECTRICAL SYSTEMS
10
4
12
10
1
13
12
9
7

Артикул

Название

Примечание

Количество

1

228760A1

RADAR

SENSOR speed, ground, new

1шт.

4

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch, nylon

3шт.

7

814-6100

BOLT,Hex, M6 x 1 x 100mm, Cl 8.8

4шт.

9

248550A1

SUPPORT

mounting, speed sensor

1шт.

10

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

2шт.

13

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16")

4шт.

14

825-5146

SERRATED NUT,M6, Flg Ser

4шт.

12

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

Выбрано товаров: 8
