Запчасти Case IH AFS (02-18) - RADAR ADAPER AND GROUND SPEED SENSOR (55) - ELECTRICAL SYSTEMS

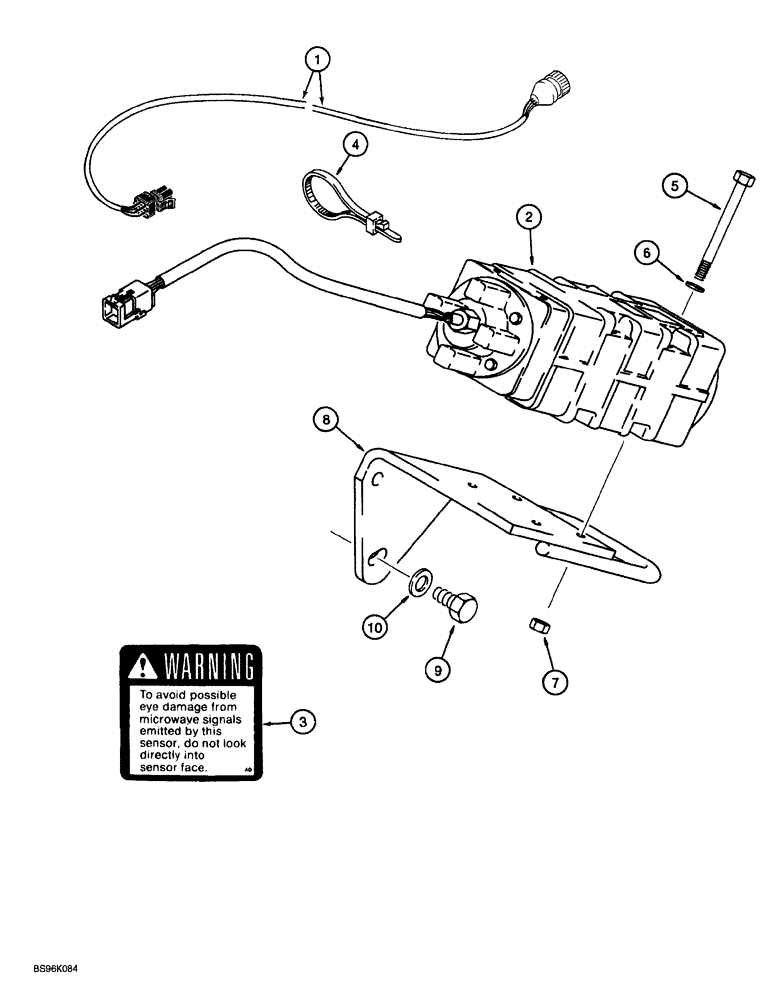

Схема запчастей Case IH AFS - (02-18) - RADAR ADAPER AND GROUND SPEED SENSOR (55) - ELECTRICAL SYSTEMS
3
9
7
5
1
10
8
2
6
4

Артикул

Название

Примечание

Количество

1

246533A1

CABLE

radar adapter, attaches to cab distribution cable

1шт.

2

1935112C1

SPEED LIMITER

SENSOR ground speed, remanufactured, North America only, component parts shown on this page do not apply to the remanufactured assembly

1шт.

2

87733890R

REMAN-SENSOR

AFS ADVANCED FARMING SYSTEM (NORTH AMERICA), SENSOR - ground speed (5/99-), Reman for New PN 1935112C1

1шт.

2

87733890C

CORE-SENSOR

Return Number

1шт.

2

1935111C1

CORE-MONITOR

RETURN NUMBER ground speed sensor, use this part number to return sensor core for credit when using a remanufactured assembly

1шт.

2

228760A1

RADAR

SENSOR speed, ground, new, Includes Ref: 3

1шт.

3

A187743

WARNING DECAL

warning, to avoid possible eye damage from microwave signals emitted by this sensor

1шт.

4

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch, nylon

3шт.

5

814-6100

BOLT,Hex, M6 x 1 x 100mm, Cl 8.8

4шт.

6

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16")

4шт.

7

825-5146

SERRATED NUT,M6, Flg Ser

4шт.

8

1960847C2

SUPPORT

mounting, speed sensor

1шт.

9

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

2шт.

10

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

Выбрано товаров: 14
