Запчасти Case IH AFS (02-16) - HEADER HEIGHT POTENTIOMETER AND MOUNTING (1644, 1666, 1688, 2100 AND 2300 SERIES COMBINES) (55) - ELECTRICAL SYSTEMS

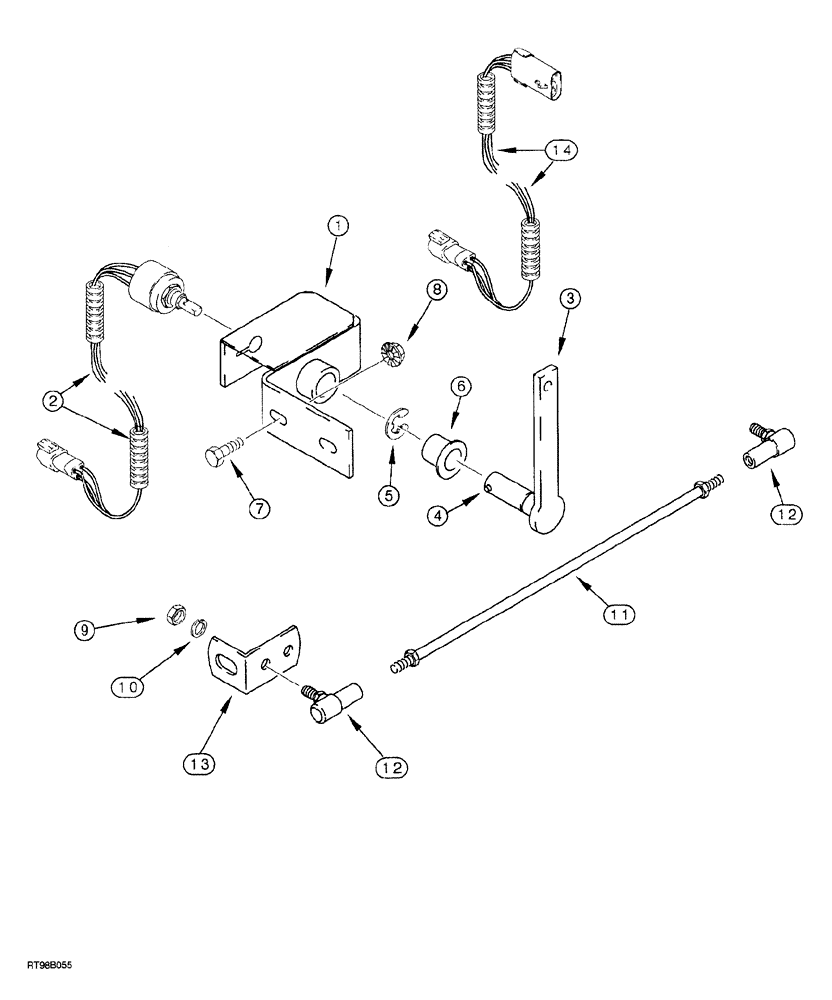

Схема запчастей Case IH AFS - (02-16) - HEADER HEIGHT POTENTIOMETER AND MOUNTING (1644, 1666, 1688, 2100 AND 2300 SERIES COMBINES) (55) - ELECTRICAL SYSTEMS
12
3
12
11
5
4
8
10
13
1
14
7
2
6
9

Артикул

Название

Примечание

Количество

239136A1

POTENTIOMETER

Header Height, Right-Hand, Includes Ref: 1-6

1шт.

87315265R

REMAN-SENSOR

AFS ADVANCED FARMING SYSTEM (NORTH AMERICA), Header Height, Right-Hand (5/99-), Reman for New PN 239136A1

1шт.

87315265C

CORE-SENSOR

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

SUPPORT potentiometer

1шт.

2

NSS

NOT SOLD SEPARAT

POTENTIOMETER single, 1K, header height

1шт.

3

NSS

NOT SOLD SEPARAT

LEVER potentiometer

1шт.

4

NSS

NOT SOLD SEPARAT

SCREW set, hex socket, cup point, 4 - 0.7 x 6 mm

1шт.

5

NSS

NOT SOLD SEPARAT

RING E-type, external retaining, No. 50

1шт.

6

NSS

NOT SOLD SEPARAT

BUSHING potentiometer

1шт.

7

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

8

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

1шт.

9

425-114

NUT,1/4"-28, G5

2шт.

10

492-11025

LOCK WASHER,1/4"

2шт.

11

301522A1

THREADED TIE-ROD

special, with nuts, 1/4 NF x 6-1/2 inch

1шт.

12

A10329

BALL JOINT,1/4" - 28 x 1"

1/4 inch NF

2шт.

13

127308A2

SUPPORT

rear, potentiometer

1шт.

14

253421A1

WIRE HARNESS

CABLE header height, 1644, 1666, and 1688 series combines

1шт.

14

224718A1

WIRE HARNESS

CABLE header height, 2100 and 2300 series combines

1шт.

Выбрано товаров: 18
