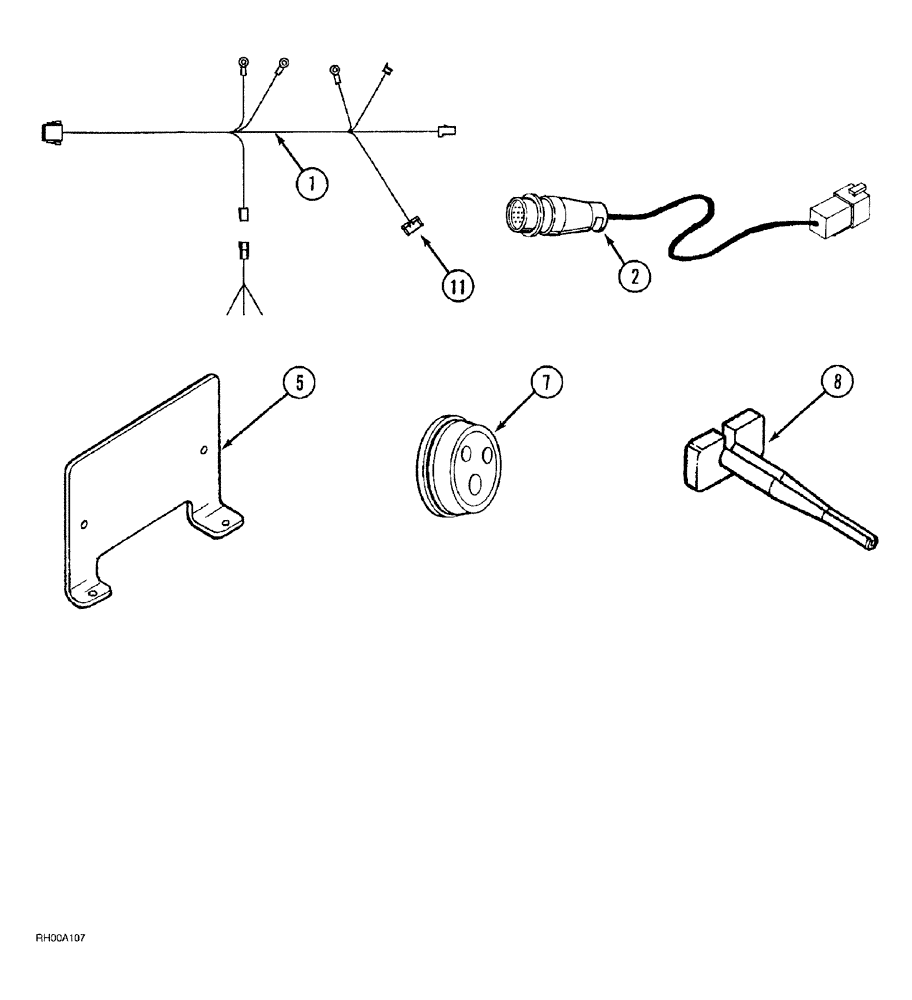

Запчасти Case IH AFS (02-15) - YIELD MONITOR ADAPTER PACKAGE (2100 AND 2300 SERIES COMBINES PRIOR TO 1999) (55) - ELECTRICAL SYSTEMS

336472A2

PACKAGE

yield monitor adapter, Includes Ref: 1-9

1шт.

1

373552A1

HARNESS

AFS display adapter, prior to 1999 with 2000 yield monitor system

1шт.

2

336458A1

HARNESS

moisture sensor adapter

1шт.

3

NSS

NOT SOLD SEPARAT

GUIDE, YMIU AND GPS RECEIVER T - , not shown

1шт.

4

232801A1

DOOR SEAL

door, 1016 mm (40 inch) long, , not shown

1шт.

5

320451A1

BRACKET

Display mounting

1шт.

6

282-44712

SELF-TAP SCREW,Hex Wash Hd, 1/4"-20 x 3/4"

self-drilling tapping, hex washer head, 1/4 NC x 3/4 inch

4шт.

7

258336A1

GROMMET

3 hole

1шт.

8

84033C1

TOOL

terminal extractor, size 16

2шт.

9

224636A1

DECAL

connector cover

1шт.

10

324195A2

HARNESS

AFS display adapter, prior to 1999 with 1999 yield monitor system, looks like Ref. 1

1шт.

11

121412A1

FUSE,10A, Mini, Red

2шт.
