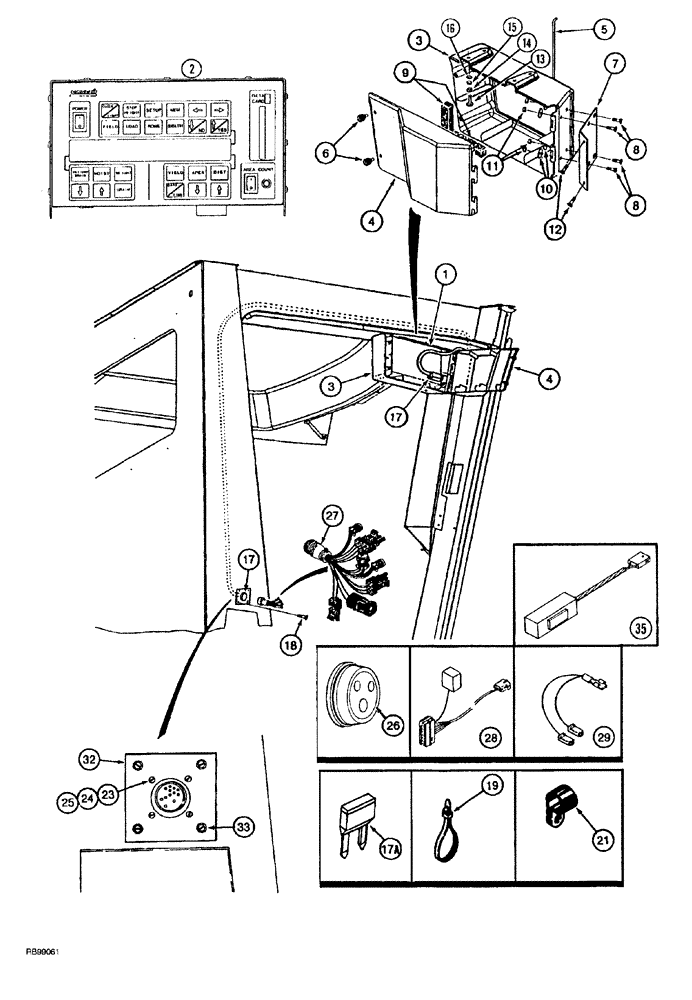

Запчасти Case IH AFS (02-14) - YIELD MONITOR AND HOUSING (2100 AND 2300 SERIES COMBINES) (55) - ELECTRICAL SYSTEMS

1

222694A5

CLUSTER, INSTR.

CLUSTER, INSTRUMENT MONITOR yield, includes decal, Includes Ref: 2

1шт.

2

223899A2

CONTROL

DECAL yield monitor keypad

1шт.

NSS

NOT SOLD SEPARAT

HOUSING ASSEMBLY, yield monitor, Includes Ref: 3-15

1шт.

3

225013A2

HOUSING

HOUSING yield monitor

1шт.

3a

191216A1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 5/8"

Not Shown

6шт.

4

222476A2

COVER

housing

1шт.

5

223488A1

SPLIT PIN/SAFETY PIN

hinge, special

1шт.

6

224750A1

SCREW

snap-in retractable

2шт.

7

224689A2

SUPPORT

BRACKET support

1шт.

8

443-11012

SCREW,Cross Flat Hd, #10-24 x 3/4"

machine, flat Phillips, No. 10 NC x 3/4 inch

4шт.

9

98359C1

SEALING STRIP

SEAL 100 mm (3-16/16 inch) long, cut from 1974883CX bulk seal, see P/N 1974883CX below

2шт.

10

495-81101

WASHER,5.56mm ID x 19.05mm OD x 1.7mm Thk

4шт.

11

231-14409

NUT,#10-24, GB

hex, self-locking, NC

4шт.

12

260-16512

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"

2шт.

13

463-11012

SCREW,Hex Hd, #10-24 x 3/4"

machine, hex head, No. 10 NC x 3/4 inch

4шт.

13

191216A1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 5/8"

6шт.

14

495-81101

WASHER,5.56mm ID x 19.05mm OD x 1.7mm Thk

4шт.

15

225-14110

NUT,#10-24

4шт.

16

495-31022

WASHER,#10

3шт.

17

224714A2

HARNESS

cab, yield monitor, Includes Ref: 17A

1шт.

17a

121410A1

FUSE,5A, Mini, Tan

1шт.

18

260-1448

SELF-TAP SCREW,Cross Pan Hd, #8 x 1/2"

self-tapping, pan Phillips, No. 8-18 x 1/2 inch

4шт.

224762A2

PACKAGE

KIT yield monitor cab harness installation, Includes Ref: 19-26

1шт.

19

22-824

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

20шт.

20

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch, tie, long

10шт.

21

516-23127

CLAMP,9/16", Insul, 3/8" Bolt

8шт.

22

ZRUT803V

SEE PARTS MARKETING

SEALANT sihcone, black, not shown

1шт.

23

440-1068

SCREW,Cross Pan Hd, #6-32 x 1/2"

5шт.

24

492-11006

LOCK WASHER,#6

5шт.

25

225-14106

NUT,#6-32

5шт.

26

258336A1

GROMMET

3 hole

1шт.

27

224715A2

HARNESS

CABLE distribution

1шт.

28

224709A1

PACKAGE

power supply, 120VAC/14VDC, includes wall mount transformer and cable

1шт.

29

228997A1

HARNESS

ground splitter, combines, Serial Range: prior-1996

1шт.

Included in 225259A2 yield monitor special parts package for 2100 series combines prior to 1996, Ref. 6 Figure 02-08

1шт.

30

739070C1

CONNECTOR, ELEC

CONNECTOR single pin, not shown, used with splitter harness, combines, Serial Range: prior-1996

1шт.

Included in 225259A2 yield monitor special parts package for 2100 series combines prior to 1996, Ref. 6 Figure 02-08

1шт.

31

1120922C1

ELEC CONNECTOR,Male, 1 - 2 mm2

used with splitter harness, combines prior to 1996, not shown

1шт.

Included in 225259A2 yield monitor special parts package for 2100 series combines prior to 1996, Ref. 6 Figure 02-08

1шт.

224763A1

PACKAGE

KIT plate, yield monitor cab harness installation, prior to 1996, Includes Ref: 32, 33

1шт.

Included in 225259A2 yield monitor special parts package for 2100 series combines prior to 1996, Ref. 6 Figure 02-08

1шт.

32

NSS

NOT SOLD SEPARAT

PLATE cab wall

1шт.

Included in 225259A2 yield monitor special parts package for 2100 series combines prior to 1996, Ref. 6 Figure 02-08

1шт.

33

275-14712

SELF-TAP SCREW,Hex Hd, 1/4" x 3/4"

4шт.

Included in 225259A2 yield monitor special parts package for 2100 series combines prior to 1996, Ref. 6 Figure 02-08

1шт.

34

224716A1

HARNESS

CABLE ground and elevator speed, not shown

1шт.

35

357703A1

BATTERY

internal, yield monitor

1шт.

1974883CX

SEAL

bulk, adhesive-backed, 13 (1/2) x 38 (1-1/2) x 15240 mm (600 inch) long, see Ref. 9 P/N 98359C1 above

1шт.
