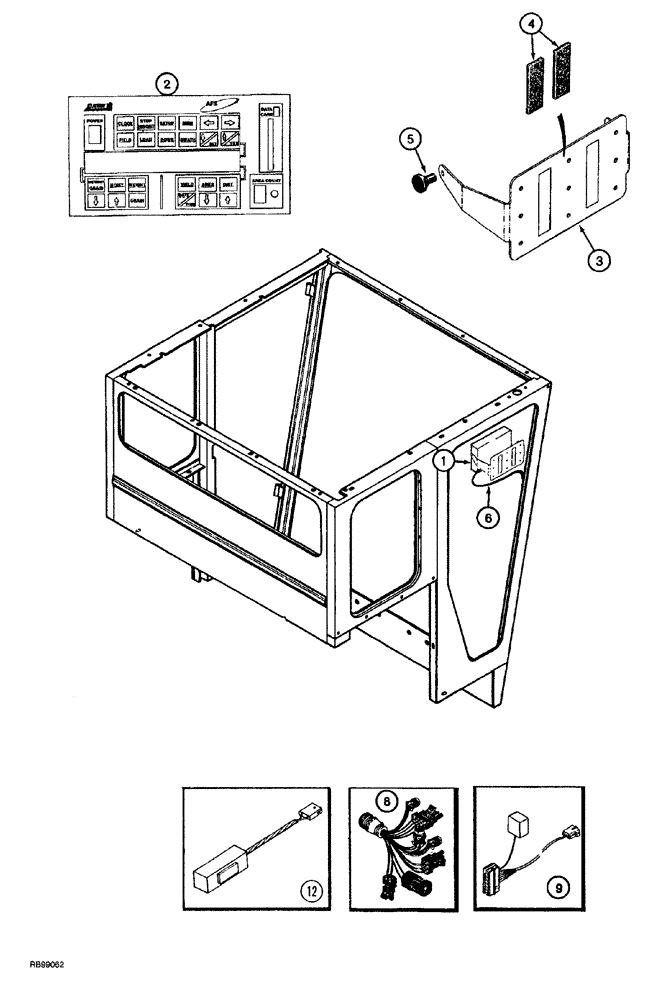

Запчасти Case IH AFS (02-12) - YIELD MONITOR AND MOUNTING (1644, 1666, AND 1688 COMBINES) (55) - ELECTRICAL SYSTEMS

1

222694A5

CLUSTER, INSTR.

CLUSTER, INSTRUMENT MONITOR yield, includes decal, Includes Ref: 2-5

1шт.

2

223899A2

CONTROL

DECAL yield monitor keypad

1шт.

3

237481A1

SUPPORT

monitor mount

1шт.

4

234910A1

ADHESIVE STRIP

FASTENER loop type adhesive, 9 inch

3шт.

5

237490A1

HANDLE

KNOB monitor mount

2шт.

6

234482A1

HARNESS

cab, yield monitor

1шт.

7

NSS

NOT SOLD SEPARAT

SWAB alcohol, not shown, used to clean cab window before attaching, Serial Range: bracket-window

1шт.

8

224715A2

HARNESS

CABLE distribution

1шт.

9

224709A1

PACKAGE

power supply, 120VAC/14VDC, includes wall mount transformer and cable

1шт.

10

234516A1

CABLE

ground speed, 240 inch long, not shown

1шт.

11

234519A1

CABLE

elevator speed, 96 inch long, not shown

1шт.

12

357703A1

BATTERY

internal, yield monitor

1шт.
