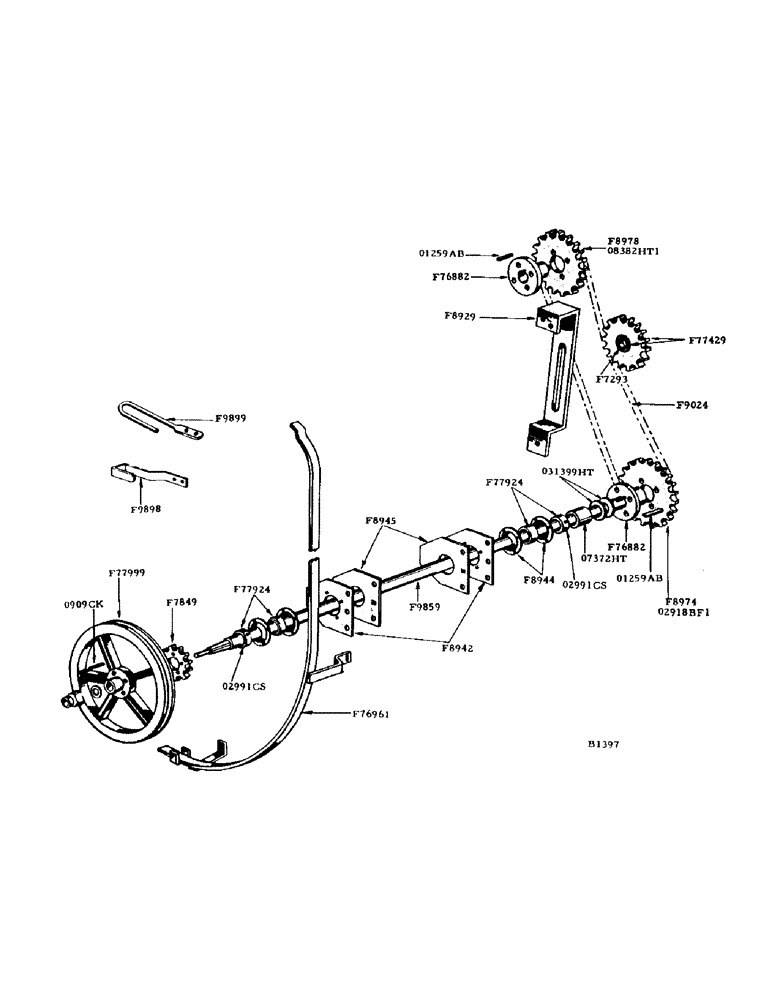

Запчасти Case IH 1000 (08[3]) - BAGGING PLATFORM (80) - CROP STORAGE/UNLOADING

F1209

FITTING

SHEAVE (Use F77999)

1шт.

F7293

BEARING

(Fafnir #203PPG) For F77429 sprocket

1шт.

F7849

SPROCKET (25T) Beater drive

1шт.

3/8" x 2" N.F. hex. bolt w/hex. nut and lockwasher

5шт.

F8929

BRACKET - tightener, cylinder drive

1шт.

5/16" x 1" N.F. hex. bolt w/hex. nut and lockwasher

1шт.

5/8" x 2-1/2" N.F. hex. bolt w/hex. nut. lockwasher and plain washer

1шт.

5/8" plain washer

5шт.

F8942

BRACKET - bearing, R.H.

2шт.

1/2" x 1-1/4" carr. bolt w/hex. nut and lockwasher

4шт.

F8944

FLANGE

- for F77924 bearing

4шт.

1/2" x 1-1/4" carr. bolt w/hex. nut and lockwasher

4шт.

F8945

PLATE - cover

2шт.

3/8" x 1-1/2" carr. bolt w/hex. nut and lockwasher

4шт.

F8974

SPROCKET ASSY.

SPROCKET (24T) cylinder drive (See speed chart)

1шт.

F8978

SPROCKET (33T) cylinder drive (See cylinder speed chart)

1шт.

F9024

X

CHAIN - cylinder drive (Use 2-B12478 chain, 4-B12481 chain, 4-B12509 conn. link, 1-B12510 offset link, 4-B12511 roller links #60 roller chain)

1шт.

F9109

SPACER - (1-1/2" O.D. x 1-5/32" long) Drive shaft not shown

1шт.

F9859

SHAFT - main drive (Chain cylinder drive)

1шт.

F9898

GUIDE - main drive belt

1шт.

5/16" x 3/4" N.F. hex. bolt w/hex. nut and lockwasher

2шт.

F9899

ROD - guide, main drive belt

1шт.

5/16" x 1" N.F. hex. bolt w/hex. nut and lockwasher

2шт.

F9935

V-BELT

"V" BELT - main combine drive

1шт.

F76882

HUB - with flange, for cylinder drive sprockets

1шт.

3/8" x 3/4" N.C. cup pt. set screw w/hex. jam nut

2шт.

F76961

GUIDE - main drive belt

1шт.

3/8" x 1" N.F. hex. bolt w/hex. nut and lockwasher

1шт.

3/8" x 1-1/4" N.F. hex. bolt w/hex. nut, lockwasher and dbl. plain washer

1шт.

F77429

SPROCKET (21T) tightener, cylinder drive (Includes 1-F7293 bearing)

1шт.

F77924

BEARING

(Fafnir #1108KRRB w/O2991CS collar) Main drive shaft

2шт.

F77999

SHEAVE (23" O.D.) Main combine drive (800 RPM)

1шт.

O1259AB

KEY (3/8" sq. x 2" long) For F76882 hub

1шт.

O2918BF1

SPROCKET (30T) cylinder drive (See cylinder speed chart)

1шт.

O909CK

KEY (5/16" x 5/16" x 1-5/8") For F77999 sheave

1шт.

O2991CS

X

COLLAR (Fafnir #S11O8K) For F77924 bearings

2шт.

O7372HT

SPACER (1-1/2" x 15/16") For sprockets

1шт.

O8382HT1

SPROCKET (21T) cylinder drive (See cylinder speed chart)

1шт.

O31399HT

WASHER (1-17/32" I.D. x 2-1/4" O.D.) Spacer

2шт.

T19471

PLOW BOLT

BOLT - (3/8" x 1-1/4" #3 plow-w/hex. nut) 1-for F8929 bracket and 2-for F8945 cover

3шт.

3/8" lockwasher

3шт.

T19480

BOLT

(1/2" x 1-1/4" #3 plow-w/hex. nut) For F8944 flange

4шт.

1/2" standard lockwasher

4шт.

F10741

STRIP

WEAR STRIP - for F4079 support (See page 21 suppl. no., Serial Range: 1-649)

2шт.

1/4" x 1-3/4" N.C. flat hd. mach. screw w/hex. nut, lockwasher, plain washer

8шт.

O122GR

WASHER (1-1/2" O.D. x 1-1/32" I.D. #16-18 ga.) Used with F5422 dust shield (See page 77 - no. 649 catalog)

2шт.

F9825

STRAP - grain elevator anchor

1шт.

1/4" x 5/8" N.F. hex. bolt w/hex. nut and lockwasher

1шт.

F76978

BODY - elevator (Includes upper and lower heads) See note

1шт.

NOTE: F78446 and F76978 are included in the bagging platform attachment for model "1000" combines after no. 8180301. If there are any further requirements for the complete chain and flight order F76124.

1шт.

F78446

CHAIN AND FLIGHT EXTENSION (For F78408) Includes 6-#55 plain links and 2-flights riveted to 2-#55-SH attachment links

1шт.

O5481HT

"S" HOOK - for O5696HT1 chain

2шт.
