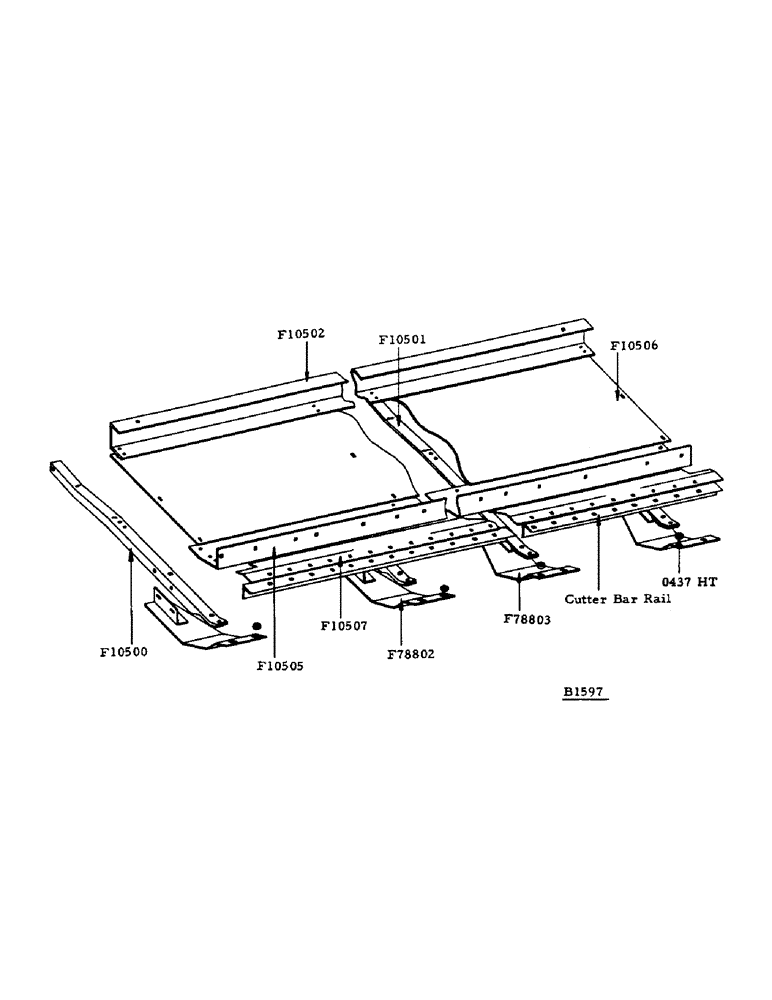

Запчасти Case IH 1000 (07[1]) - HEADER FLOTATION SPRING (58) - ATTACHMENTS/HEADERS

F10500

RAIL - support, R.H.

3шт.

5/16" x 3/4" N.F. hex. bolt w/hex. nut and lockwasher

3шт.

3/8" x 7/8" N.F. hex. bolt w/hex. nut and lockwasher

6шт.

F10501

RAIL - support, L.H.

1шт.

5/16" x 3/4" N.F. hex. bolt w/hex. nut and lockwasher

2шт.

5/16" x 7/8" N.F. hex. bolt w/hex. nut and lockwasher

1шт.

3/8" x 7/8" N.F. hex. bolt w/hex. nut and lockwasher

6шт.

F10502

CHANNEL - transverse

1шт.

5/16" x 3/4" carr. bolt w/hex. nut and lockwasher

6шт.

5/16" x 1 carr. bolt w/hex. nut and lockwasher

20шт.

F10505

SUPPORT - cutter bar

1шт.

3/8" x 1 carr. bolt w/hex. nut and lockwasher

6шт.

3/8" x 1-1/4" carr. bolt w/hex. nut and lockwasher

6шт.

F10506

FLOOR - auger trough extension

1шт.

1/4" x 5/8" carr. bolt w/hex. nut and lockwasher

6шт.

F10507

STRIPPER - cutter bar

1шт.

F78802

SKID PLATE - cutter bar extension, R.H.

3шт.

3/8" x 1-1/4" carr. bolt w/hex. nut and lockwasher

3шт.

3/8" x 7/8" N.F. hex. bolt w/hex. nut and lockwasher

6шт.

F78803

SKID PLATE - cutter bar extension, L.H.

3шт.

3/8" x 1-1/4" carr. bolt w/hex. nut and lockwasher

3шт.

3/8" x 7/8" N.F. hex. bolt w/hex. nut and lockwasher

6шт.

O437HT

SPACER (3/8"), 1 for each skid plate

6шт.

F1287

CLAMP - spring retainer

4шт.

1/2" x 2-1/2" N.F. hex. bolt w/hex. nut and lockwasher

4шт.

F9932

CUP - spring retainer

2шт.

F10549

SPRING

2шт.

F77914

RETAINER - spring

2шт.
