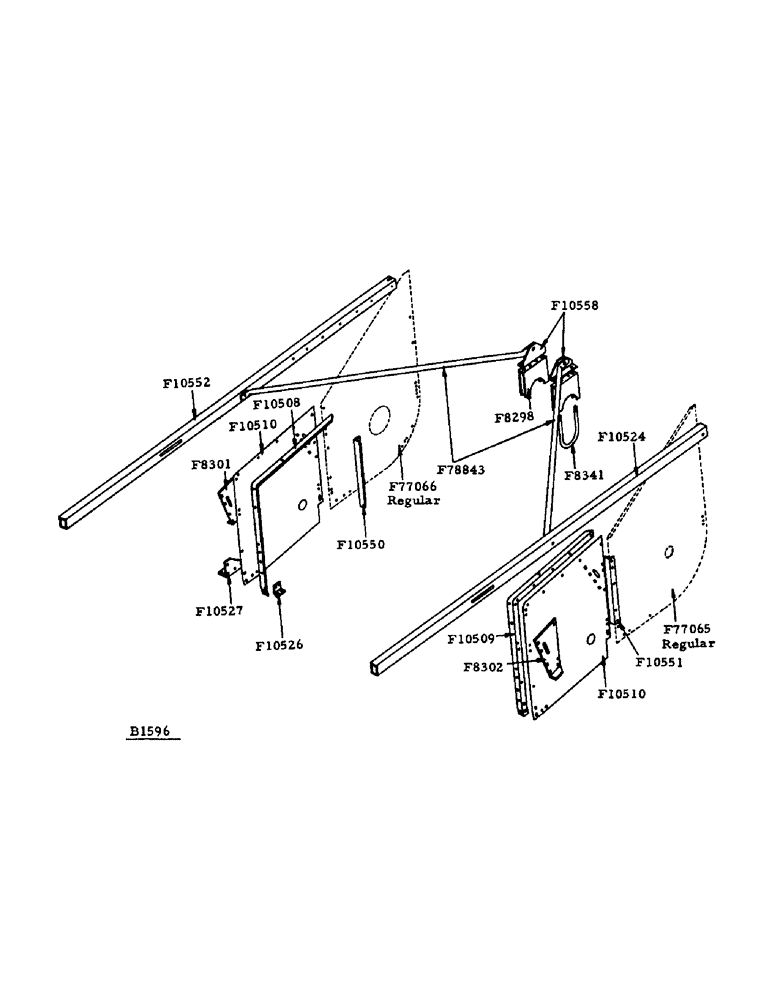

Запчасти Case IH 1000 (06) - CUTTER BAR EXTENSION, AUGER TROUGH HEADS AND EXTENSIONS (58) - ATTACHMENTS/HEADERS
№
Артикул
Название
Примечание
Количество
F8298
SUPPORT - torque tube
2шт.
F8301
GUSSET - reel support, R.H.
1шт.
5/16" x 5/8" N.F. hex. bolt w/hex. nut and lockwasher
4шт.
5/16" x 3/4" N.F. hex. bolt w/hex. nut and lockwasher
3шт.
F8302
GUSSET - reel support, L.H.
1шт.
5/16" x 5/8" N.F. hex. bolt w/hex. nut and lockwasher
4шт.
5/16" x 3/4" N.F. hex. bolt w/hex. nut and lockwasher
3шт.
F8341
"U" BOLT
2шт.
3/8" N.F. hex. nut and lockwasher
4шт.
F10508
ANGLE - support, R.H.
1шт.
5/16" x 5/8" N.F. hex. bolt w/hex. nut and lockwasher
5шт.
F10509
ANGLE - support, L.H.
1шт.
5/16" x 5/8" N.F. hex. bolt w/hex. nut and lockwasher
5шт.
F10510
END SHEET
2шт.
5/16" x 3/4" carr. bolt w/hex. nut and lockwasher
2шт.
F10524
ARM - reel support, L.H.
1шт.
F10526
BRACKET - support
1шт.
3/8" x 3/4" carr. bolt w/hex. nut and lockwasher
1шт.
3/8" x 1-1/4" carr. bolt w/hex. nut and lockwasher
1шт.
F10527
GUSSET - R.H. end sheet
1шт.
5/16" x 1" carr. bolt w/hex. nut and lockwasher
2шт.
5/16" x 7/8" N.F. hex. bolt w/hex. nut and lockwasher
2шт.
F10550
POST - divider, R.H., Serial Range: (Similar-F8300)
1шт.
F10551
POST - divider, L.H., Serial Range: (Similar-F8303)
1шт.
F10552
ARM - reel support, R.H.
1шт.
F10558
BRACKET - anchor, for F78843 pipe brace
2шт.
F78843
BRACE - pipe, for reel support arms
2шт.
7/16" x 2-7/8" N.F. hex. bolt w/double hex. nut
2шт.
Выбрано товаров: 28
