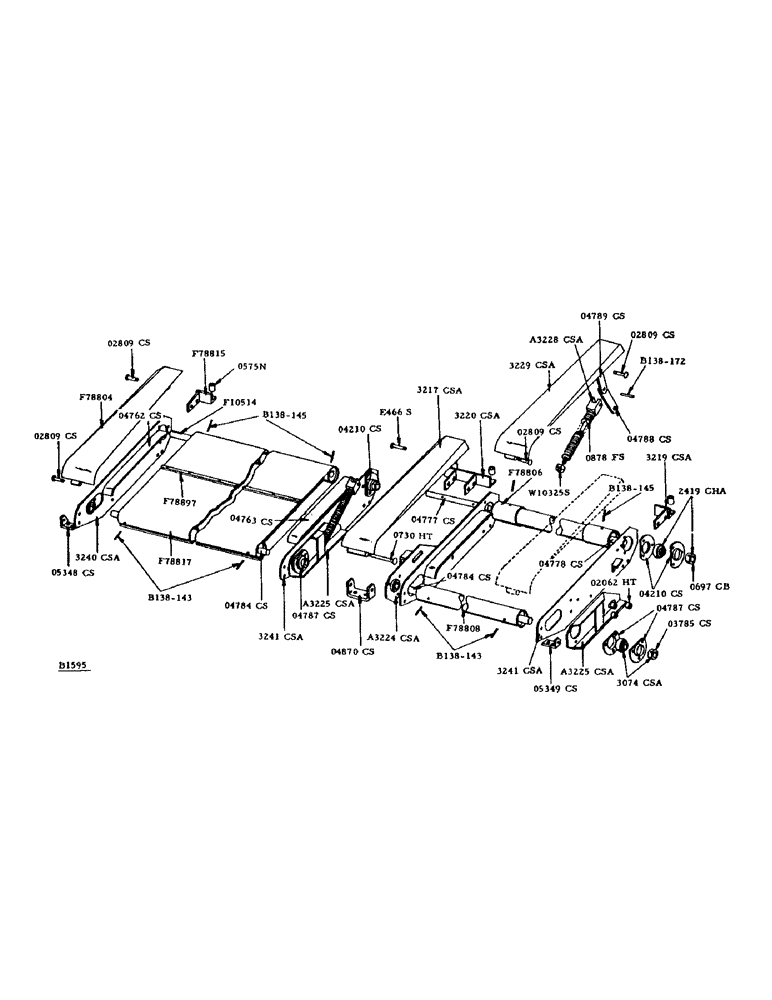

Запчасти Case IH 1000 (04) - CUTTER BAR EXTENSION, DRAPER ROLL ASSEMBLY (58) - ATTACHMENTS/HEADERS

F10514

SHAFT - draper drive (R.H )

1шт.

F78804

DEFLECTOR - R.H. draper

1шт.

F78806

ROLL - draper drive, rear

2шт.

F78808

ROLL - draper, front (Includes 2-O4784CS shafts and 2-B138-143 roll pin)

2шт.

F78815

BRACKET - draper support, R.H. rear

1шт.

F78817

DRAPER

2шт.

O697CB

X

COLLAR - for 2419CHA bearing

4шт.

F78897

FASTENER - draper, repair for F78817 draper

1шт.

2419CHA

SPHERICAL BEARING,31.75mm ID x 62mm OD x 18mm W

BEARING (Fafnir #RA103PPB2 w/O697CB collar) Rear draper roll

4шт.

O2809CS

PIN - drilled (3/8" x 1-1/2") For F78804 and 3229CSA deflectors

4шт.

1/8" x 1" cotter pin

4шт.

O3785CS

X

COLLAR - for 3074CSA bearing

4шт.

O4210CS

FLANGETTE - for 2419CHA bearing

8шт.

5/16" x 1" N.C. flat hd. mach. screw w/hex. nut, lockwasher, plain washer

6шт.

O4762CS

RAIL - draper skid, R.H. (3240CSA)

2шт.

1/4" x 3/4" ctsk. hd. rivet

6шт.

O4763CS

RAIL - draper skid, L.H. (3241CSA)

2шт.

1/4" x 3/4" ctsk. hd. rivet

6шт.

O4777CS

SHAFT - stub, rear draper roll, center

1шт.

O4778CS

SHAFT - stub, rear draper roll, L.H.

1шт.

O4784CS

SHAFT - stub, front draper roll

4шт.

O4787CS

FLANGETTE - for 3074CSA bearing

8шт.

1/4" x 5/8" N.C. rd. hd. mach. screw w/hex. nut, lockwasher and plain washer

6шт.

O4788CS

LEVER - lower, draper tension

4шт.

O4789CS

LEVER - secondary, draper tension

4шт.

O4870CS

BRACKET - support, for center 3240CSA and 3241CSA

1шт.

3/8" x 3/4" carr. bolt w/hex. nut, lockwasher, plain washer

2шт.

O5348CS

PIVOT - draper bracket, R.H.

1шт.

3/8" x 3/4" carr. bolt w/hex. nut and lockwasher

2шт.

O5349CS

PIVOT - draper bracket, L.H.

1шт.

3/8" x 3/4" carr. bolt w/hex. nut and lockwasher

2шт.

3074CSA

BALL BEARING

(Fafnir #RA100PPB w/O3785CS collar) Front draper roll

4шт.

3217CSA

DEFLECTOR - center, draper

1шт.

3219CSA

BRACKET - support, draper, L.H. rear

1шт.

3220CSA

PIVOT - draper bracket, center

1шт.

A3224CSA

BRACKET - bearing, draper roll R.H.

2шт.

A3225CSA

BRACKET - bearing, draper roll, L.H.

2шт.

A3228CSA

ROD - release, with yoke

4шт.

3229CSA

DEFLECTOR - draper, L.H.

1шт.

3240CSA

SUPPORT - draper roll, R.H.

2шт.

5/16" x 1" #3 plow bolt w/hex. nut

6шт.

3/8" plain washer

2шт.

1/8" x 1" cotter pin

2шт.

3241CSA

SUPPORT - draper roll, L.H.

2шт.

5/16" x 1" #3 plow bolt w/hex. nut

6шт.

3/8" plain washer

2шт.

1/8" x 1" cotter pin

2шт.

O878FS

SPRING - release rod

4шт.

O730HT

PIN - drilled (3/8" x 3-9/16") For 3217CSA center deflector front

1шт.

1/8" x 1" cotter pin

1шт.

O2062HT

SPACER - for bracket support plow bolts

12шт.

O575N

SPACER (1/2" x 1-13/32") For draper support bracket

4шт.

3/8" x 2-1/4" carr. bolt w/hex. nut, lockwasher, plain washer

4шт.

E466S

PIN - drilled (3/8" x 1-3/4") For 3217CSA, rear

1шт.

1/8" x 1" cotter pin

1шт.

W10325S

X

LOCKNUT - (7/16" N.F. ESNA #29E-070) For A3228CSA rod

4шт.

B138-143

ROLL PIN (1/4" x 2-1/4") For front draper roll shaft

4шт.

B138-145

ROLL PIN (1/4" x 2-3/4") 2 for O4777CS, 1 for O4778CS and 1 for F10514

4шт.

B138-172

ROLL PIN (3/8" x 1-1/4") For A3228CSA rod

2шт.

F10665

KEY (3/16" sq. x 3-3/4") For F78922 pivot shaft, sickle drive

1шт.

F78810

PLATE - support (Use in place of F77591), sickle drive

1шт.

F78896

SWAY BAR - sickle drive (Use in place of F77890), sickle drive

1шт.

F78922

SHAFT

- pivot, for F78811 sway bar (Use in place of F77091), sickle drive

1шт.

F10559

"V" BELT - reel drive (Use in place of F8419), reel drive

1шт.
