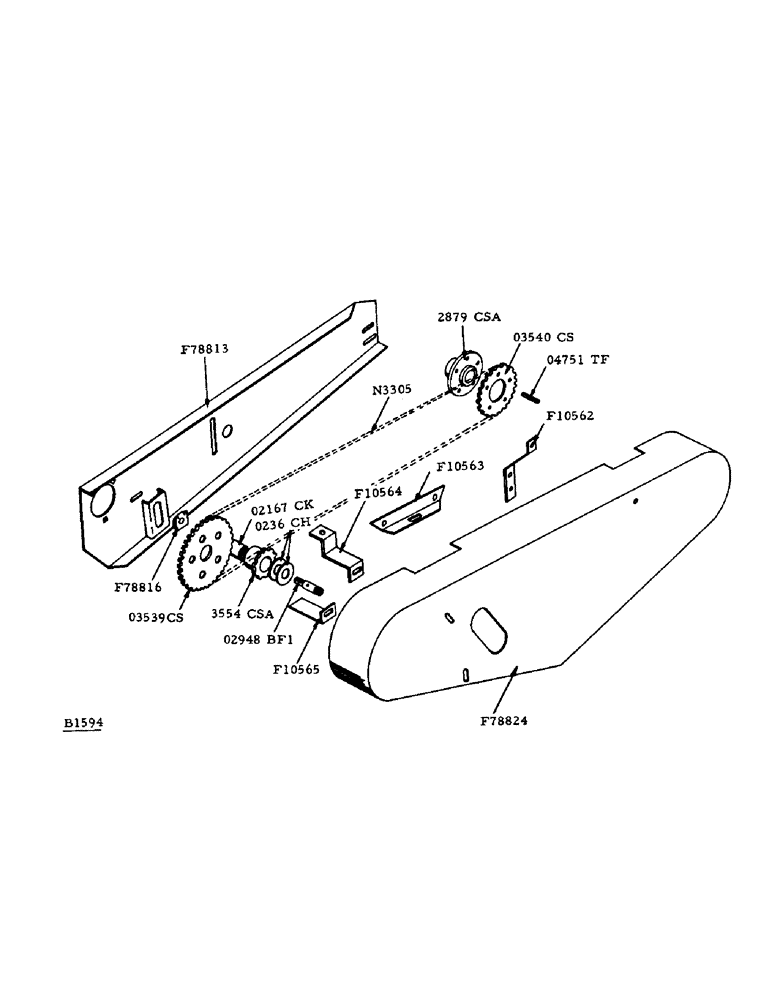

Запчасти Case IH 1000 (03) - DRAPER DRIVES, CUTTER BAR EXTENSION (58) - ATTACHMENTS/HEADERS

F10562

BRACKET - upper front, for F78824 draper drive shield

1шт.

5/16" x 7/8" N.F. hex. bolt w/hex and lockwasher

2шт.

5/16" x 5/8" N.F. hex bolt w/hex and lockwasher

1шт.

F10563

BRACKET - lower front, for F78824 draper shield

1шт.

5/16" x 3/4" N.F. hex. bolt w/hex. nut and lockwasher

2шт.

5/16" x 5/8" N.F. hex. bolt w/hex. nut and lockwasher

1шт.

F10564

BRACKET - upper rear - draper drive shield F78824

1шт.

5/16" x 5/8" N.F. hex. bolt w/hex. nut and lockwasher

1шт.

5/16" x 3/4" N.F. hex. bolt w/hex. nut and lockwasher

1шт.

F10565

BRACKET - lower rear, for F78824 draper drive shield

1шт.

5/16" x 5/8" N.F. hex. bolt w/hex. nut and lockwasher

1шт.

5/16" x 3/4" N.F. hex. bolt w/hex. nut and lockwasher

1шт.

F78813

SUPPORT - auger bearing (In lieu of F77080)

1шт.

F78816

LOCKNUT - for O2948BF1 idler stud

1шт.

F78824

SHIELD - draper drive

1шт.

N3305

X

CHAIN - rear draper roller drive (Use 2-B12474 chain, 1-B12475 chain, 1-B12476 chain, 1-B12477 chain and 1-B12506 offset link #50 roller chain)

1шт.

O2948BF1

STUD - idler, (For 3554CSA)

1шт.

O236CH

WASHER (1-7/8" O.D. x 1-1/32" I.D. #16 ga.) For idler stud O2948BF1

2шт.

O2167CK

X

BEARING - (Torrington #BL-1628-OH) For 3554CSA tightener sprocket

1шт.

O3539CS

SPROCKET (35T) Draper drive

1шт.

O3540CS

SPROCKET (26T) Draper drive, driven

1шт.

2879CSA

HUB - for draper drive sprockets (Includes 2-O4751TF key and 5-3/8" x 1-1/4" N.F. hex. bolt w/hex. nut and lockwasher)

1шт.

3554CSA

SPROCKET (15T) tightener, rear draper roll drive (Includes 1-O2167CK bearing)

1шт.

O4751TF

KEY (1-1/2" tapered) For 2879CSA hub

1шт.
