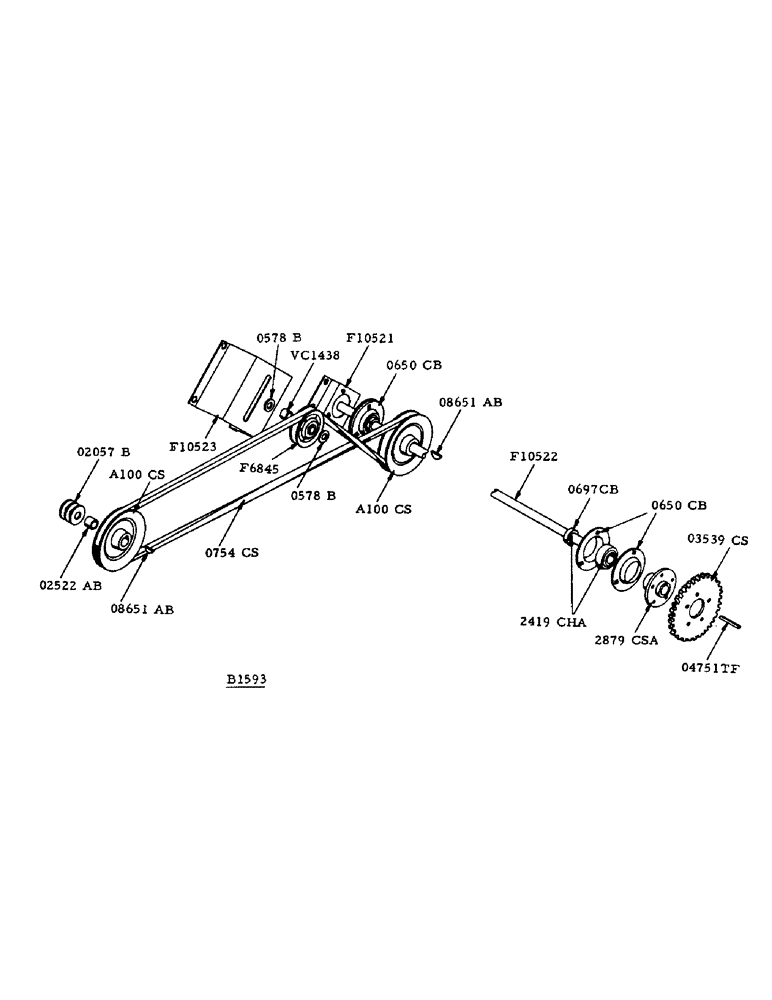

Запчасти Case IH 1000 (02) - CROSS SHAFT DRIVE (58) - ATTACHMENTS/HEADERS

F6845

SHEAVE

- idler (Aetna #AG2421) Cross shaft drive

1шт.

5/8" x 2-1/4" N.F. hex. bolt w/hex. nut and lockwasher

1шт.

F10521

BRACKET inner bearing support, cross shaft

1шт.

3/8" x 5/8" N.F. hex. bolt w/hex. nut and lockwasher

4шт.

F10522

SHAFT - cross

1шт.

F10523

BRACKET - idler sheave, cross shaft drive

1шт.

5/16" x 1/2" N.F. hex. bolt w/hex nut and lockwasher

4шт.

O2522AB

SPACER (1-1/4" pipe x 1-5/16") For A100CS sheave on upper feeder rake shaft

1шт.

O8651AB

X

KEY ("C" Woodruff) For A100CS sheave

2шт.

O578B

X

WASHER (1-1/4" O.D. x 21/32" I.D. #16 ga.) For F6845 idler sheave

2шт.

O2057B

WASHER (2-1/2" O.D. x 1-5/16" I.D. #16 ga.) For A100CS sheave on upper feeder rake shaft

3шт.

O650CB

X

FLANGE - for 2419CHA bearing, cross shaft

4шт.

3/8" x 3/4" carr. bolt w/hex. nut and lockwasher

3шт.

5/16" x 3/4" carr. bolt w/hex. nut and lockwasher

3шт.

O697CB

X

COLLAR - for 2419CHA bearing, cross shaft

2шт.

2419CHA

SPHERICAL BEARING,31.75mm ID x 62mm OD x 18mm W

BEARING - (Fafnir #RA103PPB2 w/O697CB) Cross shaft

2шт.

A100CS

SHEAVE - cross shaft drive

2шт.

O754CS

V-BELT 127.87" L, Cross shaft drive 127.87" L

1шт.

O3539CS

SPROCKET (35T) Draper drive

1шт.

3/8" x 1-1/8" N.F. hex. bolt w/hex. nut and lockwasher

5шт.

2879CSA

HUB - for draper drive sprockets (Includes 1-O4751TF and 5-3/8" x 1-1/4" N.F. hex. bolt w/hex. nut and lockwasher

2шт.

O4751TF

KEY - (1-1/2" tapered) For 2879CSA hub

1шт.

VC1438

SPACER (7/8" O.D. x 11/32") For F6845 idler sheave

1шт.
