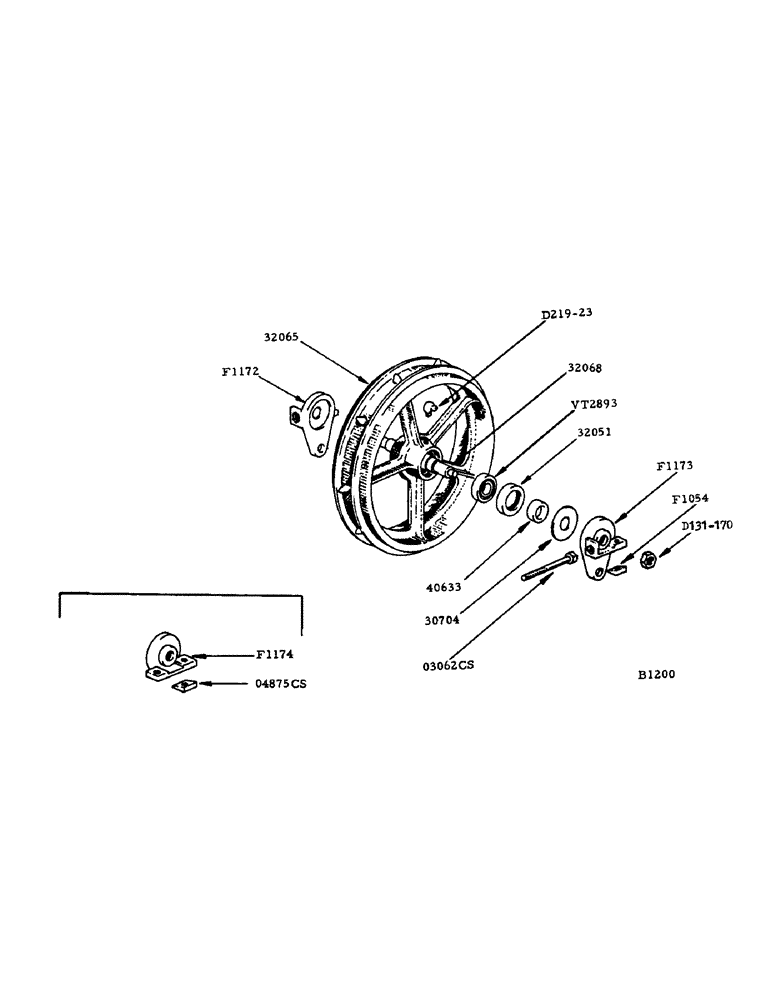

Запчасти Case IH 1000 (20) - IDLER ASSEMBLY (48) - TRACKS & TRACK SUSPENSION

F1054

HANDBOOK

WASHER (1-1/4" sq. x 9/16" I.D.) Bevel, F1172 and F1173 bearing bracket bolts

4шт.

F1172

BRACKET - bearing, rear L.H., rear idler

2шт.

1/2" x 1-1/2" N.F. hex. bolt w/hex. nut, lockwasher and plain washer

1шт.

1/2" x 2" N.F. hex. bolt w/hex. nut and lockwasher

1шт.

F1173

BRACKET - bearing, rear R.H., rear idler

2шт.

1/2" x 1-1/2" N.F. hex. bolt w/hex. nut, lockwasher and plain washer

1шт.

1/2" x 2" N.F. hex. bolt w/hex. nut and lockwasher

1шт.

F1174

BRACKET - bearing, front idler, R.H. and L.H.

4шт.

5/8" x 2" N.F. hex. bolt w/hex. nut and lockwasher

8шт.

VT2893

X

BEARING (New Departure #3207) front and rear idlers

8шт.

O3062CS

CAP SCREW - track tightener

4шт.

7/8" N.C. hex jam nut

8шт.

O4875CS

WASHER (1-1/2" sq. x 11/16" I.D.) Bevel, F1174 bearing bracket bolts

8шт.

D131-170

LOCK NUT - idler shaft, inner and outer

8шт.

30704

BEARING COVER

- oil seal

8шт.

32051

SPACER

(3/4" O.D. x 37/64" long) Between bearing and oil seal

8шт.

32065

FRONT IDLER

IDLER - front and rear

4шт.

32068

SHAFT

- front and rear idlers

4шт.

40633

PLATE

- front and rear idlers

8шт.

D219-23

FITTING (1/4" Alemite #1627B) Idler

4шт.
