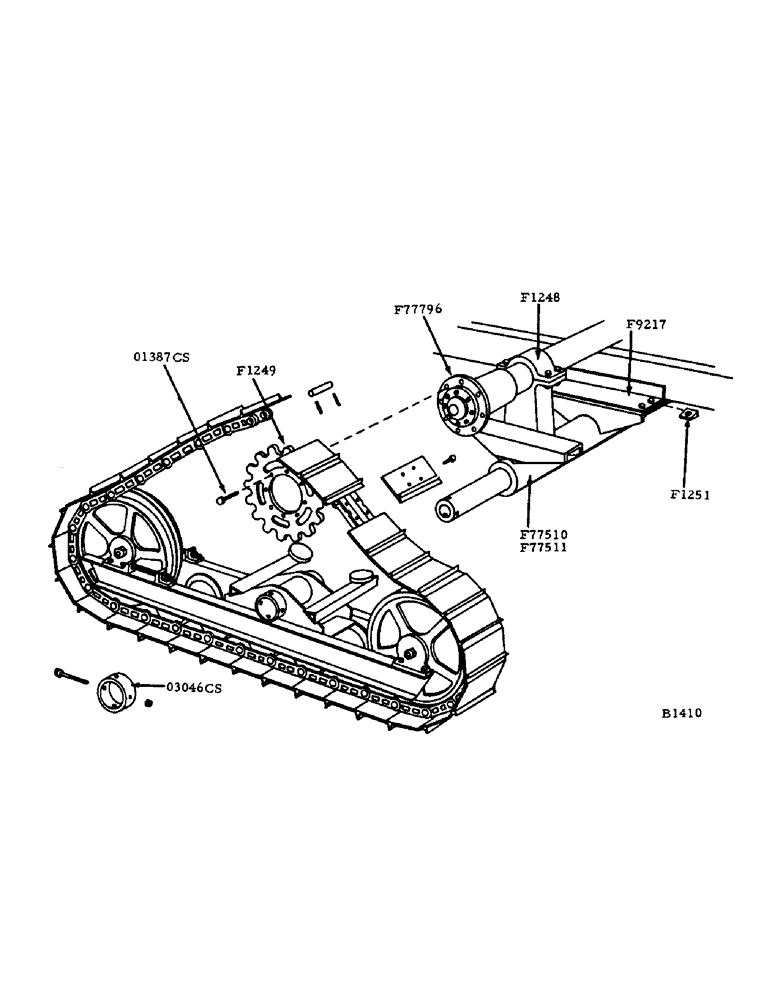

Запчасти Case IH 1000 (19) - BOGIE AXLE (48) - TRACKS & TRACK SUSPENSION

F1248

CLAMP - axle (Welded after assembly)

2шт.

1/2" x 2" N.F. hex. bolt w/hex. nut and lockwasher

4шт.

F1249

SPROCKET (19T) Track drive

2шт.

F1251

WASHER - bevel (1-1/2" sq.-11/16" I.D.) Bogie axle, 2-R.H. and 2-L.H.

4шт.

F9217

ANGLE - axle mounting (Welds to frame after assembly)

2шт.

1/2" x 1-1/4" N.F. hex. bolt w/hex. nut and lockwasher

8шт.

F77510

AXLE - bogie, R.H.

1шт.

5/8" x 1-3/4" N.F. hex. bolt w/hex. nut, lockwasher and F1251

2шт.

F77511

AXLE - bogie, L.H

1шт.

5/8" x 1-3/4" N.F. hex. bolt w/hex. nut, lockwasher and F1251

2шт.

O1387CS

BOLT - for F1249 drive sprocket

16шт.

O3046CS

COLLAR - axle tube

2шт.

7/16" x 1-1/2" N.F. hex hd. cap screw w/hex nut and lockwasher

4шт.
