(18) - BOGIE RAIL ASSEMBLY

Запчасти Case IH 1000 (18) - BOGIE RAIL ASSEMBLY (48) - TRACKS & TRACK SUSPENSION

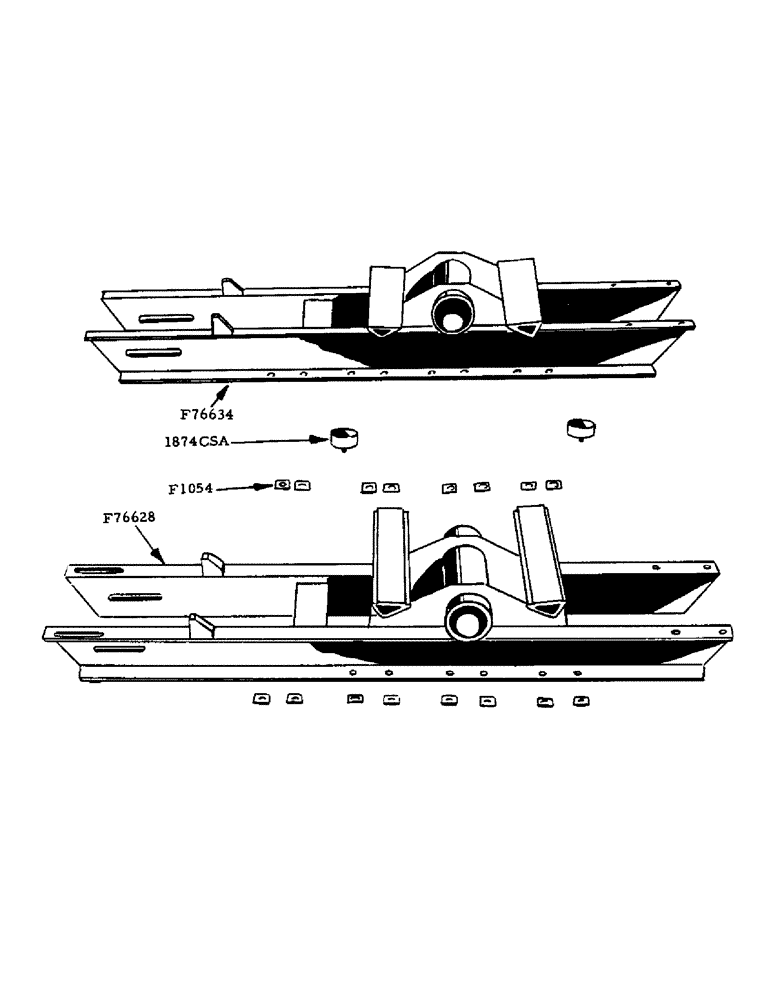

Схема запчастей Case IH 1000 - (18) - BOGIE RAIL ASSEMBLY (48) - TRACKS & TRACK SUSPENSION
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

F1054

HANDBOOK

WASHER (1-1/4" O.D. x 9/16") Bevel, track rails for roller

28шт.

1/2" x 2" N.F. hex. bolt w/hex, nut and lockwasher

28шт.

F76628

FRAME - bogie, R.H.

1шт.

1/4" 45 degree Lincoln fitting #5210

1шт.

F76634

FRAME - bogie, L.H.

1шт.

1/4" 45 degree Lincoln fitting #5210

1шт.

1874CSA

BUMPER - rubber, for track stop

4шт.

3/8" N.C. hex. nut and lockwasher

4шт.
