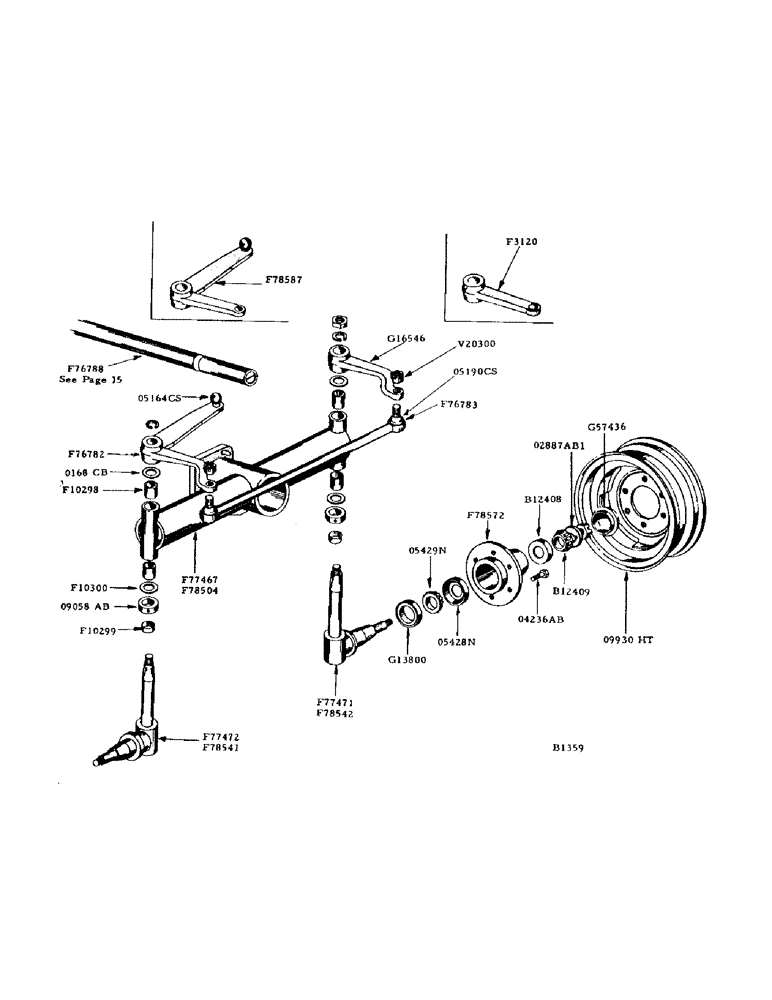

Запчасти Case IH 1000 (16[1]) - WHEEL FOR STEERING AXLE (44) - WHEELS

F3120

ARM - steering, R.H. (Straight) After no. 8182601 (Use with F78587)

1шт.

F10298

BUSHING - for F78504 axle

4шт.

F10299

SLEEVE - for F10298 bearing

2шт.

F10300

WASHER - thrust, for spindles

2шт.

F76782

ARM - center steering crank (Offset) Before no. 8182601 (See F78587)

1шт.

F76783

TIE ROD

1шт.

F78504

AXLE - rear w/4-F10298 bushing

1шт.

F78541

SPINDLE - steering, L.H.

1шт.

F78542

SPINDLE - steering, R.H.

1шт.

F78587

ARM - center steering crank (Straight) After no. 8182601 (See 76782)

1шт.

G16546

ARM - steering, R.H. (Before no. 8182601) Use with F76782

1шт.

O9058AB

X

BEARING (Timken # T-199) spindle

2шт.

O168CB

WASHER - shim, spindle

4шт.

O5164CS

BALL - for center steering crank

1шт.

O5190CS

X

COVER - dust (Rubber) for tie rod ends

2шт.

V20300

OPERATOR MANUAL

NUT TIE ROD

2шт.

B12408

BEARING CUP,59.156 mm OD x 11.862 mm

CUP (Timken #LM11910) bearing, outer

2шт.

B12409

BEARING, ROLLER,31.763 mm ID x 16.84 mm

CONE - (#LM67048) bearing, outer

2шт.

F78572

HUB - wheel (Includes 1-O5428N and 1-B12408 cups)

2шт.

G13800

SEAL

- wheel hub

2шт.

G57436

CYLINDER END CAP

HUB CAP - wheel

2шт.

O2887AB1

X

WASHER (1-7/8" O.D. x 1-1/32" I.D. x 3/16") spindle

2шт.

O4236AB

X

BOLT -, Serial Range: wheel-hub

12шт.

O9930HT

WHEEL - rim and disc (For 7:50 x 18 4 ply impl. tire - type F-1)

2шт.

O5428N

X

CUP (#13621) bearing, inner

2шт.

O5429N

X

CONE - (#13685) bearing, inner

2шт.
