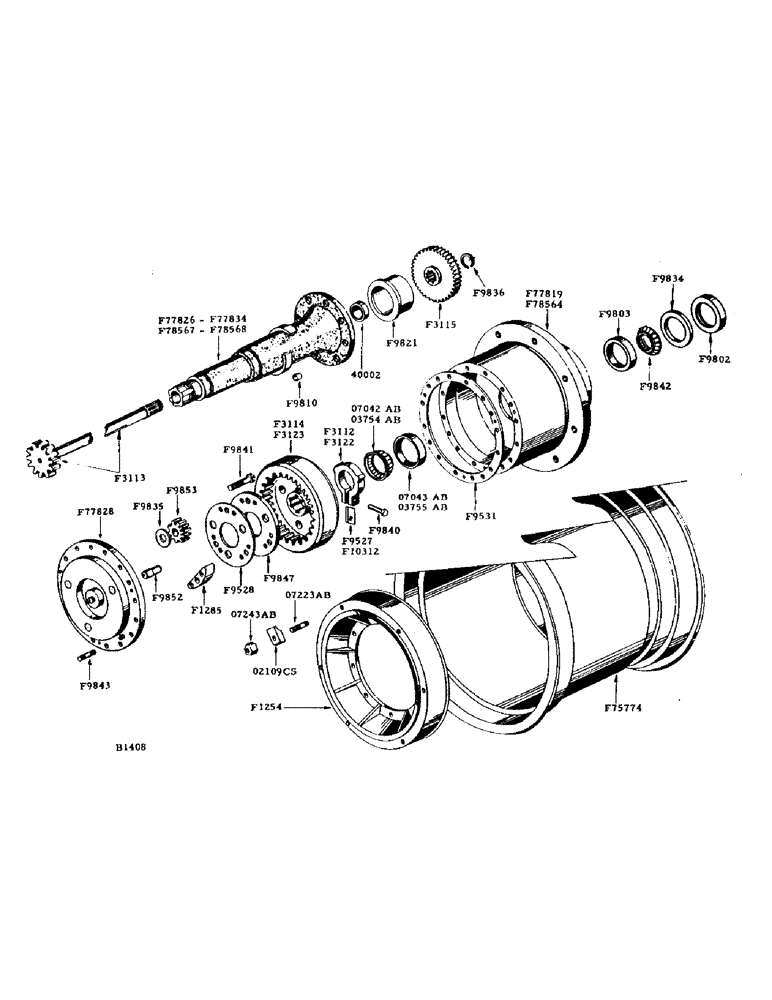

Запчасти Case IH 1000 (12[1]) - DRIVE WHEELS AND HUBS (44) - WHEELS

F3113

SHAFT - axle

2шт.

F3115

GEAR - final drive (79T)

2шт.

F9810

DOWEL - for F79806 stud

4шт.

F9821

SLEEVE - transmission case

2шт.

F9836

SNAP RING - axle shaft, retains drive gear

2шт.

F77826

HOUSING - axle, R.H. (Before no. 8182601) See F78567

1шт.

F77834

HOUSING - axle, L.H. (Before no. 8182601) See F78568

1шт.

F78567

HOUSING - axle, R.H. (After no. 8182601) See F77826

1шт.

F78568

HOUSING - axle, L.H. (After no. 8182601) See F77834

1шт.

4OOO2

BEARING (N.D. #3309) Axle shaft, for sleeve

2шт.

F1254

WHEEL - drive

2шт.

5/8" x 2" N.F. hex. bolt w/hex. nut and lockwasher

16шт.

F1285

SPACER - planetary gear

6шт.

F3112

NUT - hub bearing adjustment (Before no. 8182601) Use F3122

2шт.

F3114

GEAR - planetary internal ring (Before no. 8182601) Use F3123

2шт.

F3122

NUT - hub bearing adjustment (After no. 8182601) See F3112

2шт.

F3123

GEAR - planetary internal ring (After no. 8182601) See F3114

2шт.

F9527

LOCK - for adjustment nut F3112 (Use F10312)

2шт.

F9528

SHIM - for retaining plate

2шт.

F9531

GASKET - wheel hub

2шт.

F9802

OIL SEAL - inner, for hub

2шт.

F9803

BEARING CUP

CUP (Timken #34478) inner, for wheel hub

2шт.

F9834

WASHER - between F9802 and F9842

2шт.

F9835

WASHER - for planetary pinion gear

6шт.

F9840

CAP SCREW (3/8" x 1-3/4") Wheel adjusting nut

2шт.

F9841

CAP SCREW (3/8" X 2-1/8") For retaining plate

18шт.

F9842

BEARING CONE

CONE (Timken #34300) Inner, hub

2шт.

F9843

X

STUD - for hub cover

32шт.

F9847

RETAINER - spider pinion

2шт.

F9852

SHAFT - pinion, planetary drive

6шт.

F9853

PINION - planetary spider

6шт.

F10312

LOCK - for adjustment nut F3122

2шт.

F75774

RIM - wheel (18" x 26" - 8 ply tire type R-2-C)

2шт.

F77819

HUB - wheel (Includes 1-03755AB cup and 1-F9803) Before no. 8182601 (See F78564)

2шт.

F77828

COVER - wheel hub. w/3-F9852 studs

2шт.

F78564

HUB - wheel (Includes 1-O7043AB cup and 1-F9803 cup ) (After no. 8182601) See F77819

2шт.

O3754AB

X

CONE - (Timken #399A-4C) Outer, for F77819 wheel hub

2шт.

O3755AB

X

CUP (Timken #394-AC) Outer, for F77819 wheel hub

2шт.

O7042AB

X

CONE - (Timken #29685) Outer, for F78564 wheel hub

2шт.

O7043AB

X

CUP (Timken #29620) Outer, for F78564 wheel hub

2шт.

O7223AB

X

STUD - wheel rim

12шт.

O7243AB

X

NUT - wheel rim

12шт.

O2109CS

X

CLAMP - wheel rim

12шт.
