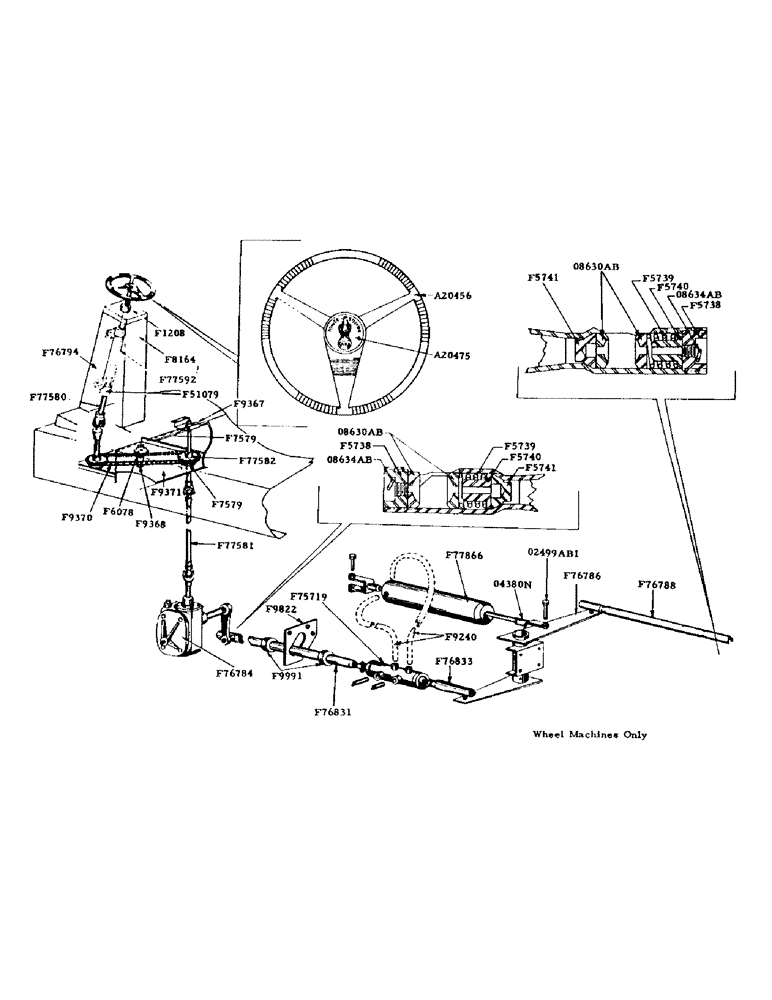

Запчасти Case IH 1000 (14[2]) - PARTS FOR DRAG LINKS F76788, F76831, F76833 (27) - REAR AXLE SYSTEM

A20456

WHEEL (STEERING)

WHEEL - steering

1шт.

A20475

CAP

MEDALLION - steering wheel

1шт.

F1208

CAP - steering column

1шт.

1/4" x 3/4" N.C. rd. hd. mach. screw w/hex. nut and lockwasher

4шт.

F6078

SPROCKET ASSY.

SPROCKET (17T) Idler

1шт.

5/8" x 1-3/4" carr. bolt w/hex. nut, lockwasher and plain washer

1шт.

F7579

X

BEARING (Aetna #AG-1100-P) Steering shaft

3шт.

5/16" x 5/8" carr. bolt w/hex. nut and lockwasher

9шт.

F8164

PANEL - rear, steering column

1шт.

1/4" x 3/8" N.C. rd. hd. mach. screw w/lockwasher

8шт.

F9367

BRACKET - bearing holder

1шт.

5/16" x 5/8" carr. bolt w/hex. nut and lockwasher

3шт.

F9368

BRACKET - idler

1шт.

5/16" x 5/8" N.F. hex. bolt w/hex. nut and lockwasher

2шт.

F9370

CHAIN - steering control drive (Use 1-B12474 chain, 1-B12475 chain and 2-B12506 offset link #50)

1шт.

F9371

SUPPORT - floor, steering shafts and bearings

1шт.

5/16" x 1/2" N.F. hex. bolt w/hex. nut and lockwasher

6шт.

F40034

KEY

("A" Woodruff) For F77582 sprocket

2шт.

F51079

NEEDLE BEARING

BEARING - (J.H. #1616-O.H.) Steering column support

2шт.

F76784

STEERING UNIT ASSEMBLY, complete

1шт.

1/2" x 1-1/2" N.F. hex. bolt w/hex. nut and lockwasher

2шт.

F76794

COLUMN - steering

1шт.

1/4" x 1/2" N.F. hex. bolt w/hex. nut and lockwasher

4шт.

1/4" x 5/8" N.F. hex. bolt w/hex. nut and lockwasher

2шт.

F77580

STEERING SHAFT, upper

1шт.

3/16" x 1-3/4" cotter pin

1шт.

F77581

STEERING SHAFT - lower

1шт.

3/16" x 1-3/4" cotter pin

2шт.

F77582

SPROCKET (20T) Steering control drive

2шт.

1/4" x 3/4" N.C. sq. hd. cup pt. set screw w/jam nut

2шт.

F77592

SUPPORT - bearing holder, upper steering shaft (Includes 2-F51079 bearings)

1шт.

5/16" x 3/4" carr. bolt w/hex. nut, lockwasher and plain washer

4шт.

1/8" str. Lincoln fitting #5000

1шт.

O10984AB

X

"O" RING - steering wheel medallion (Not shown)

1шт.

O728L

X

WASHER (21/32" sq. x 1/8" x 1-3/4") Idler sprocket (Not shown)

1шт.

F7510

NUT - jam (11/16" -18 N.F.) For F76831 drag link

1шт.

F9240

HOSE,0.25" ID x 36.00", SAE 100R1

- Hydraulic, From valve to cylinder 0.25" ID x 36.00", SAE 100R1

2шт.

F9822

GUIDE - drag link

1шт.

3/8" x 3/4" N.F. hex. bolt w/hex. nut and lockwasher

3шт.

F9991

COLLAR - stop, drag link

2шт.

F75719

VALVE - for steering drag link

1шт.

F76786

ARM - steering pivot

1шт.

1/8" str. Lincoln fitting #5000

1шт.

F76788

LINK - drag, rear

1шт.

1/8" str. Lincoln fitting #5000

2шт.

F76831

LINK - drag, front (See F7510)

1шт.

1/8" str. Lincoln fitting #5000

1шт.

F76833

SOCKET - steering valve

1шт.

1/8" str. Lincoln fitting #5000

1шт.

F77866

LOCK NUT

CYLINDER - power steering

1шт.

5/8" N.F. hex. jam nut

2шт.

O2499AB1

X

PIN - clevis, for O4380N clevis

2шт.

1/8" x 1" cotter pin

2шт.

O4380N

CLEVIS

- each end of F77866 cylinder

2шт.

F5738

SCREW ADJUSTING (F76788)

2шт.

F5738

SCREW ADJUSTING (F76831, F76833)

1шт.

F5739

SPRING (F76788)

2шт.

F5739

SPRING (F76831, F76833)

1шт.

F5740

SUPPORT - spring (F76788)

2шт.

F5740

SUPPORT - spring (F76831, F76833)

1шт.

F5741

STOP - spring (F76788)

2шт.

F5741

STOP - spring (F76831, F76833)

1шт.

O8630AB

X

BEARING (F76788)

4шт.

O8630AB

X

BEARING (F76831, F76833)

2шт.

O8634AB

X

WIRE - lock (F76788)

2шт.

O8634AB

X

WIRE - lock (F76831, F76833)

1шт.
