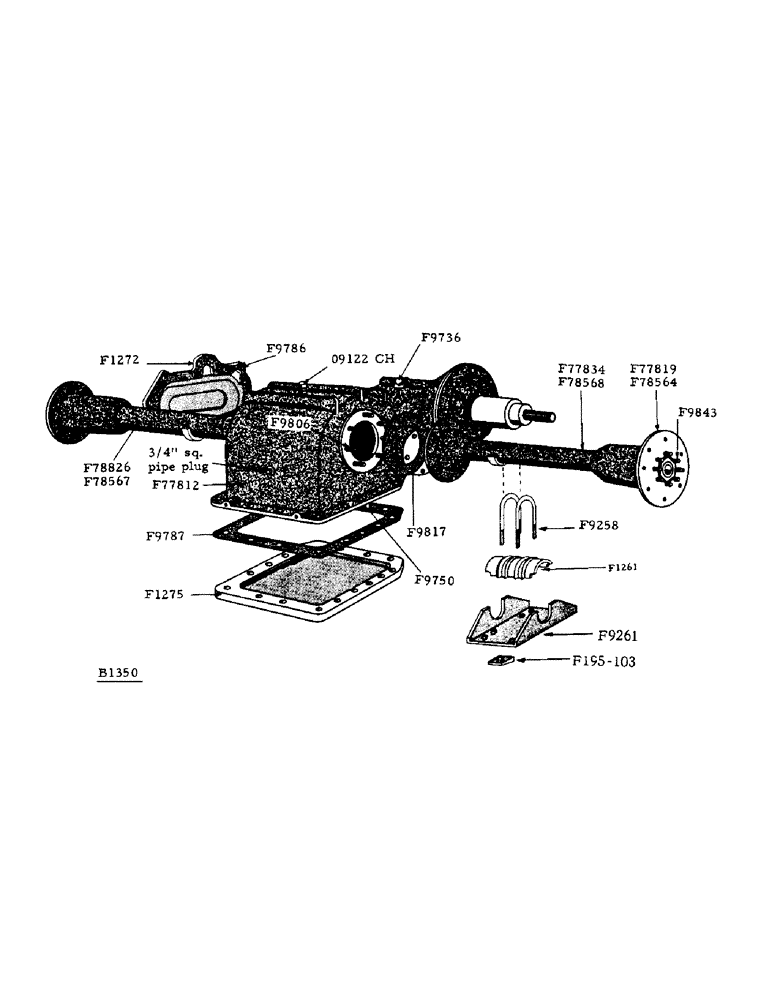

Запчасти Case IH 1000 (11) - TRANSMISSION CASE AND AXLE HOUSING (21) - TRANSMISSION

F1261

REINFORCEMENT - axle mounting

2шт.

F1272

COVER - side, case

1шт.

3/8" x 1" N.C. hex. hd. cap screw w/lockwasher

10шт.

F1275

COVER - transmission case, lower

1шт.

3/4" sq. hd. pipe plug

1шт.

1/2" x 2-1/4" N.F. hex. hd. cap screw w/hex. nut and lockwasher

13шт.

1/2" x 1-3/4" N.C. hex. hd. cap screw w/lockwasher

5шт.

F9258

"U" BOLT - axle mounting, front

2шт.

5/8" N.F. hex. nut and lockwasher

4шт.

F9261

BRACKET, axle mounting (Before no. 8182601)

2шт.

5/8" x 1-1/2" N.F. hex. bolt w/hex. nut and lockwasher

4шт.

5/8" x 2" N.F. hex. bolt w/hex. nut and lockwasher

4шт.

F9736

SCREW - gear shift lock ball spring

2шт.

F9750

STUD - transmission case cover

2шт.

F9786

GASKET - for F1272 cover

1шт.

F9787

GASKET - transmission case cover

1шт.

F9806

STUD - transmission case to axle housing

16шт.

9/16" N.F. hex. nut and lockwasher

16шт.

F9817

GASKET - axle, Serial Range: housing-case

1шт.

F9821

SLEEVE - for transmission case (Not shown)

2шт.

F9843

X

STUD - wheel hub (7/16" thread both ends)

16шт.

F77812

CASE - transmission w/F9821 sleeve

1шт.

F77819

HUB - wheel (Includes 1-F9803 cup and 1-O3755AB cup) Before no. 8182601 (See F78564)

2шт.

F77826

HOUSING - axle, R.H. (Before no. 8182601) See F78567

1шт.

F77834

HOUSING - axle, L.H. (Before no. 8182601) See F78568

1шт.

F78564

HUB - wheel (Includes 1-O7043AB cup and 1-F9803 cup) (After no. 8182601 See F77819

2шт.

F78567

HOUSING - axle, R.H. (After no. 8182601) See F77826

1шт.

F78568

HOUSING - axle, L.H. (After no. 8182601) See F77834

1шт.

O9122CH

BREATHER - transmission case

1шт.

F195-103

WASHER - bevel, "U" bolt (Replaces F1251 when those stocks are exhausted)

8шт.

F3110

GEAR (28T) drive, intermediate shaft F9798 (Replaces F3104), sliding shaft

1шт.

F3111

GEAR (35T) driven change (Replaces F3105), transmission, intermediate shaft

1шт.
