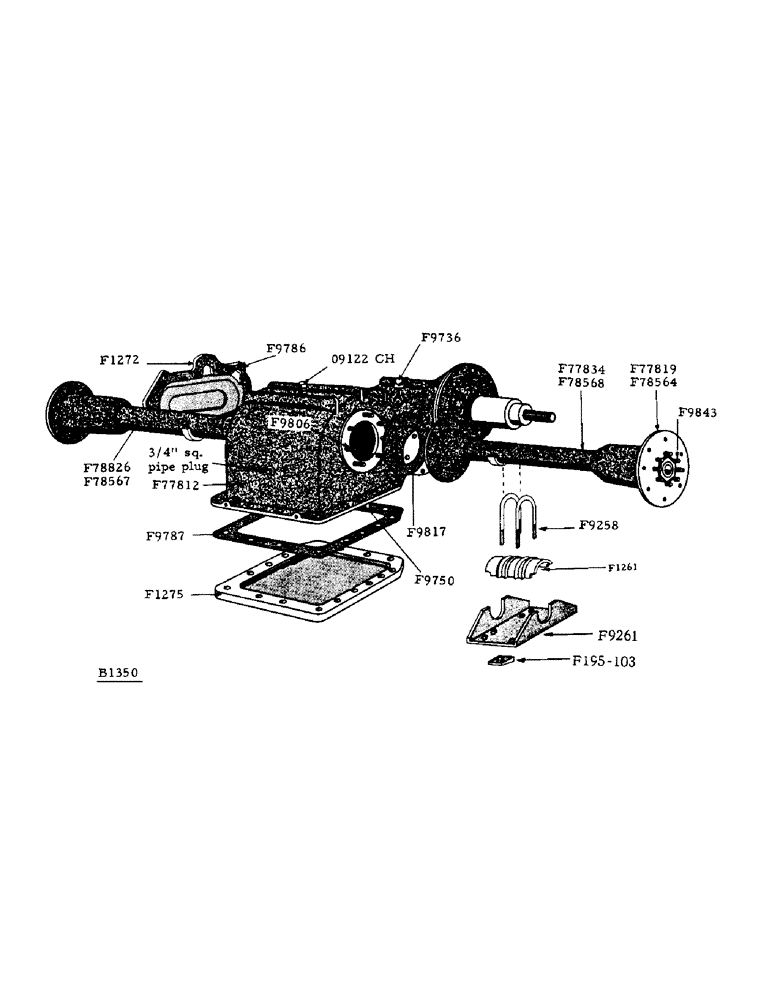

Запчасти Case IH 1000 (11[1]) - SLIDING GEAR SHAFT (21) - TRANSMISSION

F1261

REINFORCEMENT - axle mounting

2шт.

F1272

COVER - side, case

1шт.

3/8" x 1" N.C. hex. hd. cap screw w/lockwasher

10шт.

F1275

COVER - transmission case, lower

1шт.

3/4" sq. hd. pipe plug

1шт.

1/2" x 2-1/4" N.F. hex. hd. cap screw w/hex. nut and lockwasher

13шт.

1/2" x 1-3/4" N.C. hex. hd. cap screw w/lockwasher

5шт.

F9258

"U" BOLT - axle mounting, front

2шт.

5/8" N.F. hex. nut and lockwasher

4шт.

F9261

BRACKET, axle mounting (Before no. 8182601)

2шт.

5/8" x 1-1/2" N.F. hex. bolt w/hex. nut and lockwasher

4шт.

5/8" x 2" N.F. hex. bolt w/hex. nut and lockwasher

4шт.

F9736

SCREW - gear shift lock ball spring

2шт.

F9750

STUD - transmission case cover

2шт.

F9786

GASKET - for F1272 cover

1шт.

F9787

GASKET - transmission case cover

1шт.

F9806

STUD - transmission case to axle housing

16шт.

9/16" N.F. hex. nut and lockwasher

16шт.

F9817

GASKET - axle, Serial Range: housing-case

1шт.

F9821

SLEEVE - for transmission case (Not shown)

2шт.

F9843

X

STUD - wheel hub (7/16" thread both ends)

16шт.

F77812

CASE - transmission w/F9821 sleeve

1шт.

F77819

HUB - wheel (Includes 1-F9803 cup and 1-O3755AB cup) Before no. 8182601 (See F78564)

2шт.

F77826

HOUSING - axle, R.H. (Before no. 8182601) See F78567

1шт.

F77834

HOUSING - axle, L.H. (Before no. 8182601) See F78568

1шт.

F78564

HUB - wheel (Includes 1-O7043AB cup and 1-F9803 cup) (After no. 8182601 See F77819

2шт.

F78567

HOUSING - axle, R.H. (After no. 8182601) See F77826

1шт.

F78568

HOUSING - axle, L.H. (After no. 8182601) See F77834

1шт.

O9122CH

BREATHER - transmission case

1шт.

F195-103

WASHER - bevel, "U" bolt (Replaces F1251 when those stocks are exhausted)

8шт.

F3110

GEAR (28T) drive, intermediate shaft F9798 (Replaces F3104)

1шт.

F3111

GEAR (35T) driven change (Replaces F3105)

1шт.
