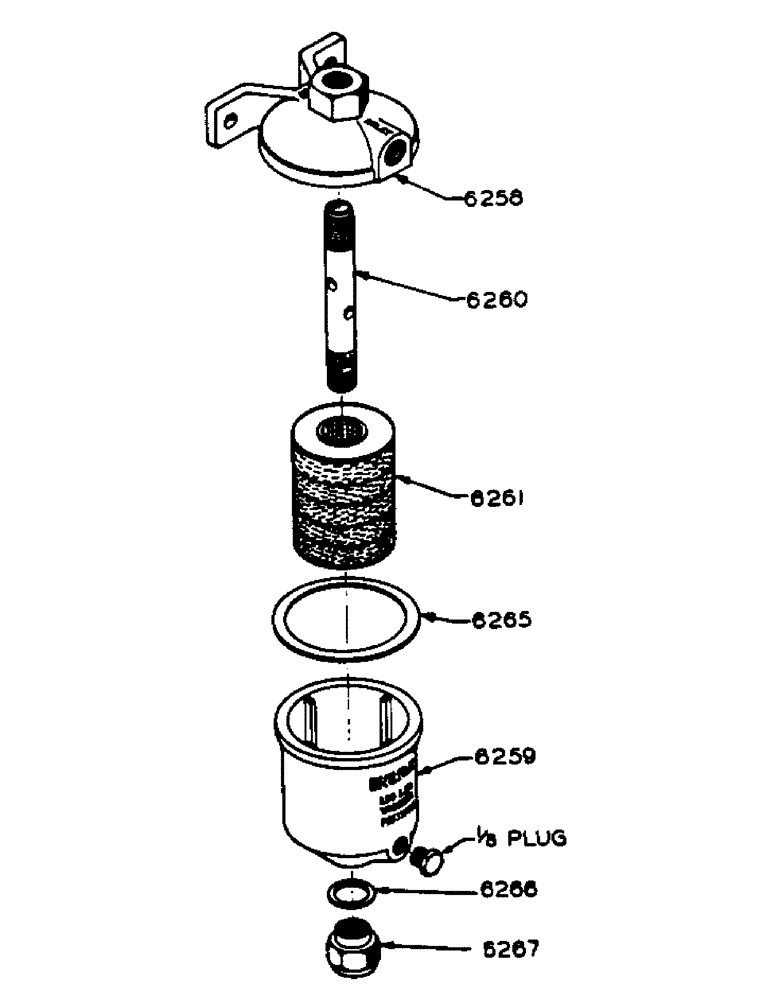

Запчасти Case IH 1000 (10[2]) - A20624 MARVEL, SCHEBLER CARBURETOR (10) - ENGINE

6258

BOLT

TOP - filter

1шт.

6259

PLOW BOLT

BOTTOM - filter

1шт.

1/8" pipe plug

1шт.

6260

SHAFT

STUD - filter

1шт.

6261

SHAFT

FILTER FELT - screen and washer assembly

1шт.

6265

GASKET - filter, Serial Range: top-bottom

1шт.

6266

GASKET - filter bowl

1шт.

6267

NUT - filter stud

1шт.

F10555

BUSHING

(3/4" long) 2-ea. for F77274 housing, 2-for F77276 and 2-for F77277 arms (Replaces F8660)

8шт.

F10556

BUSHING (1-1/2" long) 1-for F77276 and 1-for F77277 rocker arms (Replaces F8662)

2шт.

227-1648

BODY AND BOWL COVER ASSEMBLY - throttle (Replaces 227-1365)

1шт.

286-1270

KIT - service parts (Replaces 286-1076)

1шт.
