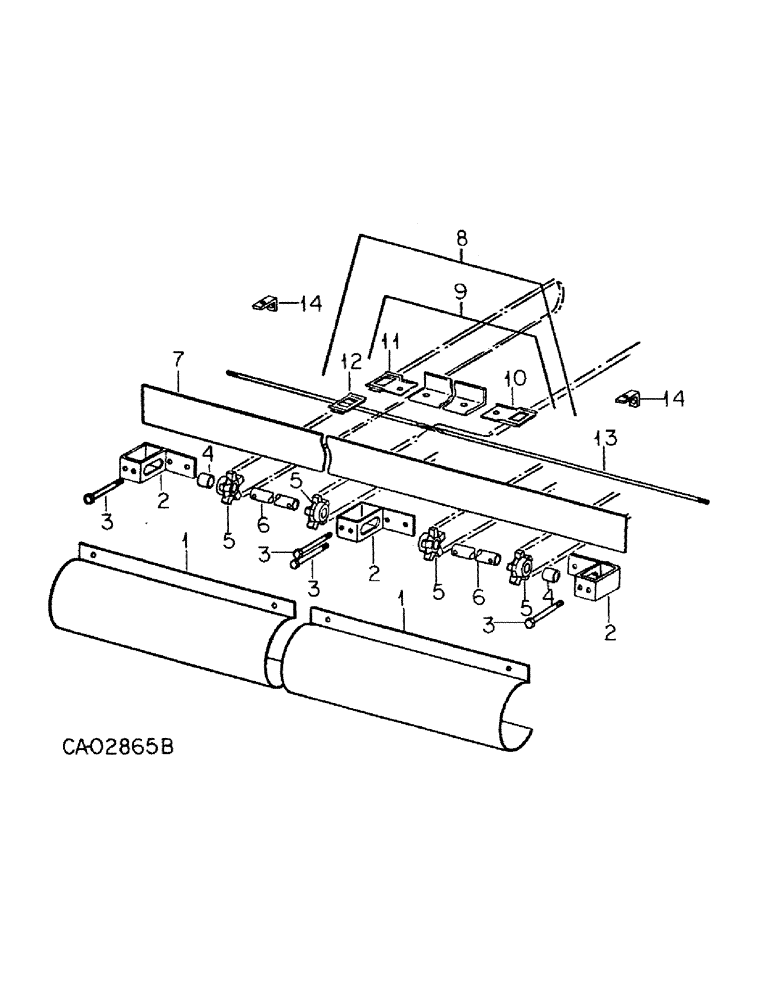

Запчасти Case IH 110 (D-10) - CONVEYOR CHAIN

1

58760C1

SHIELD, idler shaft, order guard assy, 73666C91, serial no. 4745 & below

2шт.

2

55707C1

BRACKET, center idler

3шт.

3

56062C1

SCREW

1/2-13 x 4 hex-hd cap full thd

4шт.

4

55709C1

SPACER,1 1/4" Pipe x 1 1/4"

1-5/8 x 1-1/4 std

2шт.

5

56065C1

SPROCKET ASSY.

SPROCKET, idler

4шт.

6

55710C1

TUBE

SHAFT, idler

2шт.

7

55720C2

STRIP

end gate rubber

1шт.

8

55705C91

CONVEYOR ASSY, chain, 14 ft and 16 ft machines

2шт.

8

55706C91

CONVEYOR ASSY, chain, 16 ft machines

2шт.

8

55384C91

CONVEYOR

ASSY, hv duty chain, 14 ft and 16 ft machines

2шт.

8

55722C91

CONVEYOR

ASSY, hv duty chain, 16 ft machines

2шт.

9

56064C1

SLAT ASSY, includes ref nos 10 and 11

1шт.

9

56063C1

SLAT

ASSY, hv duty, includes ref nos 10 and 11

1шт.

10

67HASR

LINK ASSY.

LINK, detachable att RT, 1 per slat

1шт.

10

67HASR

LINK ASSY.

LINK, detachable att RT hv duty, 1 per slat

1шт.

11

67HASL

LINK ASSY.

LINK, detachable att LT, 1 per slat

1шт.

11

67HASL

LINK ASSY.

LINK, detachable LT hv duty, 1 per slat

1шт.

12

67

LINK

CHAIN, 1 link from 10 ft roll marked, CS67

1шт.

12

67H

LINK

chain hv duty, 1 link from 10 ft roll marked, CS67H

1шт.

13

55718C1

ROD, tie, 6 for 14 ft, 7 for 16 ft

1шт.

14

76527C1

ANGLE, support rod, 1978 and above, 2 for 14 ft, 4 for 16 ft

1шт.
