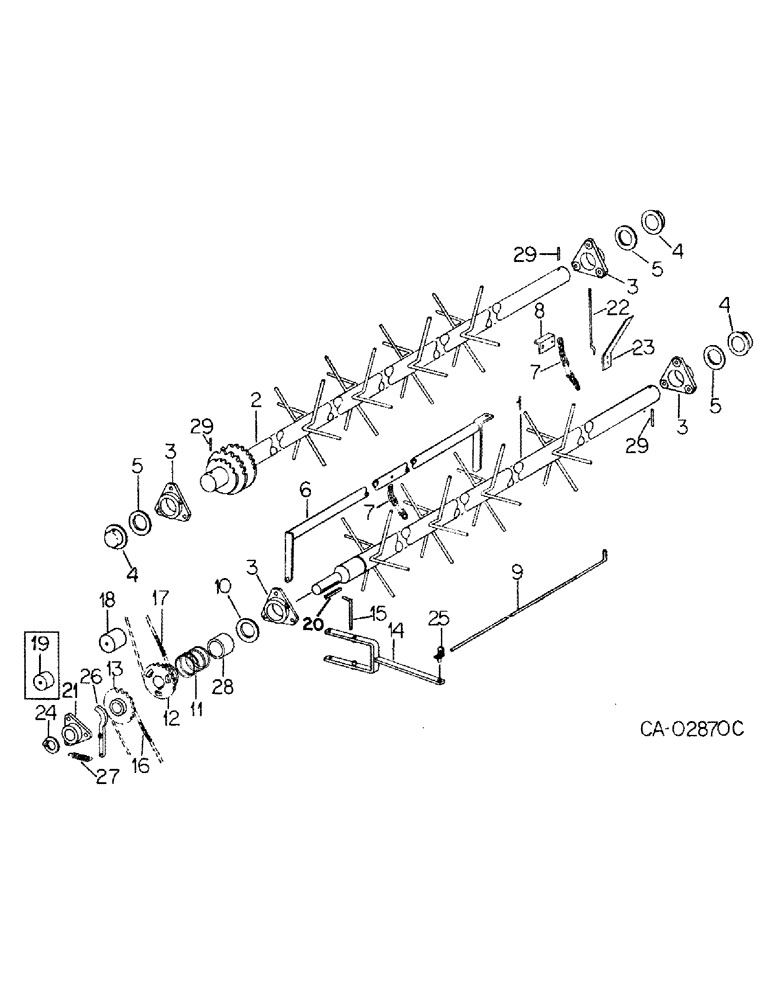

Запчасти Case IH 110 (D-06) - BEATERS AND CONNECTIONS

1

55756C2

BEATER

first

1шт.

2

55757C2

BEATER

second

1шт.

3

55765C1

FLANGE

BEARING, beater

4шт.

4

73662C91

CAP

ASSY, end, 2 in., replaces 55724C1

3шт.

5

22811R1

WASHER

2.031 x 2.750 x .067

3шт.

6

55758C1

HANDLE ASSY, trip clutch

1шт.

7

55067C1

CHAIN, safety trip

2шт.

8

55764C1

BRACKET, support rod

1шт.

9

55761C1

ROD, beater clutch control, serial no. 2319 & below

1шт.

9

61317C1

ROD, beater clutch control, serial no. 2320 7 above

1шт.

10

55904C1

WASHER, 1-3/4 x 2-1/2 x 14 ga

1шт.

11

55903C1

SPRING

beater clutch

1шт.

12

75407C1

DRIVE SPROCKET

SPROCKET, control replaces 55902C1 for machines w/serial no. 4745 & below by also ordering 75405C91

1шт.

13

75410C1

SPROCKET ASSY.

SPROCKET, idler replaces 55901C1 for machines w/serial no. 4745 & below by also ordering 75405C91, replaces 117074C1 for machines w/serial no. 4746-5100 by also ordering 75406C91

1шт.

14

55754C1

SUPPORT

HANDLE, beater clutch

1шт.

15

55905C1

PIN

beater clutch pivot

1шт.

16

CHAIN, first beater drive, use eighty-three links from 10 ft roll marked, 1791D, and one connecting link 1310D

1шт.

17

CHAIN, second beater drive, use forty-one links from 10 ft roll marked 569089R91 and one connecting link 587372R91

1шт.

18

55909C1

BOARD

ROLLER, tightener

1шт.

19

55727C1

BOARD

ROLLER, serial no. 4745 and below

3шт.

20

124553

WOODRUFF KEY,#15, 1/4" x 1", HT

4шт.

21

55912C1

FLANGE

BEARING, flange

1шт.

22

55723C1

ROD, support

1шт.

23

55719C1

BRACKET, support rod, 1977 and below

1шт.

23

76521C1

SUPPORT, rod, bracket, 1978 and above

1шт.

24

73663C91

COLLAR

ASSY, shaft, 1-1/4 in., replaces 55899C1

1шт.

25

55759C1

BRACKET

ROD, bracket clutch control

1шт.

26

117076C1

SUPPORT

TIGHTENER, serial no. 4745 & above

1шт.

27

117077C1

SPRING

serial no. 4745 & above

1шт.

28

75409C1

BUSHING

serial no. 5101 & above

1шт.

29

455183R1

LOCK PIN,5/16" x 2 1/2", Slotted

Pin, 5/16" x 2 1/2", Slotted

3шт.

75405C91

SET

beater clutch gear no. 50 chain, consists of

1шт.

75410C1

SPROCKET ASSY.

SPROCKET, idler, 20T

1шт.

75407C1

DRIVE SPROCKET

SPROCKET, control

1шт.

75406C91

SET

beater clutch gear no. 60 chain, consists of

1шт.

75408C1

SPROCKET ASSY.

SPROCKET, idler 20T

1шт.

75407C1

DRIVE SPROCKET

SPROCKET, control

1шт.
