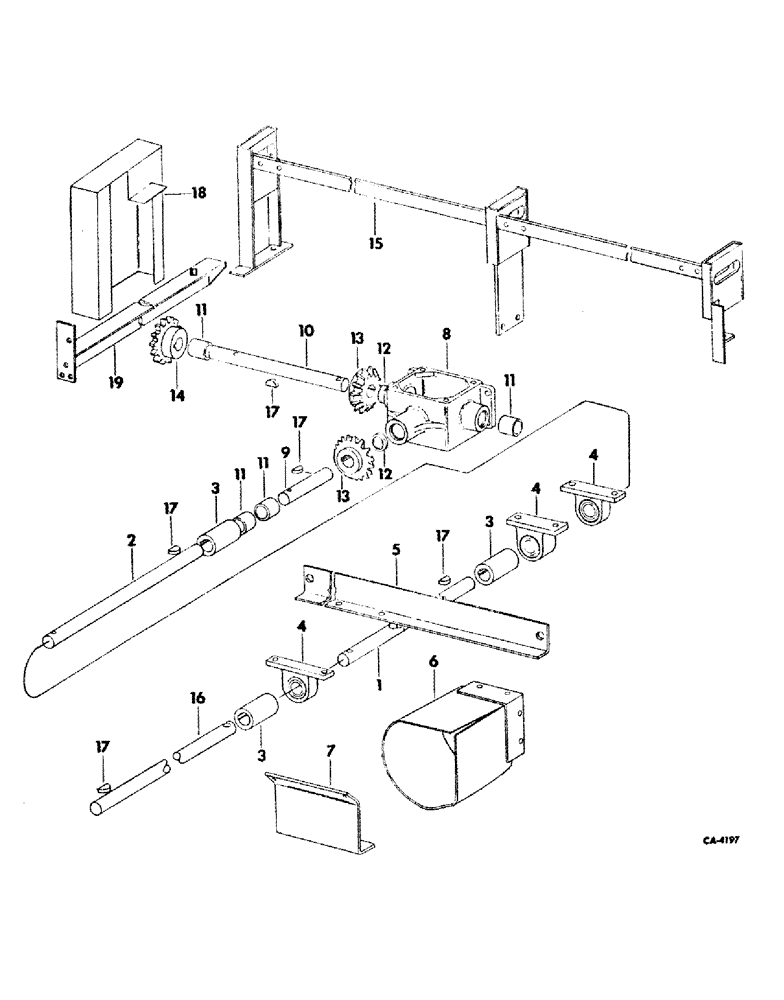

Запчасти Case IH 110 (D-21) - DRIVE AND CONNECTIONS, FOR BOXES W/PIT FILLER ATTACHMENT

1

60588C1

SHAFT, drive line, 63 in., 14 ft

1шт.

2

60589C1

SHAFT, drive line, 87 in., 1 for 14 ft, 2 for 16 ft

1шт.

3

60593C1

CONNECTOR

3шт.

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

SCREW, 5/16-18 x 2 znd hex-hd cap

3шт.

4

60575C91

BEARING, pillow block

4шт.

5

60587C1

MOUNT, bearing, 36 in.

3шт.

6

58759C1

SHIELD

PTO, 1977 and below

1шт.

6

76516C1

SHIELD, PTO, 1978 and above

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 type 1

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

7

60586C1

BRACKET, front bearing

1шт.

8

55916C1

CASE

W/BUSHINGS, gear

1шт.

9

55777C1

SHAFT

gear box input

1шт.

10

56074C1

SHAFT

gear box cross

1шт.

11

55702C1

BUSHING

bronze

4шт.

12

697494R91

OIL SEAL

SEAL, oil

3шт.

13

55695C1

GEAR

miter, 14 T

2шт.

14

60577C1

SPROCKET

1шт.

15

60570C2

FRAME ASSY, drive shaft mounting

1шт.

16

60591C1

SHAFT, drive line, 20 in.

1шт.

17

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

KEY, 1/4 x 1 Woodruff, 5 for 14 ft., 6 for 16 ft.

1шт.

18

60590C1

SHIELD ASSY, final drive

1шт.

19

101361C1

ANGLE ASSY, support

1шт.
