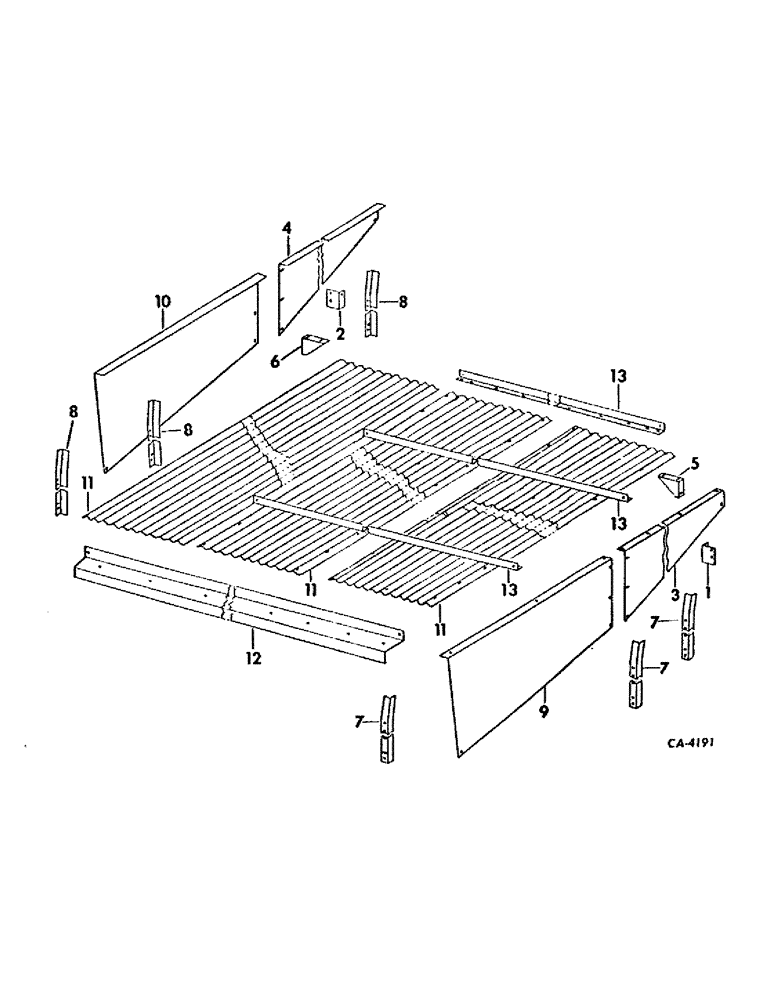

Запчасти Case IH 110 (D-12) - ROOF AND SUPPORTS, RIBBED TYPE

1

55660C1

PIVOT, roof LH

1шт.

2

55660C1

PIVOT, roof RH

1шт.

3

55662C2

PANEL, LH rear side

1шт.

4

55663C2

PANEL, RH rear side

1шт.

5

55664C2

SUPPORT, LH rear roof

1шт.

6

55665C2

SUPPORT, RH rear roof

1шт.

7

55666C2

SUPPORT, LH roof

2шт.

8

55667C2

SUPPORT, RH roof

2шт.

9

55670C2

PANEL, LH front side, 14 ft

1шт.

9

55671C2

PANEL, LH front side, 16 ft

1шт.

10

55668C2

PANEL, RH front side, 14 ft

1шт.

10

55669C2

PANEL

RH front side, 16 ft

1шт.

11

61867C1

SHEET, roof, 14 ft

3шт.

11

61868C1

SHEET, roof, 16 ft

3шт.

12

55679C2

BRACE

front cross

1шт.

13

55678C2

BRACE, center cross

3шт.
