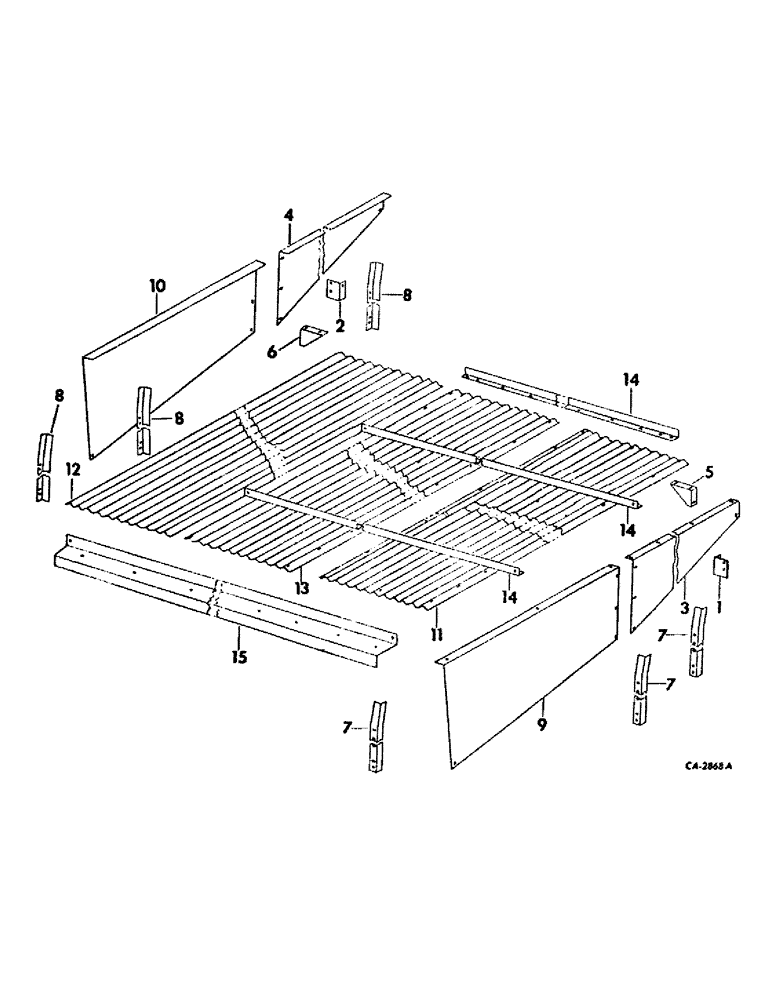

Запчасти Case IH 110 (D-11) - ROOF AND SUPPORTS, CORRUGATED TYPE

1

55660C1

PIVOT, roof LH

1шт.

2

55660C1

PIVOT, roof RH

1шт.

3

55662C2

PANEL, LH rear side

1шт.

4

55663C2

PANEL, RH rear side

1шт.

5

55664C2

SUPPORT, LH rear roof

1шт.

6

55665C2

SUPPORT, RH rear roof

1шт.

7

55666C2

SUPPORT, LH roof

2шт.

8

55667C2

SUPPORT, RH roof

2шт.

9

55670C2

PANEL, LH front side, 14 ft

1шт.

9

55671C2

PANEL, LH front side, 16 ft

1шт.

10

55668C2

PANEL, RH front side, 14 ft

1шт.

10

55669C2

PANEL

RH front side, 16 ft

1шт.

11

55676C2

SHEET, LH roof, 14 ft

1шт.

11

55677C2

SHEET, LH roof, 16 ft

1шт.

12

55672C2

SHEET, RH roof, 14 ft

1шт.

12

55673C2

SHEET, RH roof, 16 ft

1шт.

13

55674C2

SHEET, center roof, 14 ft

1шт.

13

55675C2

SHEET, center roof, 16 ft

1шт.

14

55678C2

BRACE, center cross

3шт.

15

55679C2

BRACE

front cross

1шт.
