(C-07[A]) - BEATER AND DRIVE COVERS, SERIAL NO. 2526 AND ABOVE

Запчасти Case IH 105 (C-07[A]) - BEATER AND DRIVE COVERS, SERIAL NO. 2526 AND ABOVE

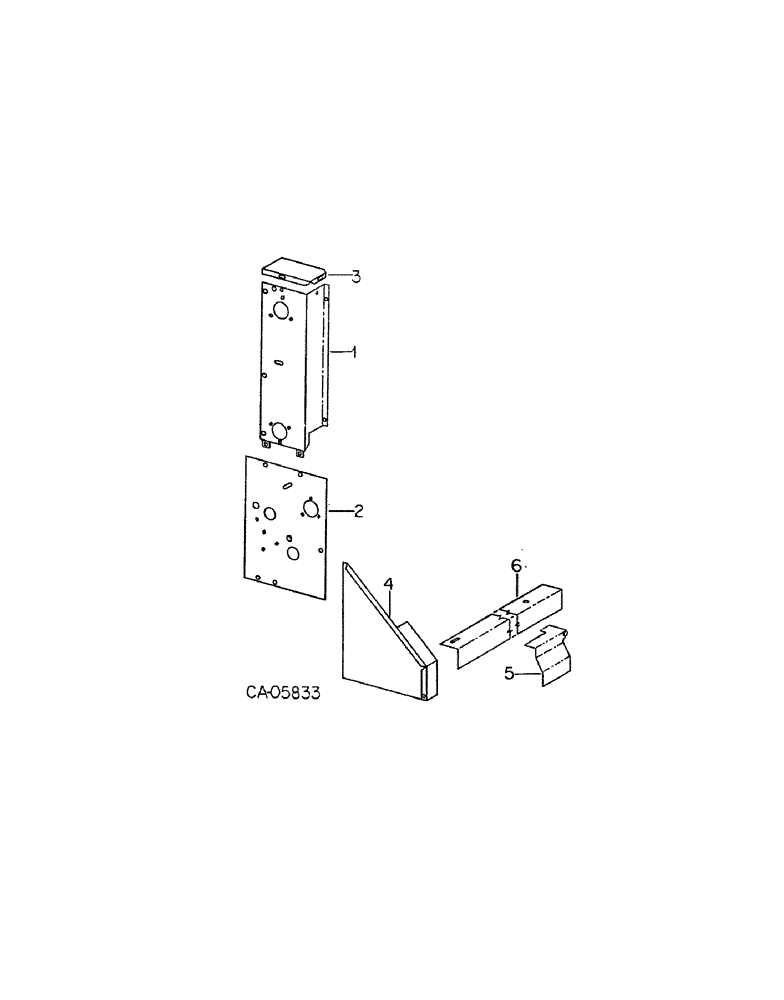

Схема запчастей Case IH 105 - (C-07[A]) - BEATER AND DRIVE COVERS, SERIAL NO. 2526 AND ABOVE
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

55910C1

HOUSING, beater drive

1шт.

2

73664C1

PANEL, outer lower

1шт.

3

55911C1

COVER, beater housing

1шт.

4

73665C1

COVER, drive

1шт.

5

55769C1

GUARD, hinged

1шт.

6

55737C1

GUARD, front cross shaft

1шт.

Выбрано товаров: 6
