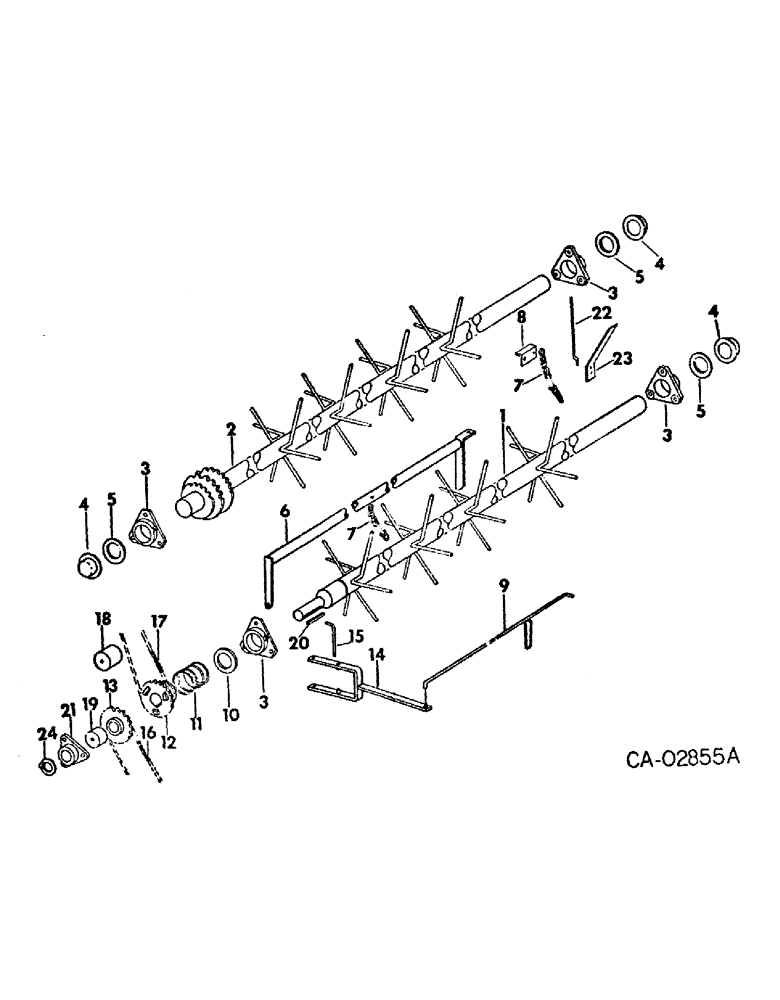

Запчасти Case IH 105 (C-06) - BEATERS AND CONNECTIONS

1

55756C2

BEATER

first

1шт.

2

55757C2

BEATER

second

1шт.

3

55765C1

FLANGE

BEARING, beater

4шт.

4

73662C91

CAP

ASSY, end, 2 in., replaces 55724C1

3шт.

5

Q3491

WASHER, 2-1/32 x 2.75 x .075

3шт.

6

55758C1

HANDLE ASSY, trip clutch

1шт.

7

56067C1

CHAIN, safety trip

2шт.

8

55764C1

BRACKET, support rod

1шт.

9

55731C1

ROD ASSY, beater control, serial no. 1462 & below

1шт.

9

61319C1

ROD ASSY, beater control, serial no. 1463 & above

1шт.

10

55904C1

WASHER, 1-3/4 x 2-1/2 x 14 ga

1шт.

11

55903C1

SPRING

beater clutch

1шт.

12

55902C1

SPROCKET, control

1шт.

13

55901C1

SPROCKET ASSY.

SPROCKET, idler

1шт.

14

55754C1

SUPPORT

HANDLE, beater clutch

1шт.

15

55905C1

PIN

beater clutch pivot

1шт.

16

CHAIN, first beater drive, use forty-seven links from 10 ft roll marked, 1791D, and one connecting link, 1310D

1шт.

17

CHAIN, second beater drive, use forty-one links from 10 ft roll marked, 569089R91, and one connecting link, 587372R91

1шт.

18

55909C1

BOARD

ROLLER, tightener

1шт.

19

55727C1

BOARD

ROLLER

1шт.

20

124553

WOODRUFF KEY,#15, 1/4" x 1", HT

4шт.

21

55912C1

FLANGE

BEARING, flange

1шт.

22

55723C1

ROD, support

1шт.

23

55719C1

BRACKET, support rod

1шт.

24

73663C91

COLLAR

ASSY, shaft, 1-1/4 in., replaces 55899C1

1шт.

22945R1

Pin, Split (Cotter), 5/16" x 1 1/2" 5/16" x 1 1/2"

1шт.
