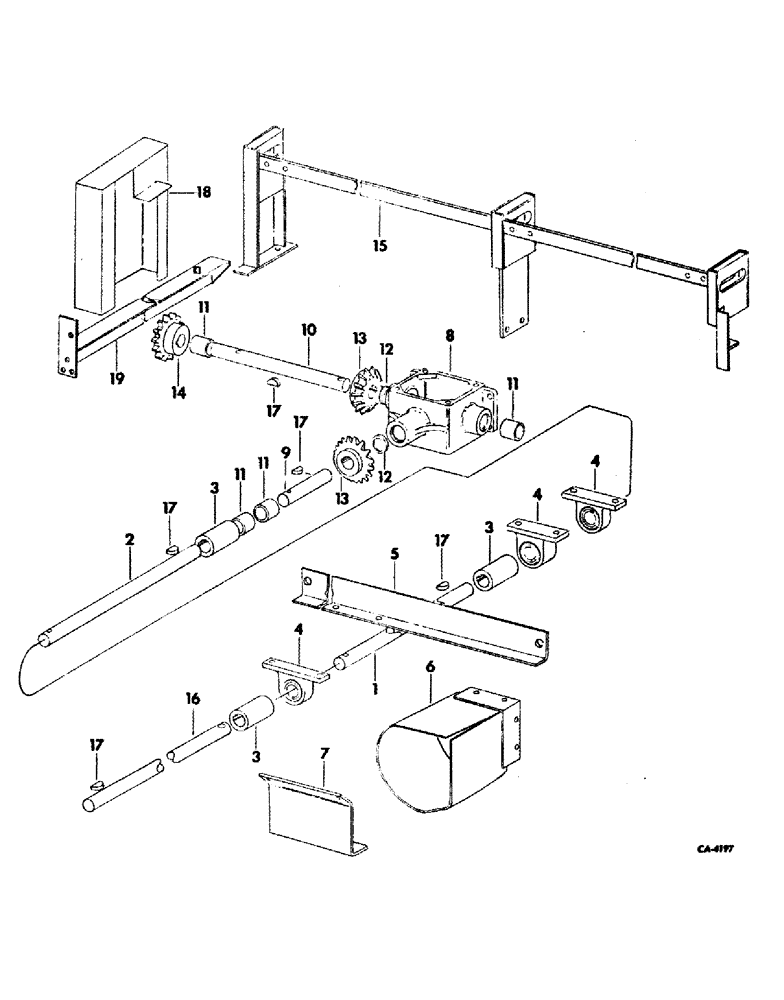

Запчасти Case IH 105 (C-20) - DRIVE AND CONNECTIONS, FOR BOXES W/PIT FILLER ATTACHMENT

1

60588C1

SHAFT, drive line, 63 in., 14 ft

1шт.

2

60589C1

SHAFT, drive line, 87 in. 1 for 14 ft, 2 for 16 ft

1шт.

3

60593C1

CONNECTOR

3шт.

180087

SPRING

SCREW, 5/16-18 x 2 znd hex-hd cap

3шт.

4

60575C91

BEARING, pillow block

4шт.

5

60587C1

MOUNT, bearing, 36 in.

3шт.

6

58759C1

SHIELD

PTO

1шт.

7

60586C1

BRACKET, front bearing

1шт.

8

76515C1

CASE

W/BUSHINGS, gear

1шт.

9

55777C1

SHAFT

gear box input

1шт.

10

56074C1

SHAFT

gear box cross

1шт.

11

55702C1

BUSHING

bronze

4шт.

12

697494R91

OIL SEAL

SEAL, oil

3шт.

13

55695C1

GEAR

miter, 14 T

2шт.

192450

SET SCREW,Hex Soc, 5/16"-18 x 5/16"

SCREW, 5/16 x 5/16 c/pt znp hdl/s set

4шт.

14

63724C1

SPROCKET

1шт.

15

60570C2

FRAME ASSY, drive shaft mounting

1шт.

16

60591C1

SHAFT, drive line, 20 in.

1шт.

17

124553

WOODRUFF KEY,#15, 1/4" x 1", HT

5 for 14 ft., 6 for 16 ft. #15, 1/4" x 1", HT

1шт.

18

60590C1

SHIELD ASSY, final drive

1шт.

19

101361C1

ANGLE ASSY, support

1шт.
