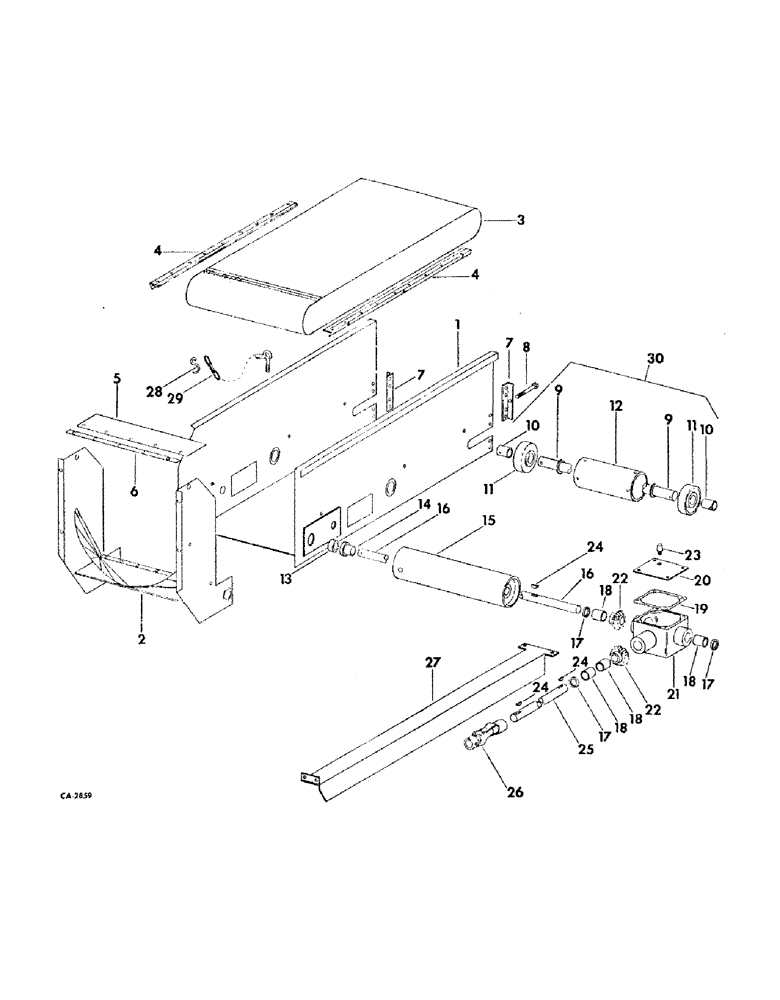

Запчасти Case IH 105 (C-13) - FOLDING BUNK FEEDER

1

55684C1

HOUSING, extension

1шт.

2

55685C1

ADAPTOR, 42 in. elevator

1шт.

3

55686C1

APRON

1шт.

4

55687C1

STRIP ASSY, rubber

2шт.

5

56071C1

STRIP, rubber

1шт.

6

56072C1

STRIP, backing

1шт.

7

55703C1

SUPPORT, shaft

2шт.

8

56061C1

SCREW, 3/8-16 x 6 hex-hd cap full-thd

2шт.

9

55688C1

SHAFT, idler

1шт.

10

56069C1

BUSHING

2шт.

11

55689C91

BEARING, idler

2шт.

12

55704C1

TUBE, idler roller

1шт.

13

55690C1

COLLAR, shaft

1шт.

14

55691C91

BEARING ASSY, drive shaft

1шт.

15

55692C1

ROLLER, drive

1шт.

16

55693C1

SHAFT, apron drive

1шт.

617941R1

PIN,5/16" x 2", Coiled

1шт.

17

697494R91

OIL SEAL

SEAL, oil

3шт.

18

55702C1

BUSHING

4шт.

19

55735C1

GASKET

cover

1шт.

20

56070C1

COVER, gear box

1шт.

21

55694C1

BOX, gear

1шт.

22

55695C1

GEAR

miter

2шт.

23

55696C1

PLUG, breather

1шт.

24

124553

WOODRUFF KEY,#15, 1/4" x 1", HT

3шт.

25

55697C1

SHAFT, cross drive

1шт.

26

55698C91

JOINT, universal

1шт.

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, 1/8-27 PTF 90 deg angle lub

1шт.

617941R1

PIN,5/16" x 2", Coiled

2шт.

27

55699C1

GUARD, cross shaft

1шт.

28

520841R1

HOOK, S, replaces 55700C1

1шт.

29

55701C1

CHAIN AND EYEBOLT, lift

1шт.

30

56158C1

IDLER ASSY, consists of ref nos 9 thru 12

1шт.
