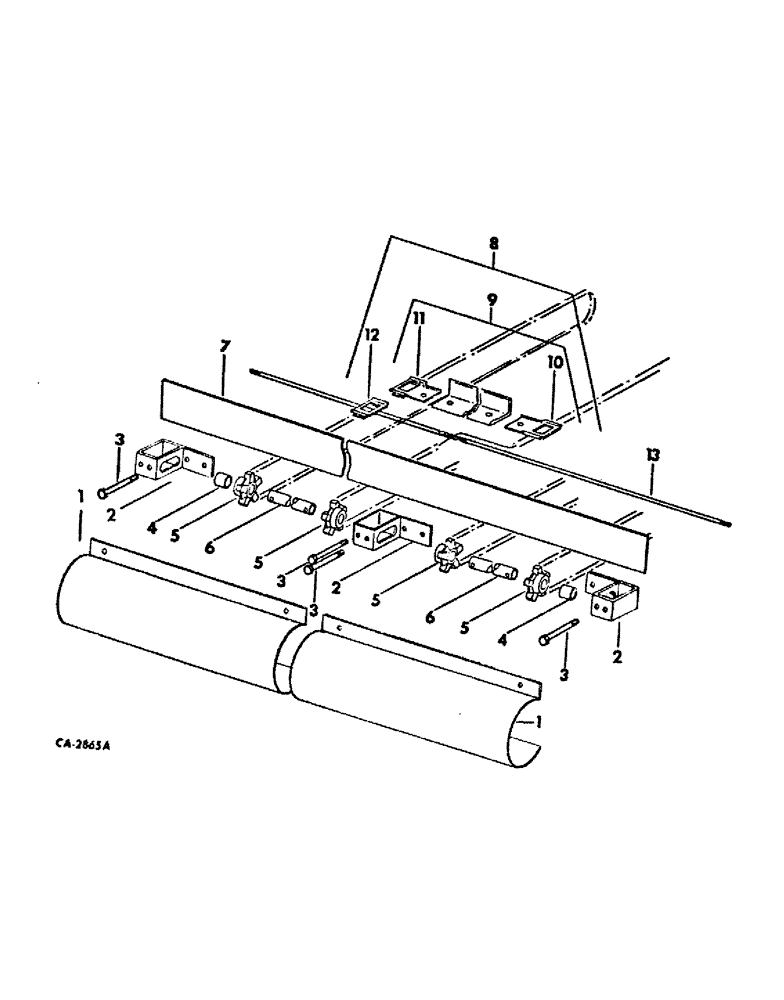

Запчасти Case IH 105 (C-09) - CONVEYOR CHAIN

1

73666C91

SHIELD, idler shaft, replaces 58760C1

2шт.

2

55707C1

BRACKET, center idler

3шт.

3

56062C1

SCREW

1/2-13 x 4 hex-hd cap full-thd

4шт.

4

55709C1

SPACER,1 1/4" Pipe x 1 1/4"

1-5/8 x 1-1/4 std, pipe for idler shafts

2шт.

5

56065C1

SPROCKET ASSY.

SPROCKET, idler

4шт.

6

55710C1

TUBE

SHAFT, idler

2шт.

7

55720C2

STRIP

end gate rubber

1шт.

8

55705C91

CONVEYOR ASSY, chain, 14 ft and 16 ft machines

2шт.

8

55706C91

CONVEYOR ASSY, chain, 16 ft machines

2шт.

8

55384C91

CONVEYOR

ASSY, hv duty chain, 14 ft and 16 ft machines

2шт.

8

55722C91

CONVEYOR

ASSY, hv duty chain, 16 ft machines

2шт.

9

56064C1

SLAT ASSY, includes ref nos 10 and 11

1шт.

9

56063C1

SLAT

ASSY, hv duty, includes ref nos 10 and 11

1шт.

10

67HASR

LINK ASSY.

LINK, detachable att RT, 1 per slat

1шт.

10

67HASR

LINK ASSY.

LINK, detachable att RT hv duty, 1 per slat

1шт.

11

67HASL

LINK ASSY.

LINK, detachable att LT, 1 per slat

1шт.

11

67HASL

LINK ASSY.

LINK, detachable LT hv duty, 1 per slat

1шт.

12

67

LINK

chain, 1 link from 10 ft roll marked, CS67

1шт.

12

67H

LINK

chain hv duty, 1 link from 10 ft roll marked CS67H

1шт.

13

55718C1

ROD, tie, 6 for 14 ft, 7 for 16 ft

1шт.
