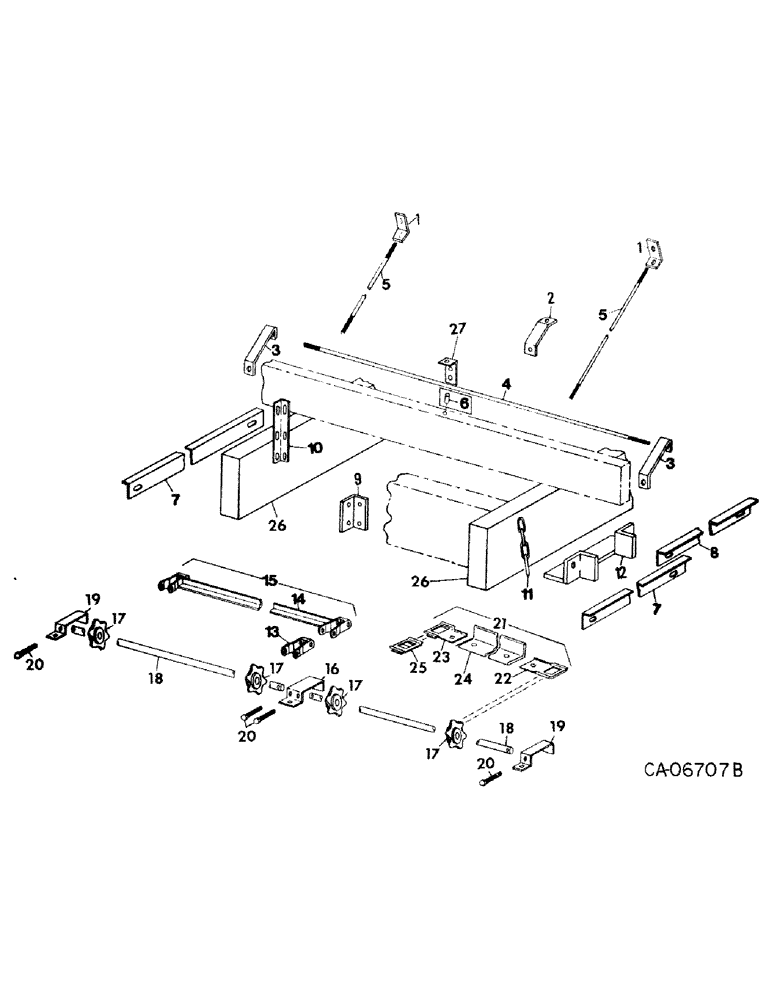

Запчасти Case IH 130 (H-08) - CONVEYOR

1

76527C1

ANGLE, support rod

2шт.

2

77151C1

BRACKET, hsg support

1шт.

3

77152C1

BRACKET, support rod

2шт.

4

55718C1

ROD, tie, (6) 18 ft machines, (5) 15 ft machines, (6) 16 ft machines

1шт.

5

77153C1

ROD, support

2шт.

6

77154C1

PIN, dowel, serial no. 00592 & below, (7) 18 ft machines, (6) 15 ft machines

1шт.

7

77155C1

RAIL, rub short, for 15 ft & 18 ft machines

2шт.

7

80144C1

ANGLE, rub, 16 ft machines

2шт.

8

77156C1

RAIL, rub long, 18 ft machines, 15 ft machines, 16 ft machines

2шт.

8

80145C1

ANGLE, rub extension, 16 ft machines

2шт.

9

77157C1

ANGLE, bolster brace, (8) 18 ft machines, (6) 15 ft machines, (8) 16 ft machines

1шт.

10

58546C1

BRACKET, support, (28) 18 ft machines, (24) 15 ft machines, (28) 16 ft machines

1шт.

11

56154C1

CHAIN, tie down

4шт.

12

56234C1

BRACKET, bolster

4шт.

13

77158C1

LINK, pintle, (386) 18 ft machines, (322) 15 ft machines

1шт.

13

821017C1

CHAIN LINK

LINK, 667H pintle connecting, (330) 16 ft machines

1шт.

821369C1

PIN,7.79mm OD x 47.93mm L

connecting link coupler, (804) 16 ft machines

1шт.

187352

COTTER PIN,1/8" x 3/4", Stainless

Pin, Split (Cotter), (804) 16 ft machines 1/8" x 3/4", Stainless

1шт.

821016C1

LINK,Chain

LINK, 667 HAS attaching, (72) 16 ft machines

1шт.

14

77159C1

SLAT

ASSY, pintle, (44) 18 ft machines, (36) 15 ft machines, (36) 16 ft machines

1шт.

15

77160C1

CONVEYOR, 18 ft. pintle

2шт.

15

77161C1

CONVEYOR, 15 ft. pintle

2шт.

15

79925C91

CONVEYOR

14 ft. pintle, 16 ft machines

2шт.

15

79926C91

APRON

CONVEYOR, 2 ft pintle, 16 ft machines

2шт.

16

77164C1

BRACKET, idler center

1шт.

17

77165C1

SPROCKET, idler

4шт.

18

77166C1

SHAFT, idler

2шт.

19

77167C1

BRACKET, idler side

2шт.

20

56062C1

SCREW

1/2-13 x 4 hex-hd cap

4шт.

21

145794C91

CONVEYOR ASSY, hv duty chain

1шт.

22

67HASR

LINK ASSY.

LINK, detachable att

1шт.

23

67HASL

LINK ASSY.

LINK, detachable att

1шт.

24

145740C1

SLAT

ASSY, apron

1шт.

25

67H

LINK

chain

1шт.

26

79698C1

BEAM, 15 ft

2шт.

26

79928C1

BEAM, 16 ft

2шт.

26

79699C1

BEAM, 18 ft

2шт.

27

79912C1

STRIP

SUPPORT, serial no. 00593 & above

3шт.
