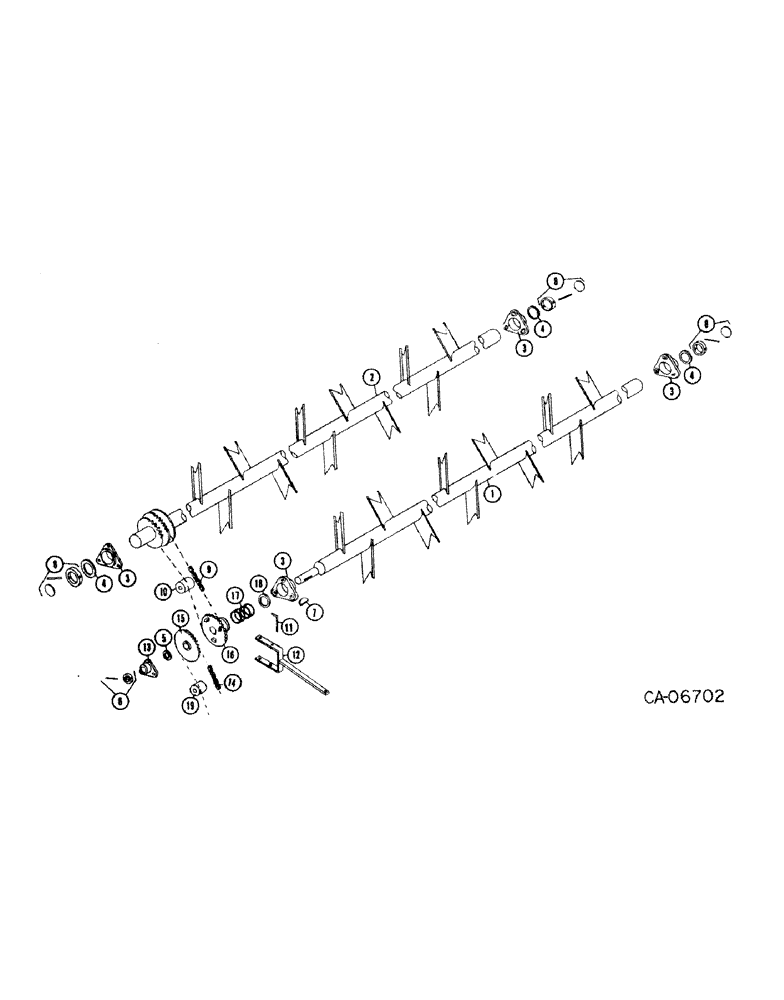

Запчасти Case IH 130 (H-06) - BEATER AND CONNECTIONS

1

55756C2

BEATER

first

1шт.

2

55757C2

BEATER

second

1шт.

3

55765C1

FLANGE

BEARING, beater

4шт.

4

22811R1

WASHER

2.031 x 2.750 x .067

3шт.

5

77256C1

WASHER, 1-1/4 x 1-1/2, (1 or as required)

1шт.

6

73663C91

COLLAR

beater

1шт.

7

124553

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

8

73662C91

CAP

COLLAR, beater

3шт.

9

CHAIN, use 41 links from 10 ft. roll marked 569089R91 plus 1 conn. link 587372R91

1шт.

587372R91

CONNECTING LINK

LINK, connecting

1шт.

10

55909C1

BOARD

TIGHTENER

1шт.

11

55905C1

PIN

pivot

1шт.

12

77141C1

HANDLE

beater clutch

1шт.

13

55912C1

FLANGE

BEARING, beater

1шт.

14

CHAIN, use 35 links from 10 ft. roll marked 569090R91 plus 1 off-set link 567009R91 & 1 conn. link 574532R91

1шт.

567009R91

CHAIN LINK

LINK, off-set

1шт.

574532R91

CLIP, SPRING

LINK, connecting

1шт.

15

75408C1

SPROCKET ASSY.

SPROCKET, idler

1шт.

16

75407C1

DRIVE SPROCKET

SPROCKET, control

1шт.

17

55903C1

SPRING

beater clutch

1шт.

18

55904C1

WASHER, 1-3/4 x 2-1/2 x 14 ga

1шт.

19

55727C1

BOARD

TIGHTENER

1шт.
