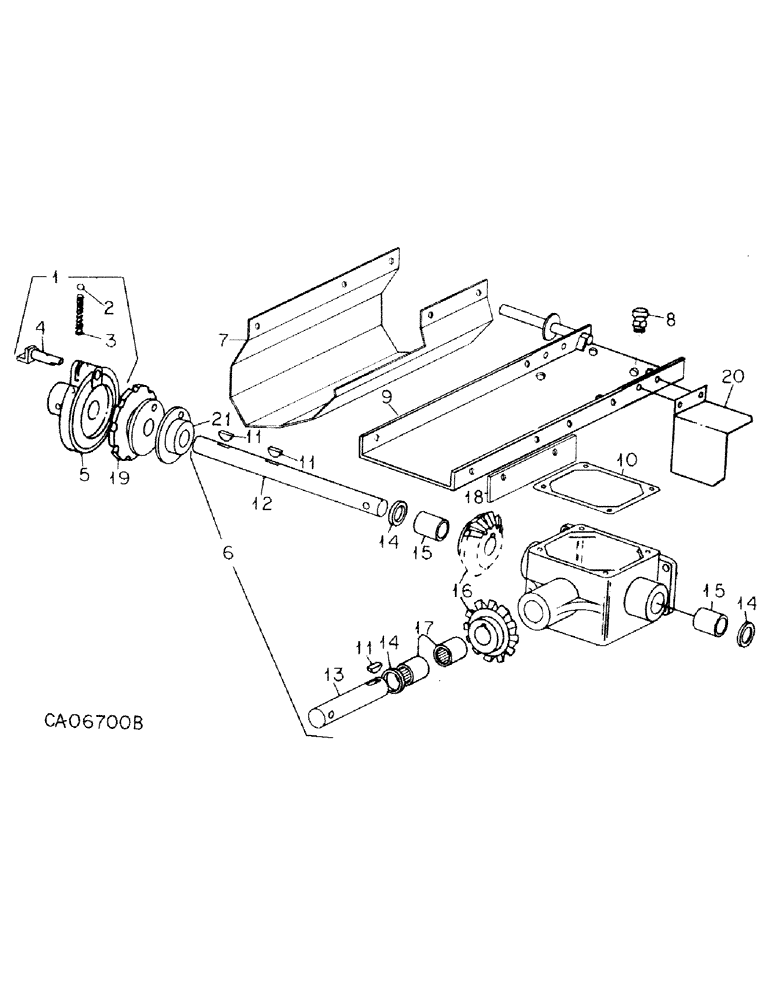

Запчасти Case IH 130 (H-05) - GEAR BOX & SAFETY CLUTCH

1

145720C1

CLUTCH

ASSY, trip, consists of ref. nos. 2 thru 5

1шт.

2

55736C1

BALL,7/32" Dia

cr-stl

1шт.

3

55871C1

SPRING

compression

1шт.

4

1281004C1

PIN

lock

1шт.

5

145719C1

CLUTCH

HOUSING, trip clutch, order clutch assy 145720C1

1шт.

6

145713C91

BOX

ASSY, gear w/cover, consists of ref. nos. 8 thru 18

1шт.

7

76516C1

SHIELD, PTO

1шт.

8

55696C1

PLUG, breather

1шт.

9

COVER, gear box, not serviced separately, order 145849C91

1шт.

10

55735C1

GASKET

gear box cover

1шт.

11

124553

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

12

145714C1

SHAFT

output

1шт.

13

55777C1

SHAFT

input

1шт.

14

697494R91

OIL SEAL

SEAL, oil

3шт.

15

55702C1

BUSHING

1 x 1-1/4 x 1-1/2

2шт.

16

55695C1

GEAR

miter

2шт.

17

550850R91

NEEDLE BEARING

1-1/4 x 1

2шт.

18

76523C1

FLAP, rubber PTO

1шт.

19

145717C1

SPROCKET ASSY.

SPROCKET, trip

1шт.

20

55883C1

GUARD, shaft

1шт.

21

145716C1

FLANGE

1шт.

280112

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

1шт.

109084

NUT,1/4"-20, G5

2шт.

145849C91

COVER ASSY

gear box, consists of ref 7, 9, & 18

1шт.
