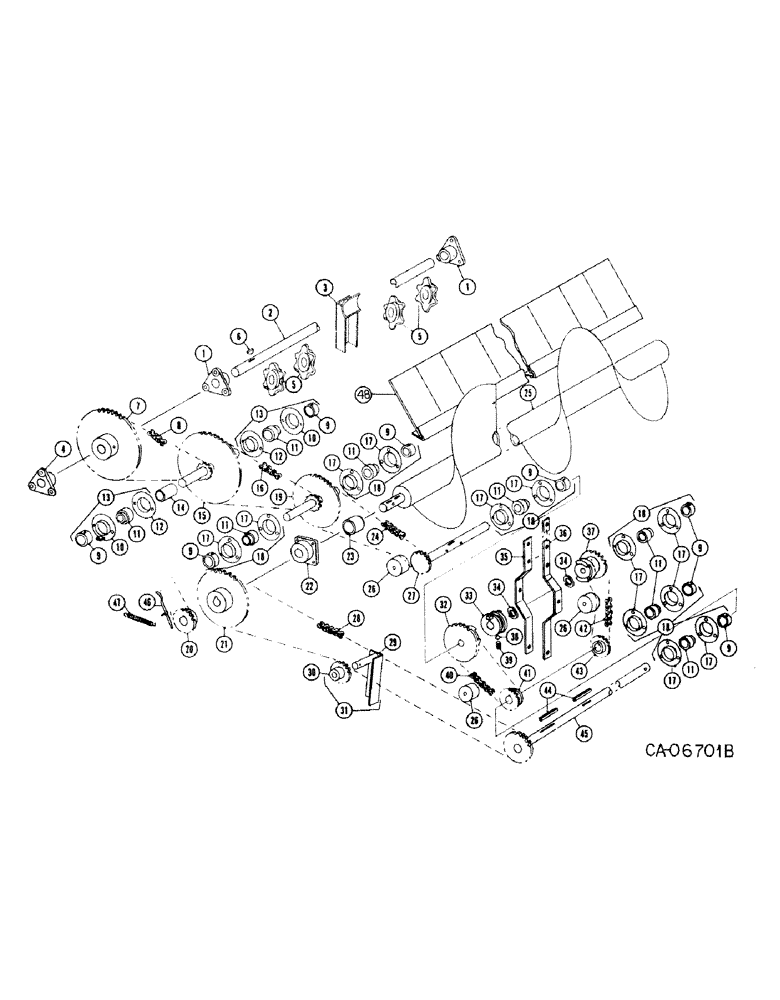

Запчасти Case IH 130 (H-03) - AUGER AND DRIVES

1

77132C1

BEARING

2шт.

2

77250C1

SHAFT, apron drive

1шт.

3

77133C1

BEARING, center weld

1шт.

4

77134C1

BEARING ASSY

ASSY, outer drive

1шт.

5

77255C1

SPROCKET, drive

4шт.

6

117992

WOODRUFF KEY,#E, 3/8" x 1 1/4", HT

KEY, 3/8 x 1-1/4 Woodruff E

4шт.

7

77135C1

SPROCKET ASSY.

SPROCKET, 60C38 1-1/2 bore

1шт.

8

CHAIN, use 49 links from 10 ft roll marked 611362R91, plus 1 conn link 574532R91

1шт.

574532R91

CLIP, SPRING

LINK, connecting

1шт.

9

455102R21

COLLAR

brg 1 in. lock

8шт.

10

55880C1

FLANGE

brg

2шт.

11

455965R92

BEARING

ball

8шт.

12

55881C1

FLANGE

brg

2шт.

13

77136C91

BEARING

2шт.

14

55897C1

SHIELD

plastic

1шт.

15

77137C1

SPROCKET ASSY.

SPROCKET

1шт.

16

CHAIN, use 63 links from 10 ft. roll marked 1791D plus 1 conn. link 1310D

1шт.

1310D

LINK

connecting

1шт.

17

462360R1

FLANGED BEARING

brg

9шт.

18

77138C91

BEARING

4шт.

19

77139C1

SPROCKET ASSY.

SPROCKET

1шт.

20

117075C1

SPROCKET ASSY.

SPROCKET, 15T

1шт.

21

55919C1

SPROCKET ASSY.

SPROCKET, auger drive

1шт.

22

815189R91

BEARING ASSY

auger ball

1шт.

23

77256C1

WASHER

1шт.

24

CHAIN, use 67 links from 10 ft. roll marked 1790D plus conn. link 1301D

1шт.

1301D

CHAIN LINK

LINK, connecting

1шт.

25

55918C1

AUGER

1шт.

26

55727C1

BOARD

TIGHTENER

3шт.

27

55895C1

SPROCKET ASSY.

SHAFT, clutch

1шт.

28

CHAIN, use 71 links from 10 ft. roll marked 1791D plus 1 conn. link 1310D

1шт.

1310D

LINK

connecting

1шт.

29

55891C1

BRACKET

idler

1шт.

30

55885C1

SPROCKET ASSY.

SPROCKET ASSY

1шт.

31

56075C1

ARM

TIGHTENER, auger

1шт.

32

55908C1

CLUTCH

RH 48T

1шт.

33

55896C1

CLUTCH

SHIFTER, clutch

1шт.

34

55887C1

BUSHING

2шт.

35

55878C1

BRACKET

half

1шт.

36

55877C1

SUPPORT

CONTROL, half

1шт.

37

55915C1

CLUTCH

LH 13T

1шт.

38

55736C1

BALL,7/32" Dia

cr-stl

1шт.

39

55886C1

SPRING

compression

1шт.

40

CHAIN, use 57 links from 10 ft. roll marked 1790D plus 1 conn. link 1301D

1шт.

1301D

CHAIN LINK

LINK, connecting

1шт.

41

55882C1

SPROCKET ASSY.

SPROCKET, cluster

1шт.

42

CHAIN, use 39 links from 10 ft. roll marked 1790D plus 1 conn. link 1301D

1шт.

1301D

CHAIN LINK

LINK, connecting

1шт.

43

55888C1

SPROCKET ASSY.

SPROCKET

1шт.

44

Q53

KEY,1/4" Sq x 1", Par

2шт.

45

55890C1

SHAFT

W/15T SPROCKET

1шт.

46

117076X1

TIGHTENER

1шт.

47

117077C1

SPRING

1шт.

48

80071C1

STRIP ASSY, rubber, serial no. 00592 and below

1шт.

48

79912C1

STRIP

rubber, serial no. 00593 and above

1шт.

48

79911C1

CHANNEL

rubber strip, serial no. 00593 and above

1шт.
