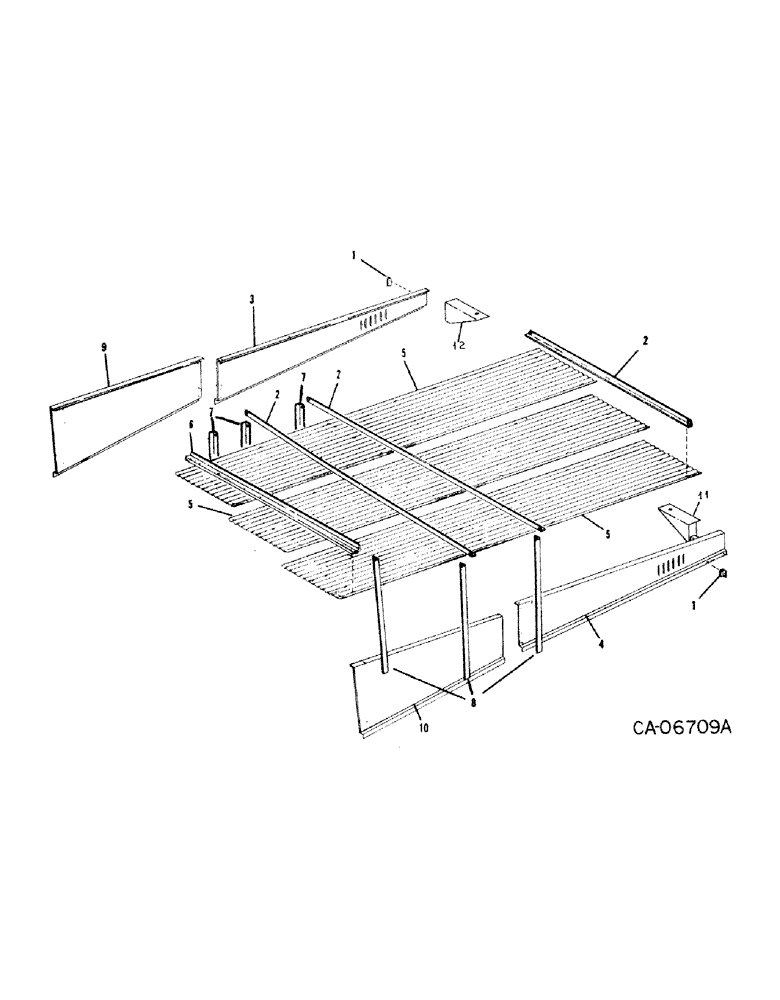

Запчасти Case IH 130 (H-14) - ROOF AND SUPPORTS

1

55660C1

BRACKET, roof pivot

2шт.

2

55678C2

BRACE, center cross, (4) 18 ft machines, (3) 15 ft machines, (3) 16 ft machines

1шт.

3

145732C1

PANEL, rear RH

1шт.

4

145731C1

PANEL, rear LH

1шт.

5

77238C1

SHEET, roof, (3) 15 ft machines

1шт.

5

77239C1

SHEET

roof, (3) 18 ft machines

1шт.

5

61868C1

SHEET, roof, (3) 16 ft machines

1шт.

6

55679C2

BRACE

front cross

1шт.

7

77240C2

SUPPORT, roof RH, (4) 18 ft machines, (3) 15 ft machines

1шт.

7

145729C1

SUPPORT, roof RH, (3) 16 ft machines

1шт.

8

77241C2

SUPPORT, roof LH, (4) 18 ft machines, (3) 15 ft machines

1шт.

8

145730C1

SUPPORT, roof LH, (3) 16 ft machines

1шт.

9

77242C1

PANEL, front RH, 15 ft machines

1шт.

9

77243C1

PANEL, front RH, 18 ft machines

1шт.

9

145735C1

PANEL, front RH, 16 ft machines

1шт.

10

77244C1

PANEL, front LH, 15 ft machines

1шт.

10

77245C1

PANEL, front LH, 18 ft machines

1шт.

10

145736C1

PANEL, front LH, 16 ft machines

1шт.

79324C91

ROOF SUPPORT KIT PARTS ACCESSORY, consists of ref nos 11 & 12

1шт.

11

1251036C1

SUPPORT

ASSY, LH roof

1шт.

12

1251037C1

SUPPORT ASSY, RH roof

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4 type 5

2шт.

180130

BOLT,Hex, 3/8" - 16 x 2", Gr 5

3/8 x 2 type 5

2шт.

NLS

NO LONGER SERVICED

.438 x 1.000 x .064

6шт.

9411655

LOCK NUT,3/8"-16, GB

NUT, 3/8 CAD p/t lock type 5

4шт.
