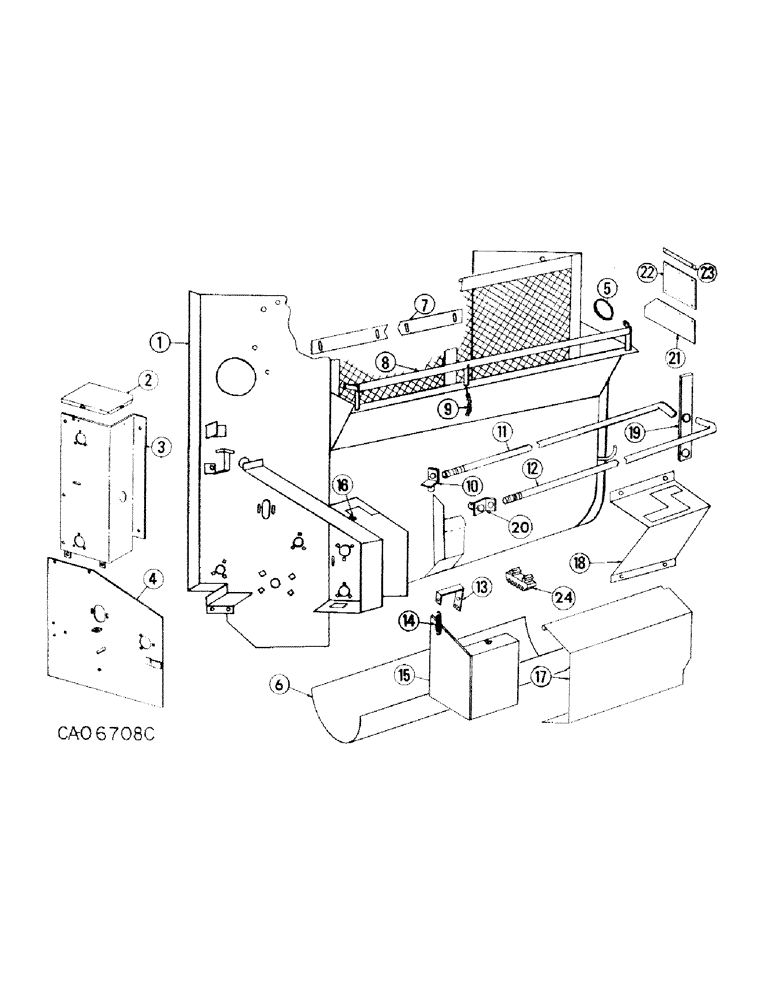

Запчасти Case IH 130 (H-10) - MAIN FRAME AND DRIVE COVER

1

77257C1

FRAME, main

1шт.

2

55911C1

COVER, beater housing

1шт.

3

55910C1

HOUSING, beater

1шт.

4

55898C1

PANEL, outer weld

1шт.

5

145745C1

CABLE, safety trip

2шт.

6

61314C1

LINING

LINER, auger trough repair, for field repairs of auger trough

1шт.

7

55773C1

BAR

auger guide

1шт.

8

77168C1

HANDLE, trip clutch

1шт.

9

56067C1

CHAIN

2шт.

10

145724C1

BRACKET, clutch control rod

2шт.

11

77169C1

ROD, beater clutch

1шт.

12

77170C1

ROD, apron clutch control

1шт.

13

1281005C1

BAR

trip

1шт.

14

77259C1

SPRING

1шт.

15

77171C1

COVER, drive

1шт.

16

77260C1

LATCH

2шт.

17

77172C1

GUARD, frt cross shaft

1шт.

18

55763C1

PANEL, control

1шт.

19

55762C1

BRACKET

HANDLE, clutch control

1шт.

20

145784C1

BRACKET, clutch control

1шт.

21

76526C1

FLAP, metal discharge

1шт.

22

76525C1

FLAP, rubber discharge

1шт.

23

76524C1

STRIP, bolting

2шт.

24

79325C1

HOLDER, shear bolts, rubber

1шт.
