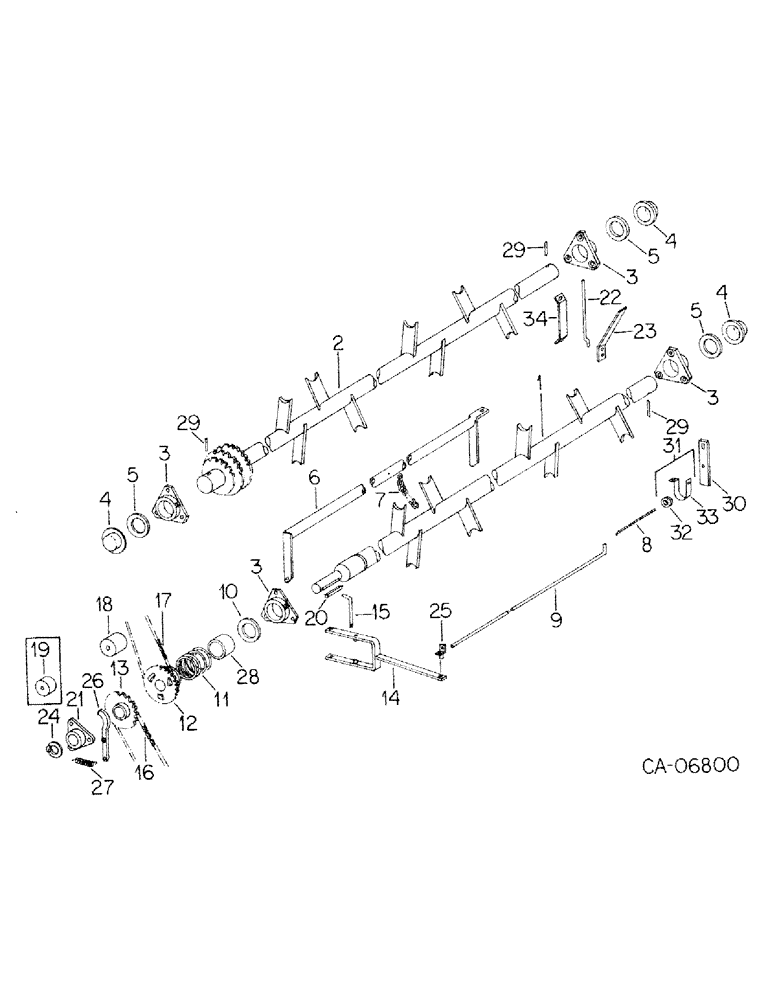

Запчасти Case IH 120 (G-06) - BEATERS AND CONNECTIONS

1

55756C2

BEATER

first

1шт.

2

55757C2

BEATER

second

1шт.

3

55765C1

FLANGE

BEARING, beater

4шт.

4

73662C91

CAP

ASSY, end, 2 in.

3шт.

5

22811R1

WASHER

2.031 x 2.750 x .067

3шт.

6

77168C1

HANDLE, trip clutch

1шт.

7

56067C1

CHAIN, safety trip

2шт.

8

145745C1

CABLE, safety pull

1шт.

9

77169C1

ROD, beater clutch control

1шт.

10

55904C1

WASHER, 1-3/4 x 2-1/2 x 14 ga

1шт.

11

55903C1

SPRING

beater clutch

1шт.

12

75407C1

DRIVE SPROCKET

SPROCKET, control

1шт.

13

75408C1

SPROCKET ASSY.

SPROCKET, idler, 20T

1шт.

14

77141C1

HANDLE

beater clutch

1шт.

15

55905C1

PIN

beater clutch pivot

1шт.

16

CHAIN, first beater drive, use eighty-three links from 10 ft roll marked, 1791D, and one connecting link, 1310D

1шт.

1310D

LINK

connecting

1шт.

17

CHAIN, second beater drive, use forty-one links from 10 ft roll marked 569089R91 and one connecting link 587372R91

1шт.

587372R91

CONNECTING LINK

LINK, connecting

1шт.

18

55909C1

BOARD

ROLLER, tightener

1шт.

19

55727C1

BOARD

ROLLER

3шт.

20

124553

WOODRUFF KEY,#15, 1/4" x 1", HT

4шт.

21

55912C1

FLANGE

BEARING, flange

1шт.

22

55723C1

ROD, support

1шт.

23

76521C1

SUPPORT, rod, bracket

1шт.

24

73663C91

COLLAR

ASSY, shaft, 1-1/4 in.

1шт.

17069R1

LOCK PIN,5/16" x 1 3/4", Slotted

Pin, 5/16" x 1 3/4", Slotted

1шт.

25

145724C1

ROD, bracket clutch control

1шт.

26

117076C1

SUPPORT

TIGHTENER

1шт.

27

117077C1

SPRING

tension

1шт.

28

75409C1

BUSHING

1шт.

29

455183R1

LOCK PIN,5/16" x 2 1/2", Slotted

Pin, 5/16" x 2 1/2", Slotted

3шт.

30

145744C1

BRACKET, insulator

1шт.

31

452461R92

CLAMP

GUIDE ASSY

1шт.

32

480475R1

GROMMET

cable

1шт.

33

452462R2

CLAMP

BRACKET, guide

1шт.

34

77151C1

BRACKET, support rod

1шт.
