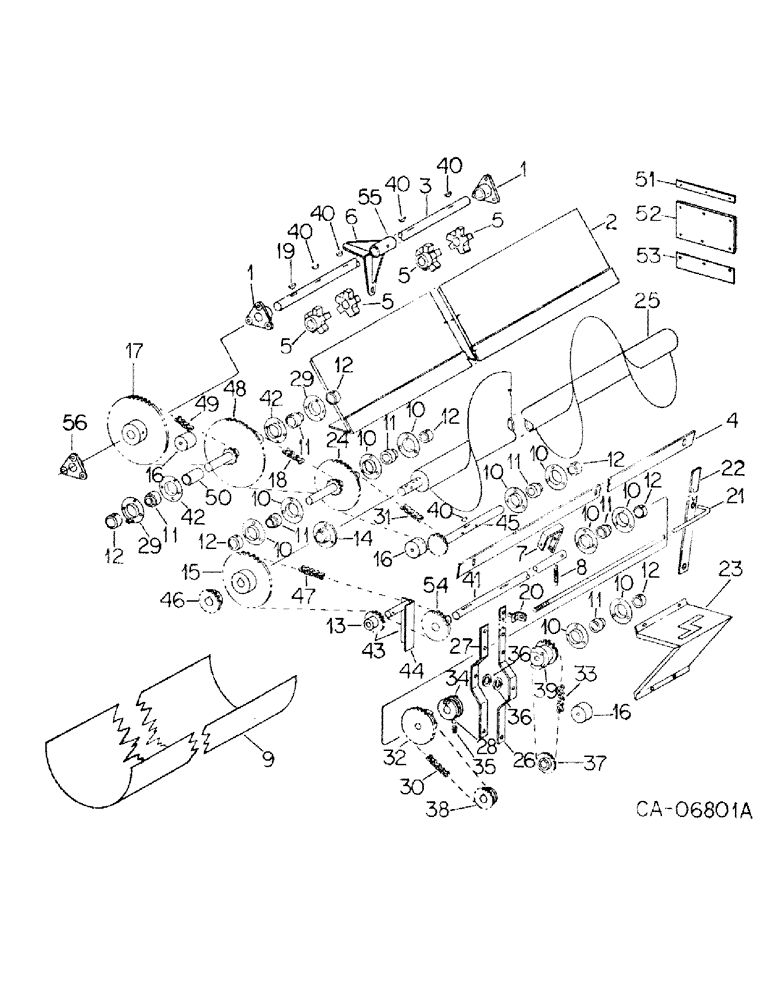

Запчасти Case IH 120 (G-03) - AUGER AND CONNECTIONS

1

55767C2

BUSHING

BEARING, 1-1/4 flange

2шт.

2

80071C1

STRIP ASSY, rubber, serial no. 06934 and below

1шт.

2

79912C1

STRIP

rubber, serial no. 06935 and above

1шт.

2

79911C1

CHANNEL

rubber strip, serial no. 06935 and above

1шт.

3

145725C1

SHAFT, drive

1шт.

4

55773C1

BAR

angle guide

1шт.

5

55768C1

SPROCKET ASSY.

SPROCKET, drive

4шт.

6

62590C1

CHANNEL

BEARING, center

1шт.

7

1281005C1

BAR

safety trip

1шт.

8

55778C1

SPRING

35 coils

1шт.

9

61314C1

LINING

LINER, auger trough repair

1шт.

10

462360R1

FLANGED BEARING

bearing

12шт.

11

204807C91

BEARING ASSY,25.4mm ID x 52mm OD x 15mm W

BEARING, less collar, ball

8шт.

12

455102R21

COLLAR

W/SET SCREW, brg locking

8шт.

13

55885C1

SPROCKET ASSY.

SPROCKET, chain tightener

1шт.

14

815189R91

BEARING ASSY

auger ball

1шт.

15

55919C1

SPROCKET ASSY.

SPROCKET, auger drive

1шт.

442864

PIN, 5/16 x 3-1/4 groove

1шт.

16

55727C1

BOARD

ROLLER

3шт.

17

55900C1

SPROCKET ASSY.

SPROCKET, 48T

1шт.

18

CHAIN, first reduction, use fifty-nine links from 10 ft roll marked, 1791D, plus one connecting link, 1310D

1шт.

1310D

LINK

connecting

1шт.

19

117992

WOODRUFF KEY,#E, 3/8" x 1 1/4", HT

KEY, 3/8 x 1-1/4 Woodruff E

1шт.

20

55759C1

BRACKET

ROD, bracket clutch control

1шт.

21

61316C1

ROD, draw clutch control, 62-1/8 in. long

1шт.

22

55762C1

BRACKET

HANDLE, clutch control

1шт.

23

55763C1

PANEL, control

1шт.

24

55917C1

SPROCKET ASSY.

SPROCKET, first reduction

1шт.

25

55918C1

AUGER

ASSY

1шт.

26

55877C1

SUPPORT

HANDLE, control

1шт.

27

55878C1

BRACKET

HANDLE, bracket

1шт.

28

55736C1

BALL,7/32" Dia

cr-stl

1шт.

29

55880C1

FLANGE

W/TAB, brg

2шт.

30

CHAIN, unload drive, use sixty-one links from 10 ft roll marked, 1790D, plus one offset link 1303D plus one connecting link, 1301D

1шт.

1303D

LINK

offset

1шт.

1301D

CHAIN LINK

LINK, connecting

1шт.

31

CHAIN, first reduction drive, use sixty-five links from 10 ft roll marked, 1790D, plus one connecting link, 1301D

1шт.

1301D

CHAIN LINK

LINK, connecting

1шт.

CHAIN, high speed unloading, consists of

1шт.

1302D

LINK

roller

1шт.

1301D

CHAIN LINK

LINK, connecting

1шт.

32

117078C1

CLUTCH

ASSY, RH, 40T

1шт.

32

55908C1

CLUTCH

ASSY, RH, 48T, optional for slower speed

1шт.

33

CHAIN, sweep unload drive, use forty-eight links from 10 ft roll marked, 1790D, plus one connecting link, 1301D

1шт.

1301D

CHAIN LINK

LINK, connecting

1шт.

34

55896C1

CLUTCH

SHIFTER, clutch

1шт.

35

55886C1

SPRING

apron jaw clutch

1шт.

36

55887C1

BUSHING

SPACER

2шт.

37

55888C1

SPROCKET ASSY.

SPROCKET, sweep

1шт.

38

55882C1

SPROCKET ASSY.

SPROCKET, clutch drive

1шт.

39

55915C1

CLUTCH

ASSY, LH, 13T

1шт.

40

124553

WOODRUFF KEY,#15, 1/4" x 1", HT

5шт.

41

145721C1

SHAFT

front cross

1шт.

42

55881C1

FLANGE

W/O TAB, brg

2шт.

43

56075C1

ARM

TIGHTENER ASSY, auger, includes ref nos 13 and 44

1шт.

44

55891C1

BRACKET

idler

1шт.

45

55895C1

SPROCKET ASSY.

SHAFT ASSY, clutch

1шт.

46

117075C1

SPROCKET ASSY.

SPROCKET, 15T

1шт.

443952

PIN, 5/16 x 3-1/2 groove

1шт.

47

CHAIN, auger drive, use seventy-one links from 10 ft roll marked, 1791D, plus one connecting link, 1310D

1шт.

1310D

LINK

connecting

1шт.

48

55894C1

SPROCKET ASSY.

SPROCKET, second reduction

1шт.

49

CHAIN, second reduction and apron drive, use fifty-nine links from 10 ft roll marked, 1791D, plus one connecting link, 1310D

1шт.

1310D

LINK

connecting

1шт.

50

55897C1

SHIELD

1шт.

51

76524C1

BAR, bolting

2шт.

52

76525C1

SHEET, rubber discharge

1шт.

53

76526C1

SHEET, metal discharge

1шт.

54

145722C1

SPROCKET ASSY.

SPROCKET

1шт.

55

62591C1

BUSHING

center bearing, 2 per bearing

1шт.

56

1281019C1

BEARING

drive shaft outer

1шт.
