(G-12) - THIRD BEATER, FEEDERS W/6 FT SIDES

Запчасти Case IH 120 (G-12) - THIRD BEATER, FEEDERS W/6 FT SIDES

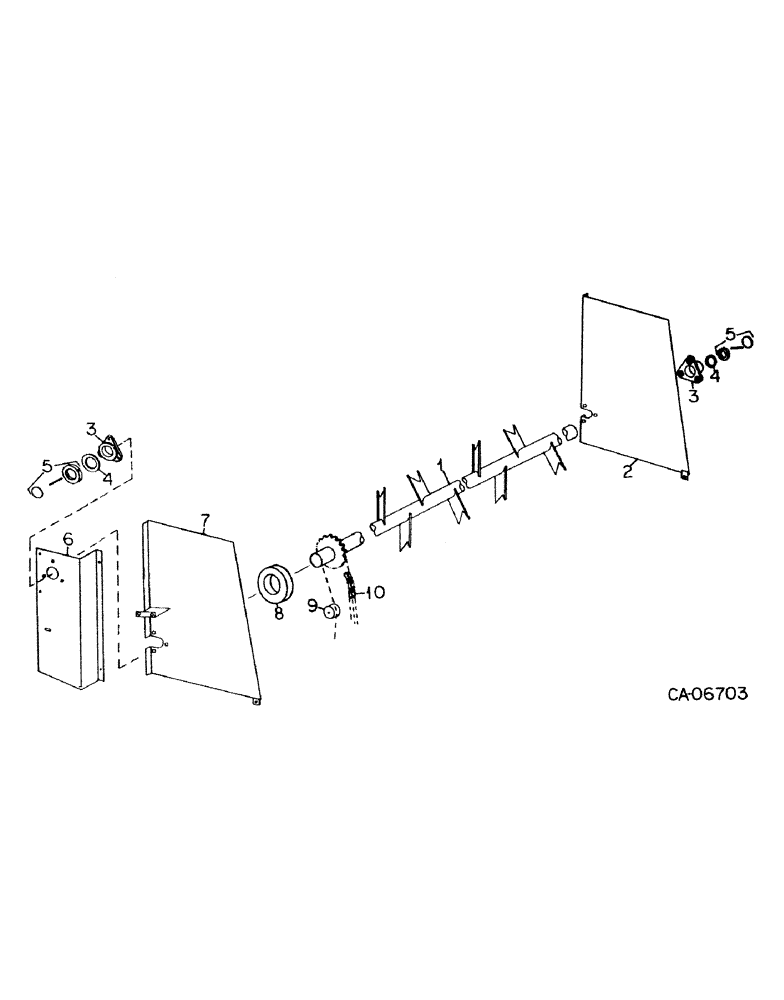

Схема запчастей Case IH 120 - (G-12) - THIRD BEATER, FEEDERS W/6 FT SIDES
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

76520C1

BEATER, third

1шт.

2

76518C2

PANEL

discharge end

1шт.

3

55765C1

FLANGE

BEARING, beater

2шт.

4

22811R1

WASHER

2.031 x 2.750 x .067

2шт.

5

73662C91

CAP

ASSY, 2 in., collar

2шт.

455183R1

LOCK PIN,5/16" x 2 1/2", Slotted

Pin, 5/16" x 2 1/2", Slotted

2шт.

6

76517C1

HOUSING, third beater support

1шт.

7

76519C2

PANEL

bearing

1шт.

8

55729C1

RING

beater

1шт.

9

55727C1

BOARD

ROLLER, tightener

1шт.

10

CHAIN, drive, use forty-nine links from 10 ft roll marked 569089R91 plus one connecting link 587372R91

1шт.

587372R91

CONNECTING LINK

LINK, connecting

1шт.
