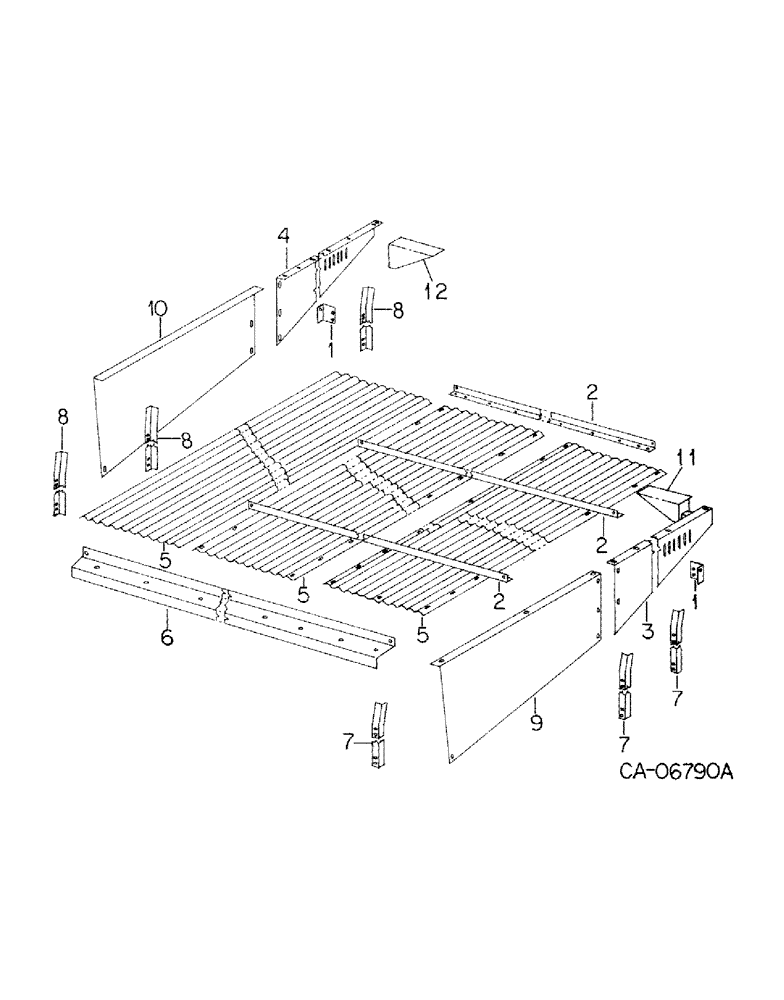

Запчасти Case IH 120 (G-11) - ROOF AND SUPPORTS, RIBBED TYPE

1

55660C1

PIVOT, roof

2шт.

2

55678C2

BRACE, center cross

3шт.

3

145731C1

PANEL, LH rear side

1шт.

4

145732C1

PANEL, RH rear side

1шт.

5

61867C1

SHEET, roof, 14 ft

3шт.

5

61868C1

SHEET, roof, 16 ft

3шт.

6

55679C2

BRACE

front cross

1шт.

7

145730C1

ANGLE, LH roof

3шт.

8

145729C1

ANGLE, RH roof

3шт.

9

145734C1

PANEL, LH front side, 14 ft

1шт.

9

145736C1

PANEL, LH front side, 16 ft

1шт.

10

145733C1

PANEL, RH front side, 14 ft

1шт.

10

145735C1

PANEL, RH front side, 16 ft

1шт.

79324C91

PARTS ACCESSORY, roof support kit, consists of ref nos 11, 12 and attaching hardware

1шт.

11

1251036C1

SUPPORT

ASSY, LH roof

1шт.

12

1251037C1

SUPPORT ASSY, RH roof

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4 type 5

2шт.

180130

BOLT,Hex, 3/8" - 16 x 2", Gr 5

3/8 x 2 type 5

2шт.

NLS

NO LONGER SERVICED

.438 x 1.000 x .064

6шт.

9411655

LOCK NUT,3/8"-16, GB

NUT, 3/8 CAD p/t lock type 5

4шт.
