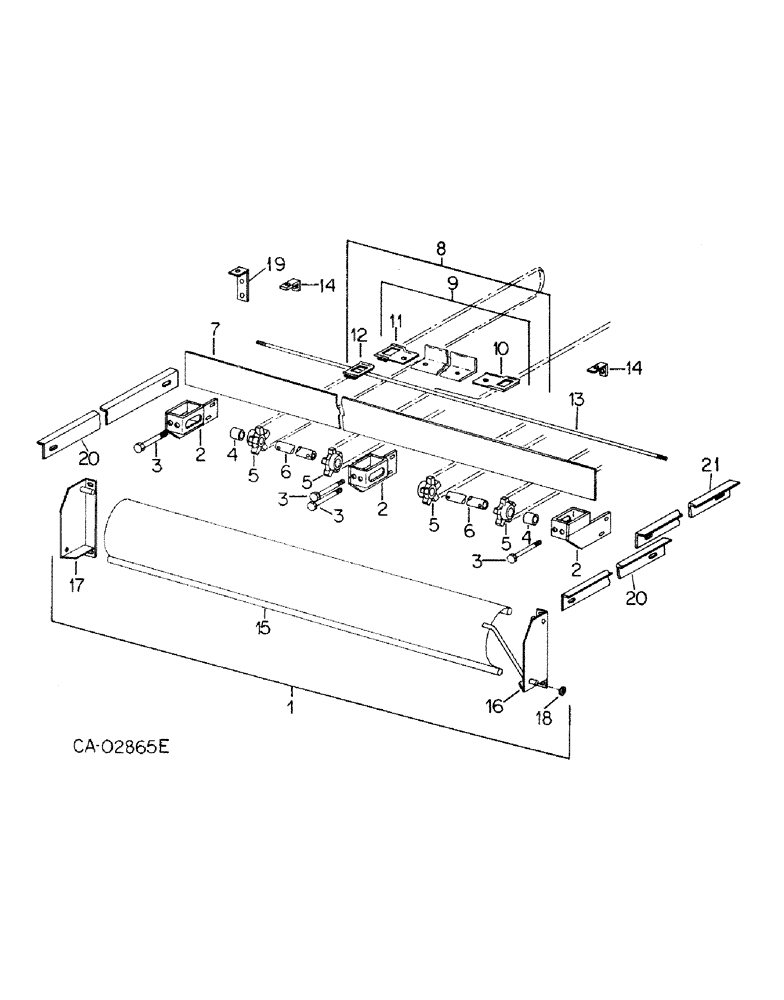

Запчасти Case IH 120 (G-10) - CONVEYOR

1

73666C91

GUARD ASSY, idler shaft

1шт.

2

76519C2

PANEL

BRACKET, idler RH

2шт.

2

145728C1

BRACKET, idler LH

1шт.

3

56062C1

SCREW

1/2-13 x 4 hex-hd cap full thd

4шт.

4

76518C2

PANEL

SPACER, 1-5/8 x 1-1/4 std

2шт.

5

56065C1

SPROCKET ASSY.

SPROCKET, idler

4шт.

6

145726C1

SHAFT

idler

2шт.

7

55720C2

STRIP

end gate rubber

1шт.

8

145741C1

CONVEYOR

ASSY, extra heavy chain, 14 ft and 16 ft machines

2шт.

8

145742C1

CONVEYOR

ASSY, extra heavy chain, 16 ft machines

2шт.

8

145738C1

CONVEYOR ASSY, hv duty chain, 14 ft machines

2шт.

8

145739C1

CONVEYOR ASSY, hv duty chain, 16 ft machines

2шт.

9

145740C1

SLAT

ASSY, hv duty, includes ref nos 10 and 11

1шт.

9

145743C1

SLAT

ASSY, extra heavy duty, includes ref nos 10 and 11

1шт.

10

67XHASR

LINK

detachable att RT extra heavy duty, 1 per slat

1шт.

10

67HASR

LINK ASSY.

LINK, detachable att RT hv duty, 1 per slat

1шт.

11

67XHASL

LINK

detachable att lt extra heavy duty, 1 per slat

1шт.

11

67HASL

LINK ASSY.

LINK, detachable att LT hv duty, 1 per slat

1шт.

12

67XH

LINK

chain extra heavy duty, 1 link from 10 ft roll marked CS67XH

1шт.

12

67H

LINK

chain hv duty, 1 link from 10 ft roll marked CS67H

1шт.

13

55718C1

ROD, tie, 6 for 14 ft, 7 for 16 ft

1шт.

14

76527C1

ANGLE, support rod, 2 for 14 ft, 4 for 16 ft

1шт.

15

73667C1

GUARD, idler shaft

1шт.

16

73668C91

PANEL ASSY, RH side

1шт.

17

73669C1

PANEL, LH side

1шт.

18

73671C1

CLIP

panel

1шт.

19

79913C1

SUPPORT, serial no. 06935 & above

3шт.

20

80144C1

ANGLE, rub, 14 ft machines

2шт.

21

80145C1

ANGLE, rub extension, 16 ft machines

2шт.
