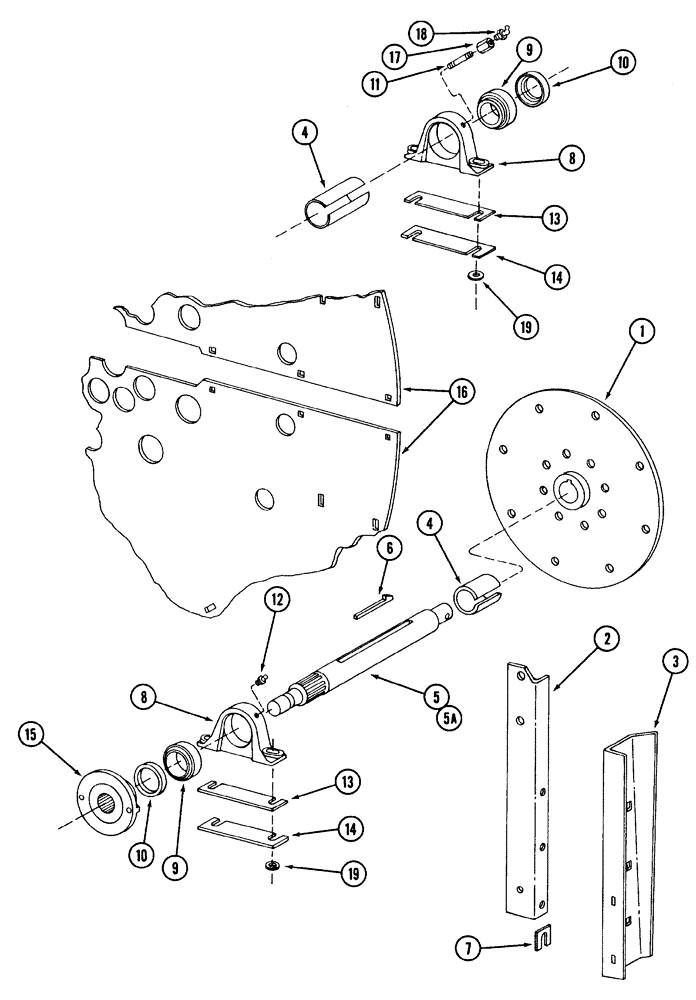

Запчасти Case IH 600 (9-10) - ROTOR, 600 BLOWER (09) - CHASSIS/ATTACHMENTS

1

143693C1

HUB

- rotor

1шт.

2

143746C1

ANGLE

- rotor

8шт.

414-1236

BOLT,Hex, 3/4" - 16 x 2-1/4", Gr 5

- hex, 3/4 NF x 2-1/4 inch

16шт.

131-225

LOCK NUT,3/4"-16

NUT - hex, self-locking, 3/4 inch NF

16шт.

174608C2

BOLT,Hex, 3/8" - 16 x 1 1/2"

- hex, special, 3/8 NC x 1-1/2 inch

6шт.

231-4206

LOCK NUT,Hex, 3/8"-16, GB

NUT, LOCK, Hex, 3/8"-16, GB

6шт.

495-81143

WASHER,13/32" x 1 1/2" x .120"

3шт.

3

135251C1

HALF BLADE

BLADE - rotor

8шт.

434-1024

CARRIAGE BOLT,Sht Sq Nk, 5/8" - 11 x 1 1/2", Gr 5

BOLT - carriage, 5/8 NC x 1-1/2 inch

24шт.

231-14410

NUT,5/8"-11, GB

NUT, LOCK, 5/8"-11, GB

24шт.

4

146103C1

SPACER

- rotor

2шт.

495-81227

WASHER,52.38mm ID x 74.63mm OD x 1.7mm Thk

- flat, 2-1/16 x 2-15/16 x 1/16 inch

1шт.

5

146110C1

SHAFT

- rotor, prior to P.I.N. CCD0005457

1шт.

5a

1978605C1

SHAFT

- rotor, P.I.N. CCD0005457 and after

1шт.

6

Q3975

KEY,Gib, 1/2" Sq x 4"

- square tapered, 1/2 x 4 inch

1шт.

7

486453R1

SHIM

- 0.010 inch thick, blade

1шт.

7

486454R1

SHIM

- 0.030 inch thick, blade

1шт.

8

146107C91

HOUSING ASSY.

BEARING - pillow block

2шт.

9

172408C91

BALL BEARING,49.21mm ID x 90mm OD x 23mm W

BEARING - without collar, rotor

2шт.

10

618032R11

COLLAR

- bearing, with set screw

2шт.

11

221-109

PIPE,Nipple, 1/8" NPT x 2"

REDUCER - pipe, 3/4 male x 1/8 inch female

1шт.

12

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

13

146108C1

BAR

- rotor bearing, 1.50 mm

1шт.

14

146109C1

BAR

- rotor bearing, 0.30 mm

1шт.

413-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

- hex, 5/8 NC x 2-1/2 inch

4шт.

396-31066

WASHER,21/32" x 1 5/16" x .188", HDN

- flat, 21/32 x 1-5/16 x 3/16 inch

4шт.

232-41110

NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

4шт.

15

146114C1

HUB

- shear bolt

1шт.

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

16

1253470C1

PLATE

- rotating back

2шт.

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - carriage, 3/8 NC x 3/4 inch

6шт.

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

6шт.

231-1446

NUT,3/8" - 16, Gr 5

NUT, LOCK, 3/8"-16, GB

6шт.

434-820

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

BOLT - carriage, 1/2 NC x 1-1/4 inch

16шт.

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

16шт.

231-1448

NUT,1/2"-13, GB

- hex, self-locking, 1/2 inch NC

16шт.

17

105408

COUPLING,1/8" NPT

- pipe, 1/8 inch

1шт.

18

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 65 degree, 1/8 PT x 7/8 inch

1шт.

19

116991C1

WASHER

- flat, 11/16 x 1-3/4 x 3/16 inch, hardened

4шт.
