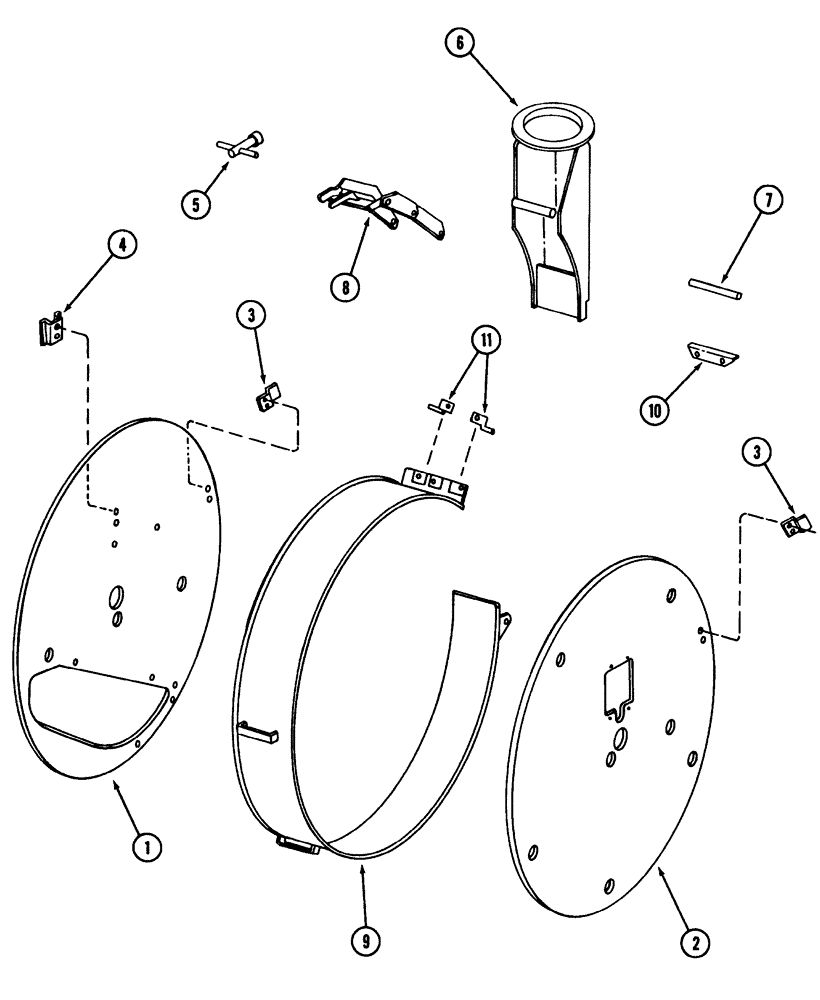

Запчасти Case IH 600 (9-06) - ROTOR HOUSING, 600 BLOWER (09) - CHASSIS/ATTACHMENTS

1

1265727C1

SHEET ASSY.

PLATE - rotor, rear

1шт.

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

4шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

2

135254C1

PLATE

- rotor, front

1шт.

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

8шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

8шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

3

148249C1

SUPPORT

- retaining

2шт.

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 NC x 3/4 inch

4шт.

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

4шт.

4

A59457

BRACKET

- mounting, SMV

1шт.

412-58

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT - carriage, 5/16 NC x 1/2 inch, grade 2

2шт.

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

5

483377R92

NUT

- scroll adjusting

1шт.

6

143727C1

CHUTE ASSY.

CHUTE - blower

1шт.

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - carriage, 3/8 NC x 3/4 inch

2шт.

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

2шт.

425-106

NUT,3/8"-16, Cl 5

2шт.

492-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

7

60486C1

PIN

- hinge

1шт.

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

1шт.

8

143732C1

BASE

- transition

1шт.

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch

2шт.

231-5146

FLANGE NUT,3/8"-16

2шт.

27711R1

PIN - dowel, 7/16 x 2-3/4 inch, hardened, no longer available

1шт.

9

148113C1

BAND

- rotor housing

1шт.

10

1265719C1

ANGLE

- transition air

1шт.

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - carriage, 3/8 NC x 3/4 inch

2шт.

425-106

NUT,3/8"-16, Cl 5

2шт.

492-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

11

1265720C1

SUPPORT

- front

1шт.

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch

1шт.

231-5146

FLANGE NUT,3/8"-16

1шт.

11

1265721C1

SUPPORT

- rear

1шт.

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch

1шт.

231-5146

FLANGE NUT,3/8"-16

1шт.
