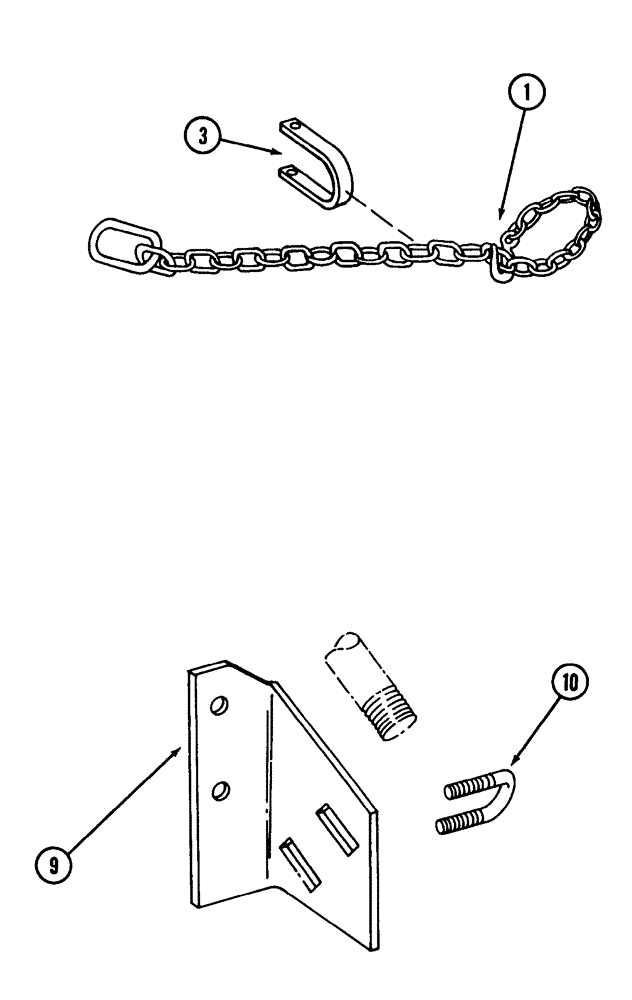

Запчасти Case IH 600 (9-58) - ATTACHMENTS, 600 BLOWER (09) - CHASSIS/ATTACHMENTS

1

700705598

CHAIN (CE)

CHAIN - 5/16 link x 59-1/4 inch long, replaces 100682C3 chain

1шт.

61913C92

PACKAGE

KIT - clevis

1шт.

3

1279163C1

CLEVIS COUPLING

CLEVIS - chain

1шт.

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

1шт.

231-14010

LOCK NUT,5/8"-11, GB

NUT - hex, self-locking, 5/8 inch NC

1шт.

413-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

- hex, 3/4 NC x 2-3/4 inch

1шт.

495-81047

WASHER,25/32" x 2" x .179"

- flat, 25/32 x 2 x 11/64 inch

1шт.

231-14412

LOCK NUT,3/4"-10, GB

NUT - hex, self-locking, 3/4 inch NC

1шт.

1281380C91

PACKAGE

KIT - water hose bracket

1шт.

9

NSS

NOT SOLD SEPARAT

BRACKET - hose

1шт.

10

620629R1

BOLT,U, 5/16" x 1 7/16"

U-BOLT - 5/16 inch NC

1шт.

95-11034

WASHER,1/4"

- flat, 11/32 x 11/16 x 1/16 inch

2шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

425-145

JAM NUT,Jam, 5/16"-18, G5

2шт.
